Century Spring

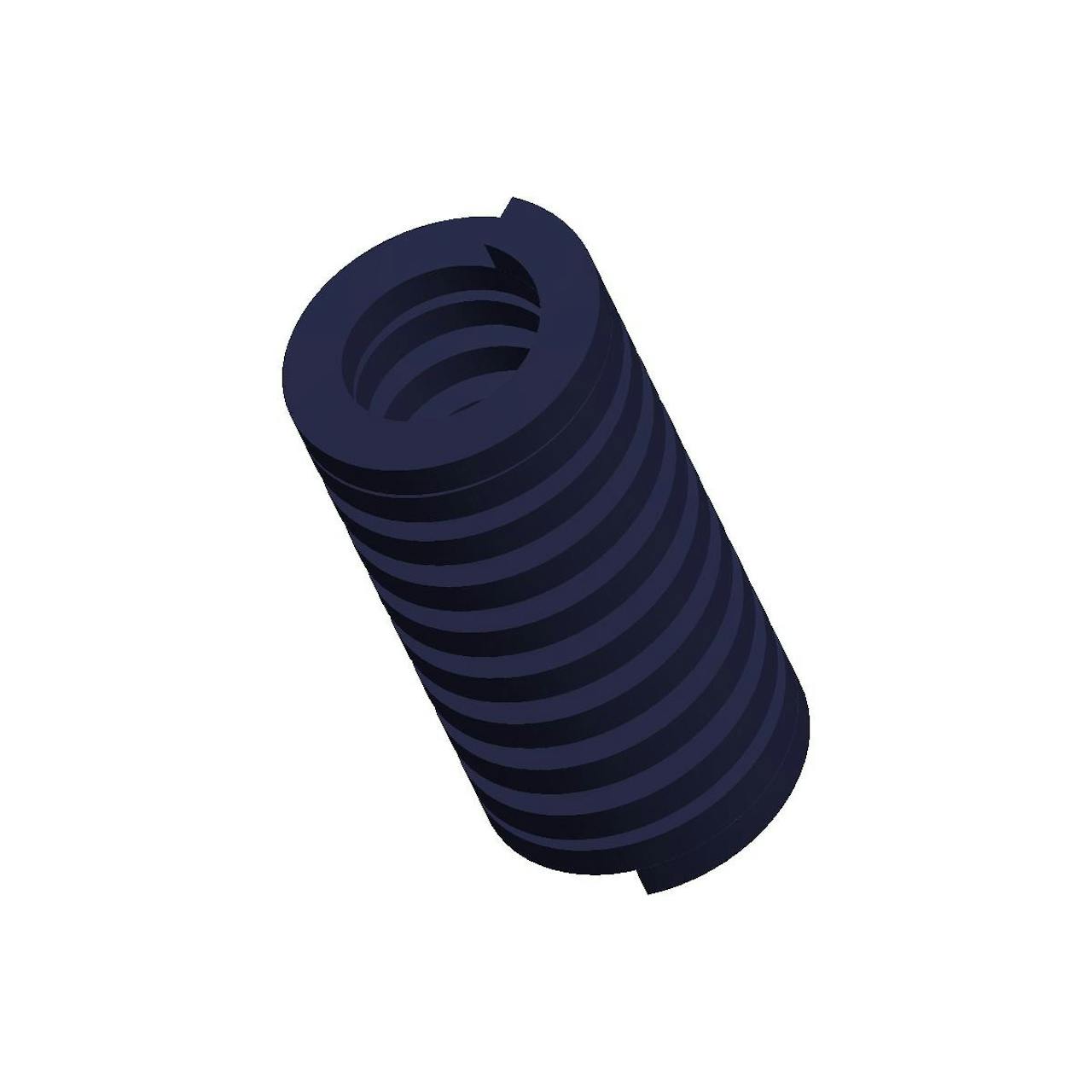

D-1116CS - 1.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 65 lb
Brand Century Spring
Deflection For Average Life 0.6 in
Deflection For Long Life 0.38 in
Display Name D-1116
Duty Load Light
Finish None
Finish Color Blue
Free Length 1.5 in
Hole Size 0.625 in
Long Life Deflection Force 41 lb
Material Chrome Alloy
Maximum Deflection 0.75 in
Maximum Deflection Force 81 lb
Measurement Units Standard
Rate 108 lbs/in
Rod Size 0.3428 in
SKU D-1116CS
Wire Diameter 0.109 in x 0.069 in
Specs (in metric)
Label Value
Average Life Deflection Force 29.48 kg
Brand Century Spring
Deflection For Average Life 15.24 mm
Deflection For Long Life 9.65 mm
Display Name D-1116
Duty Load Light
Finish None
Finish Color Blue
Free Length 38.1 mm
Hole Size 15.88 mm
Long Life Deflection Force 18.59 kg
Material Chrome Alloy
Maximum Deflection 19.05 mm
Maximum Deflection Force 36.73 kg
Measurement Units Standard
Rate 18.91 N/mm
Rod Size 8.71 mm
SKU D-1116CS
Wire Diameter 2.77 mm x 1.75 mm
