Century Spring

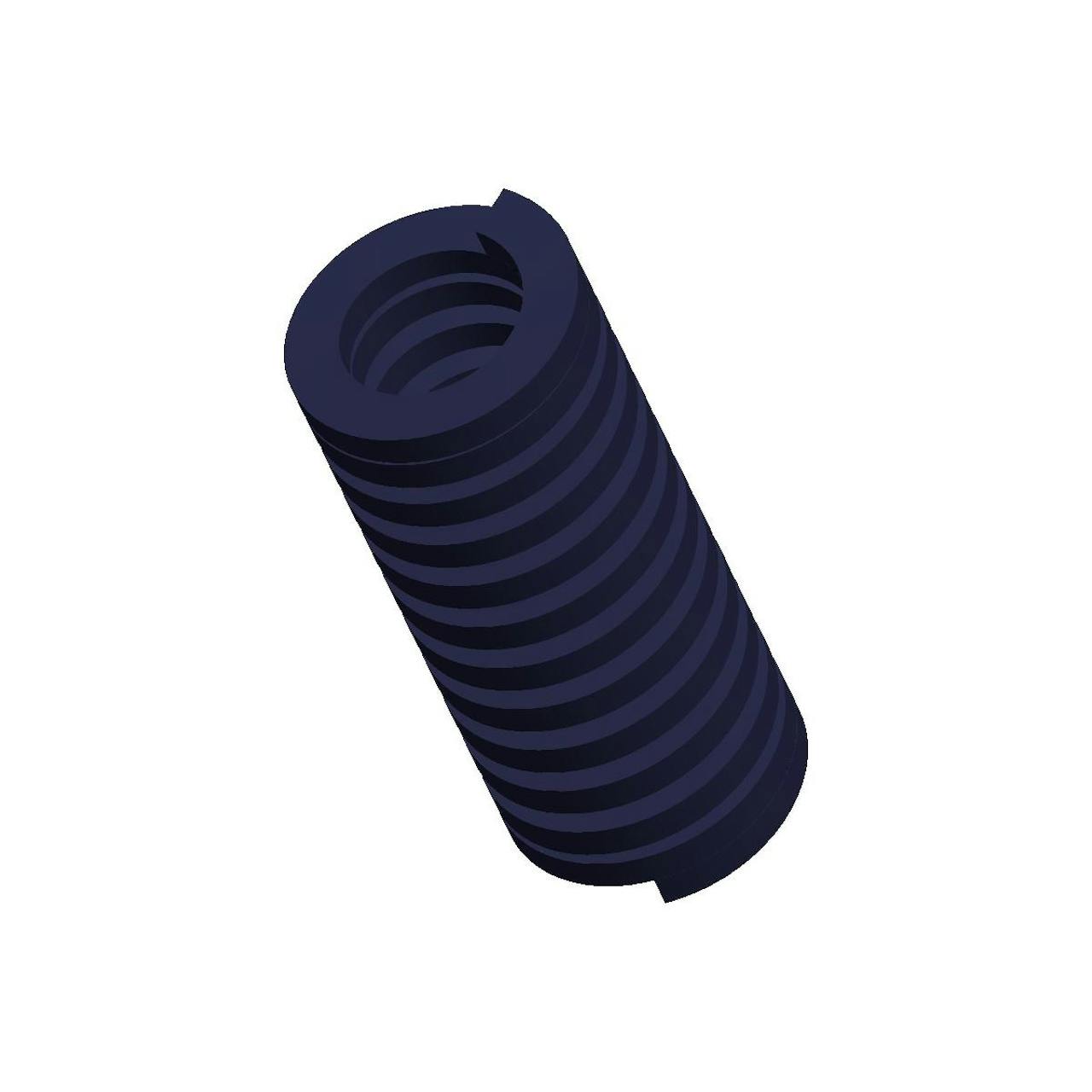

D-1116-ACS - 1.75 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1.75 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 67 lb
Brand Century Spring
Deflection For Average Life 0.7 in
Deflection For Long Life 0.44 in
Display Name D-1116-A
Duty Load Light
Finish None
Finish Color Blue
Free Length 1.75 in
Hole Size 0.625 in
Long Life Deflection Force 42 lb
Material Chrome Alloy
Maximum Deflection 0.88 in
Maximum Deflection Force 84 lb
Measurement Units Standard
Rate 96 lbs/in
Rod Size 0.3428 in
SKU D-1116-ACS
Wire Diameter 0.109 in x 0.069 in
Specs (in metric)
Label Value
Average Life Deflection Force 30.39 kg
Brand Century Spring
Deflection For Average Life 17.78 mm
Deflection For Long Life 11.18 mm
Display Name D-1116-A
Duty Load Light
Finish None
Finish Color Blue
Free Length 44.45 mm
Hole Size 15.88 mm
Long Life Deflection Force 19.05 kg
Material Chrome Alloy
Maximum Deflection 22.35 mm
Maximum Deflection Force 38.1 kg
Measurement Units Standard
Rate 16.81 N/mm
Rod Size 8.71 mm
SKU D-1116-ACS
Wire Diameter 2.77 mm x 1.75 mm
