Century Spring

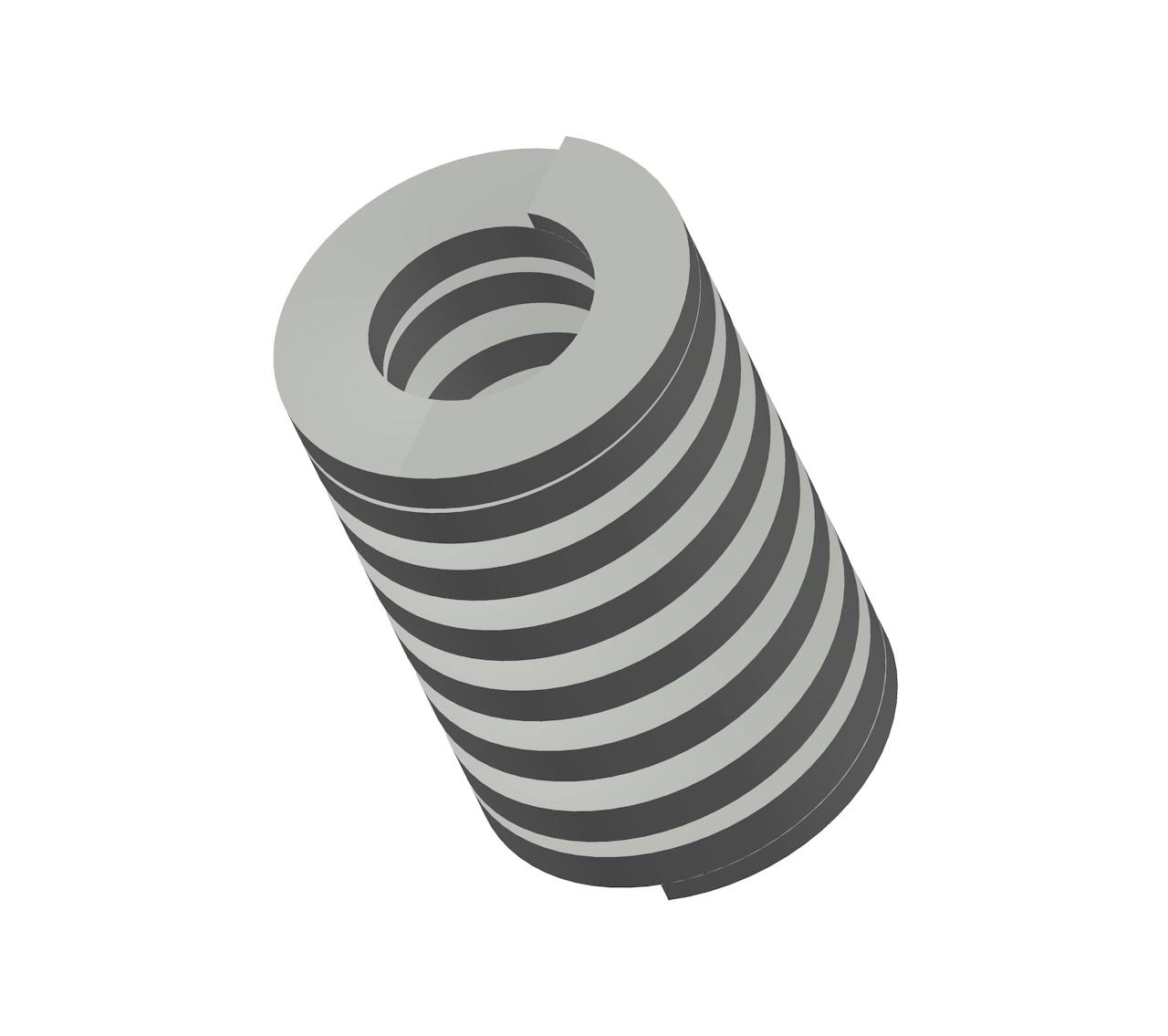

D-110CS - 3 Inch Oil Tempered Die Spring

Inventory Status
Estimated Lead Time

3 Inch Oil Tempered die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 930 lb
Brand Century Spring
Deflection For Average Life 0.75 in
Display Name D-110
Duty Load Medium
Finish None
Free Length 3 in
Hole Size 2 in
Material Oil Tempered
Maximum Deflection 1.2 in
Maximum Deflection Force 1488 lb
Measurement Units Standard
Rate 1240 lbs/in
Rod Size 1 in
SKU D-110CS
Wire Diameter 0.438 in x 0.219 in
Specs (in metric)
Label Value
Average Life Deflection Force 421.77 kg
Brand Century Spring
Deflection For Average Life 19.05 mm
Display Name D-110
Duty Load Medium
Finish None
Free Length 76.2 mm
Hole Size 50.8 mm
Material Oil Tempered
Maximum Deflection 30.48 mm
Maximum Deflection Force 674.83 kg
Measurement Units Standard
Rate 217.12 N/mm
Rod Size 25.4 mm
SKU D-110CS
Wire Diameter 11.13 mm x 5.56 mm
