Century Spring

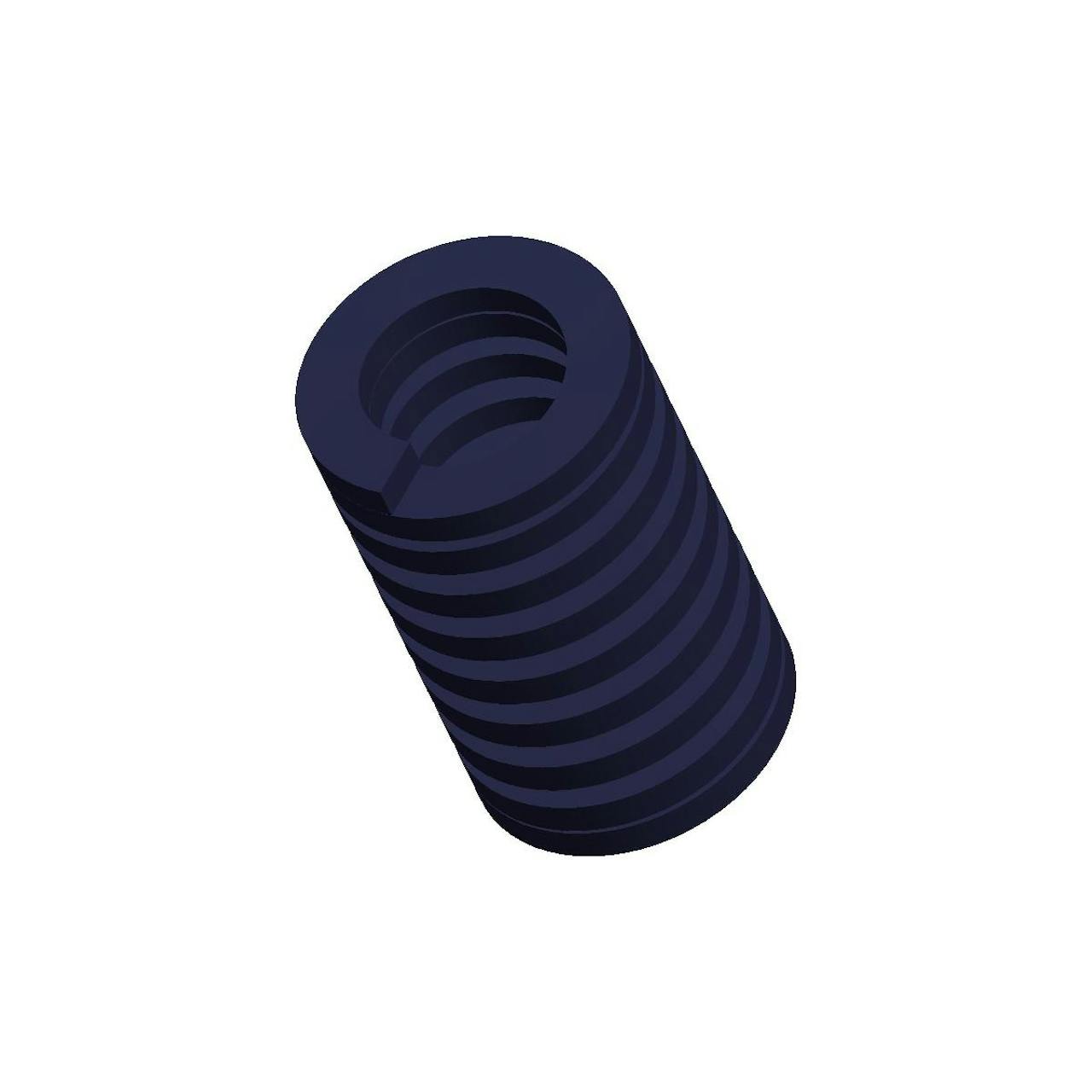

D-1107CS - 1 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

1 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 40 lb
Brand Century Spring
Deflection For Average Life 0.4 in
Deflection For Long Life 0.25 in
Display Name D-1107
Duty Load Light
Finish None
Finish Color Blue
Free Length 1 in
Hole Size 0.5 in
Long Life Deflection Force 25 lb
Material Chrome Alloy
Maximum Deflection 0.5 in
Maximum Deflection Force 50 lb
Measurement Units Standard
Rate 100 lbs/in
Rod Size 0.2813 in
SKU D-1107CS
Wire Diameter 0.093 in x 0.052 in
Specs (in metric)
Label Value
Average Life Deflection Force 18.14 kg
Brand Century Spring
Deflection For Average Life 10.16 mm
Deflection For Long Life 6.35 mm
Display Name D-1107
Duty Load Light
Finish None
Finish Color Blue
Free Length 25.4 mm
Hole Size 12.7 mm
Long Life Deflection Force 11.34 kg
Material Chrome Alloy
Maximum Deflection 12.7 mm
Maximum Deflection Force 22.68 kg
Measurement Units Standard
Rate 17.51 N/mm
Rod Size 7.15 mm
SKU D-1107CS
Wire Diameter 2.36 mm x 1.32 mm
