Century Spring

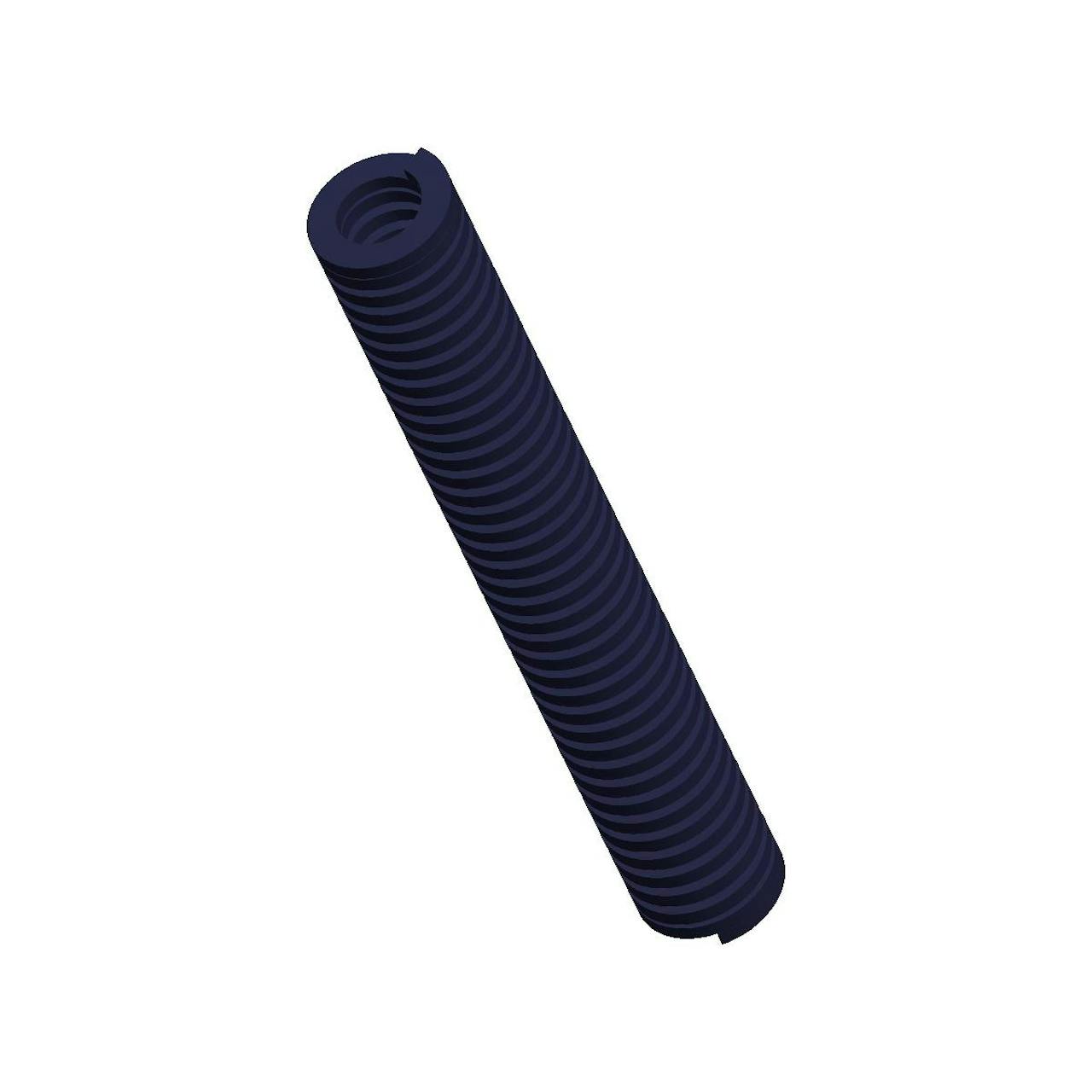

D-1106CS - 3 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

3 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 22 lb
Brand Century Spring
Deflection For Average Life 1.2 in
Deflection For Long Life 0.75 in
Display Name D-1106
Duty Load Light
Finish None
Finish Color Blue
Free Length 3 in
Hole Size 0.375 in
Long Life Deflection Force 14 lb
Material Chrome Alloy
Maximum Deflection 1.5 in
Maximum Deflection Force 27 lb
Measurement Units Standard
Rate 18 lbs/in
Rod Size 0.1875 in
SKU D-1106CS
Wire Diameter 0.07 in x 0.039 in
Specs (in metric)
Label Value
Average Life Deflection Force 9.98 kg
Brand Century Spring
Deflection For Average Life 30.48 mm
Deflection For Long Life 19.05 mm
Display Name D-1106
Duty Load Light
Finish None
Finish Color Blue
Free Length 76.2 mm
Hole Size 9.53 mm
Long Life Deflection Force 6.35 kg
Material Chrome Alloy
Maximum Deflection 38.1 mm
Maximum Deflection Force 12.24 kg
Measurement Units Standard
Rate 3.15 N/mm
Rod Size 4.76 mm
SKU D-1106CS
Wire Diameter 1.78 mm x 0.99 mm
