Century Spring

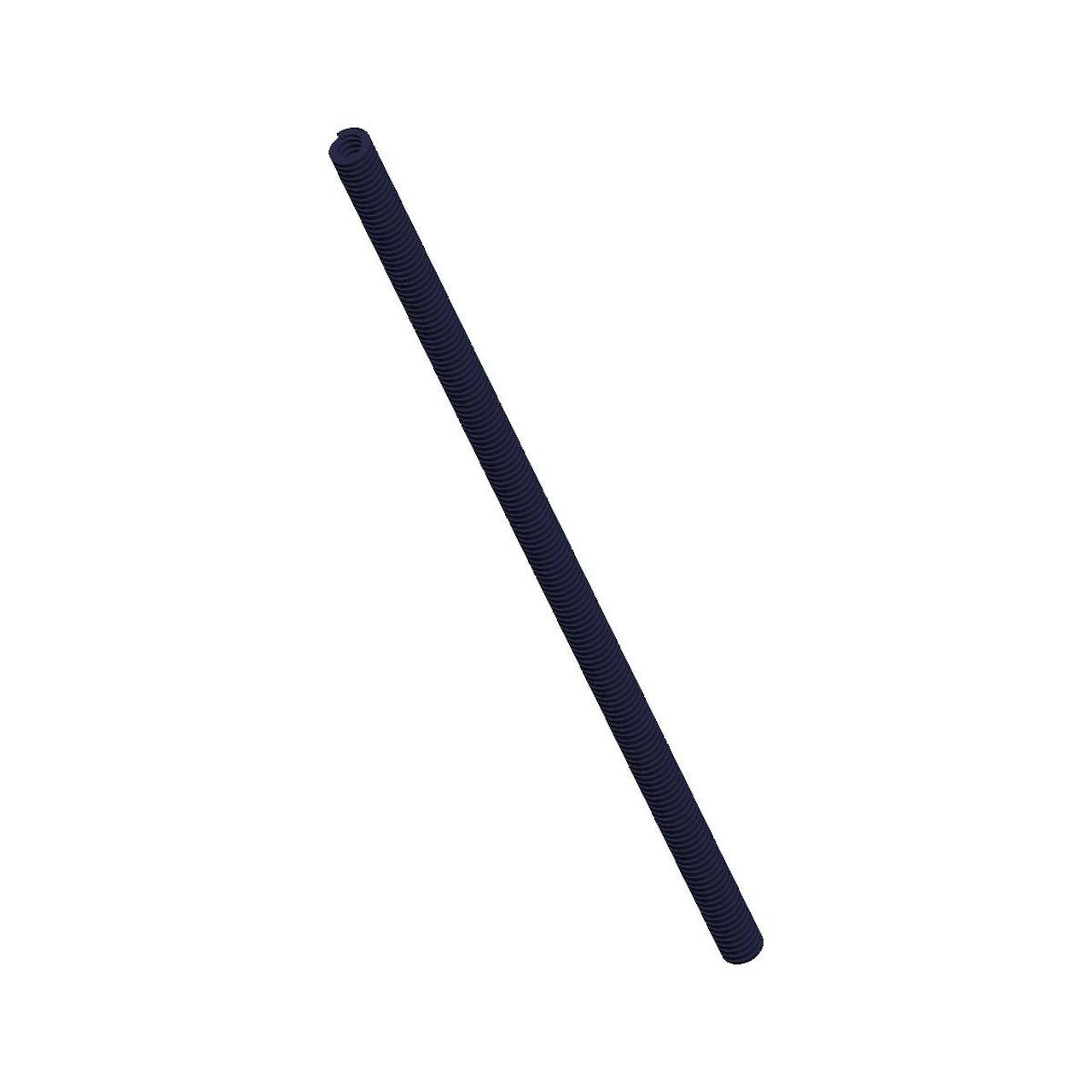

D-1106-ACS - 12 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

12 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 29 lb
Brand Century Spring
Deflection For Average Life 4.8 in
Deflection For Long Life 3 in
Display Name D-1106-A
Duty Load Light
Finish None
Finish Color Blue
Free Length 12 in
Hole Size 0.375 in
Long Life Deflection Force 18 lb
Material Chrome Alloy
Maximum Deflection 6 in
Maximum Deflection Force 36 lb
Measurement Units Standard
Rate 6 lbs/in
Rod Size 0.1875 in
SKU D-1106-ACS
Wire Diameter 0.07 in x 0.039 in
Specs (in metric)
Label Value
Average Life Deflection Force 13.15 kg
Brand Century Spring
Deflection For Average Life 121.92 mm
Deflection For Long Life 76.2 mm
Display Name D-1106-A
Duty Load Light
Finish None
Finish Color Blue
Free Length 304.8 mm
Hole Size 9.53 mm
Long Life Deflection Force 8.16 kg
Material Chrome Alloy
Maximum Deflection 152.4 mm
Maximum Deflection Force 16.33 kg
Measurement Units Standard
Rate 1.05 N/mm
Rod Size 4.76 mm
SKU D-1106-ACS
Wire Diameter 1.78 mm x 0.99 mm
