Century Spring

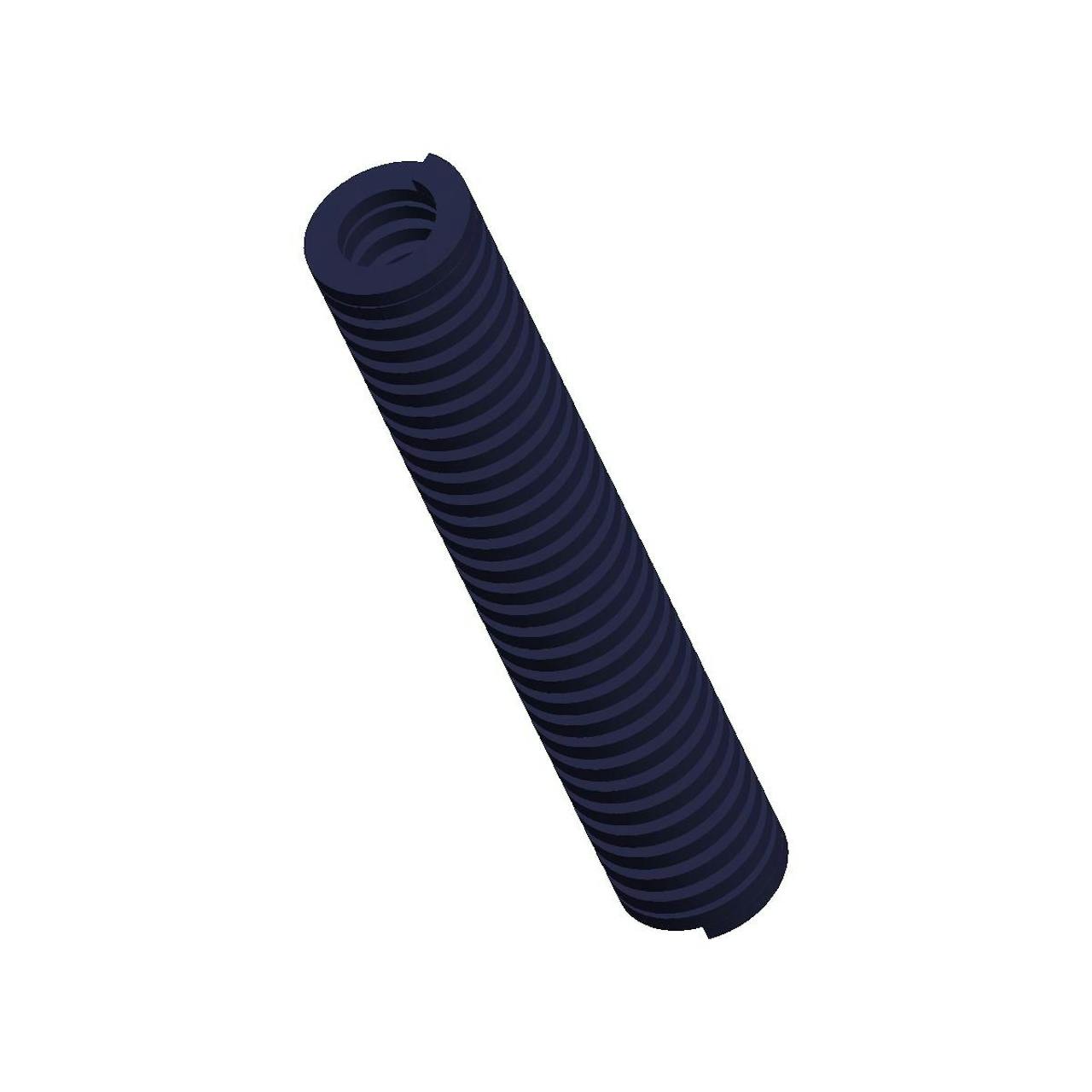

D-1105CS - 2.5 Inch Chrome Alloy Die Spring

Inventory Status
Estimated Lead Time

2.5 Inch Chrome Alloy die spring

Download CAD
Unit System
Specs (in standard)
Label Value
Average Life Deflection Force 24 lb
Brand Century Spring
Deflection For Average Life 1 in
Deflection For Long Life 0.63 in
Display Name D-1105
Duty Load Light
Finish None
Finish Color Blue
Free Length 2.5 in
Hole Size 0.375 in
Long Life Deflection Force 15 lb
Material Chrome Alloy
Maximum Deflection 1.25 in
Maximum Deflection Force 30 lb
Measurement Units Standard
Rate 24 lbs/in
Rod Size 0.1875 in
SKU D-1105CS
Wire Diameter 0.07 in x 0.039 in
Specs (in metric)
Label Value
Average Life Deflection Force 10.88 kg
Brand Century Spring
Deflection For Average Life 25.4 mm
Deflection For Long Life 16 mm
Display Name D-1105
Duty Load Light
Finish None
Finish Color Blue
Free Length 63.5 mm
Hole Size 9.53 mm
Long Life Deflection Force 6.8 kg
Material Chrome Alloy
Maximum Deflection 31.75 mm
Maximum Deflection Force 13.61 kg
Measurement Units Standard
Rate 4.2 N/mm
Rod Size 4.76 mm
SKU D-1105CS
Wire Diameter 1.78 mm x 0.99 mm
