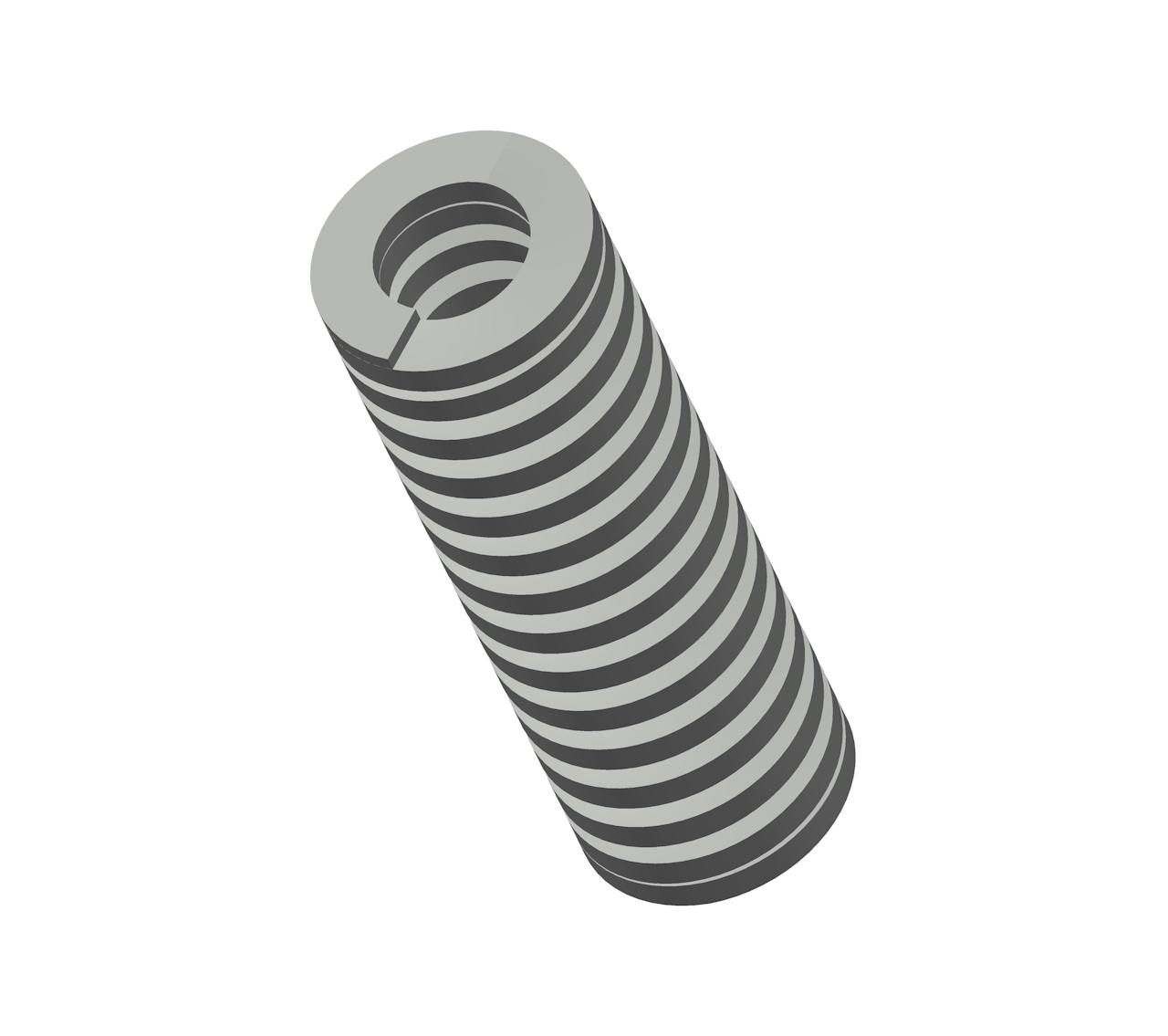

D-105CS - 5 Inch Oil Tempered Die Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
5 Inch Oil Tempered die spring
| Label | Value |
|---|---|
| Average Life Deflection Force | 610 lb |
| Brand | Century Spring |
| Deflection For Average Life | 1.25 in |
| Display Name | D-105 |
| Duty Load | Medium |
| Finish | None |
| Free Length | 5 in |
| Hole Size | 1.75 in |
| Material | Oil Tempered |
| Maximum Deflection | 2 in |
| Maximum Deflection Force | 976 lb |
| Measurement Units | Standard |
| Rate | 488 lbs/in |
| Rod Size | 0.875 in |
| SKU | D-105CS |
| Wire Diameter | 0.375 in x 0.188 in |
| Label | Value |
|---|---|
| Average Life Deflection Force | 276.64 kg |
| Brand | Century Spring |
| Deflection For Average Life | 31.75 mm |
| Display Name | D-105 |
| Duty Load | Medium |
| Finish | None |
| Free Length | 127 mm |
| Hole Size | 44.45 mm |
| Material | Oil Tempered |
| Maximum Deflection | 50.8 mm |
| Maximum Deflection Force | 442.63 kg |
| Measurement Units | Standard |
| Rate | 85.45 N/mm |
| Rod Size | 22.23 mm |
| SKU | D-105CS |
| Wire Diameter | 9.53 mm x 4.78 mm |
