Century Spring

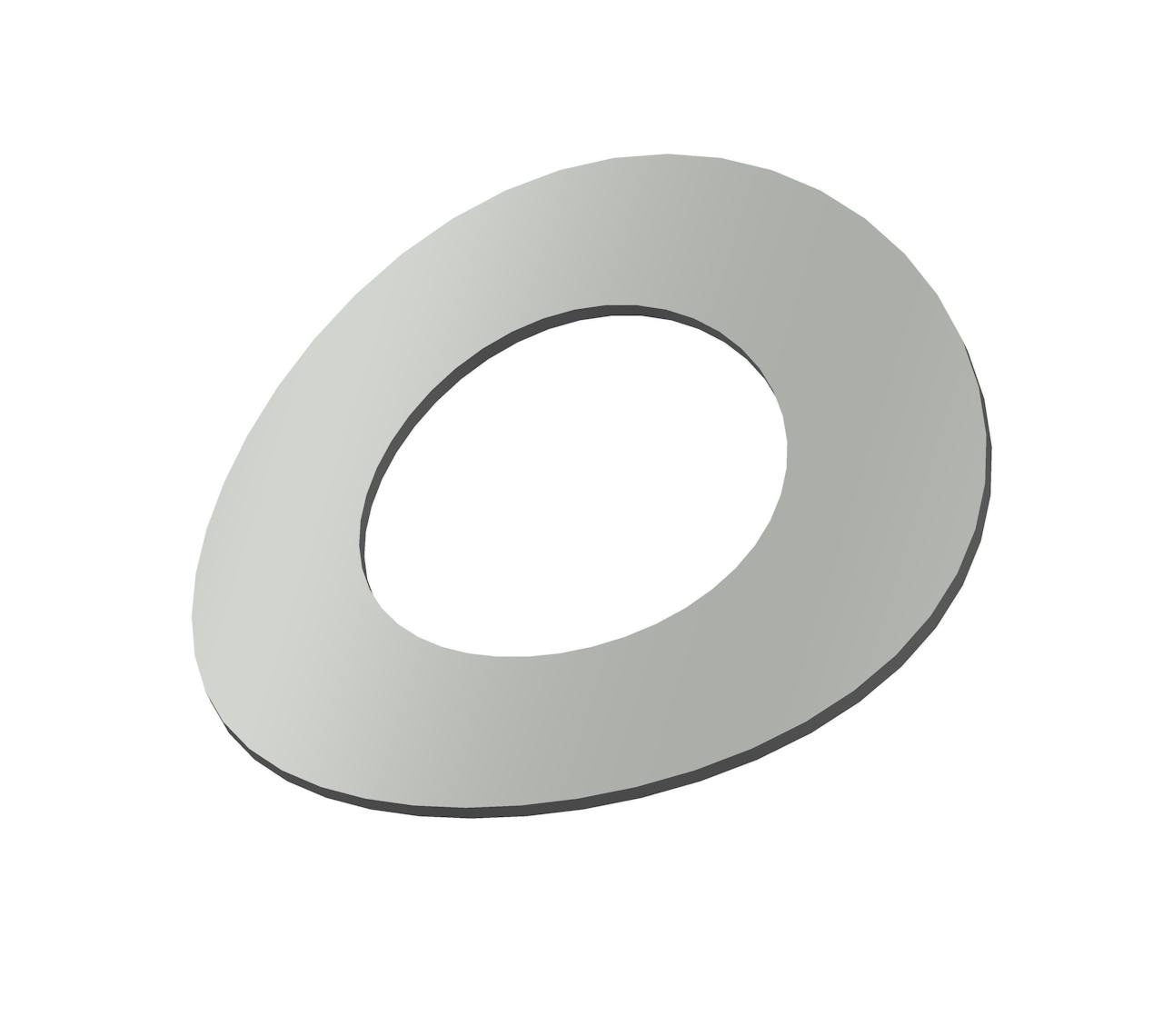

CRV-26192CS - 0.462 Inch ID 0.857 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.462 Inch and an outside diameter of 0.857 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 7/16
Brand Century Spring
Calculated Load at Approximate Deflection 15 lb
Deflection 0.043 in
Display Name CRV-26192
Finish None
Inside Diameter 0.462 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.857 in
Outside Height 0.1 in
SKU CRV-26192CS
T 0.018 in
Specs (in metric)
Label Value
Bolt Size 7/16
Brand Century Spring
Calculated Load at Approximate Deflection 6.8 kg
Deflection 1.09 mm
Display Name CRV-26192
Finish None
Inside Diameter 11.73 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 21.77 mm
Outside Height 2.54 mm
SKU CRV-26192CS
T 0.46 mm
