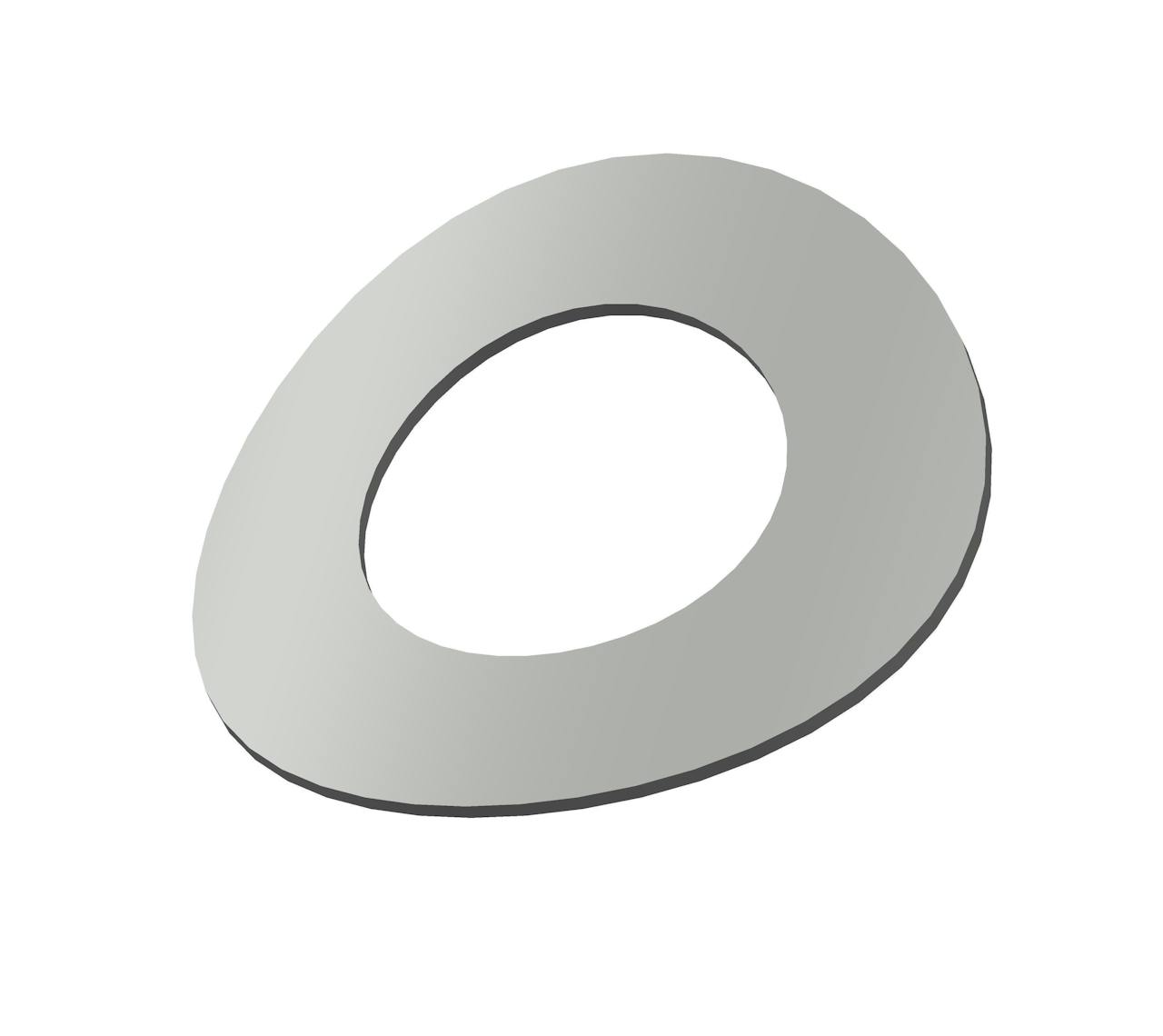

CRV-26176CS - 0.363 Inch ID 0.672 Inch OD Curved Disc Spring

Inventory:
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.363 Inch and an outside diameter of 0.672 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 11/32
Brand Century Spring
Calculated Load at Approximate Deflection 11 lb
Deflection 0.034 in
Display Name CRV-26176
Finish None
Inside Diameter 0.363 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.672 in
Outside Height 0.081 in
SKU CRV-26176CS
T 0.015 in
Specs (in metric)
Label Value
Bolt Size 11/32
Brand Century Spring
Calculated Load at Approximate Deflection 4.99 kg
Deflection 0.86 mm
Display Name CRV-26176
Finish None
Inside Diameter 9.22 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 17.07 mm
Outside Height 2.06 mm
SKU CRV-26176CS
T 0.38 mm
