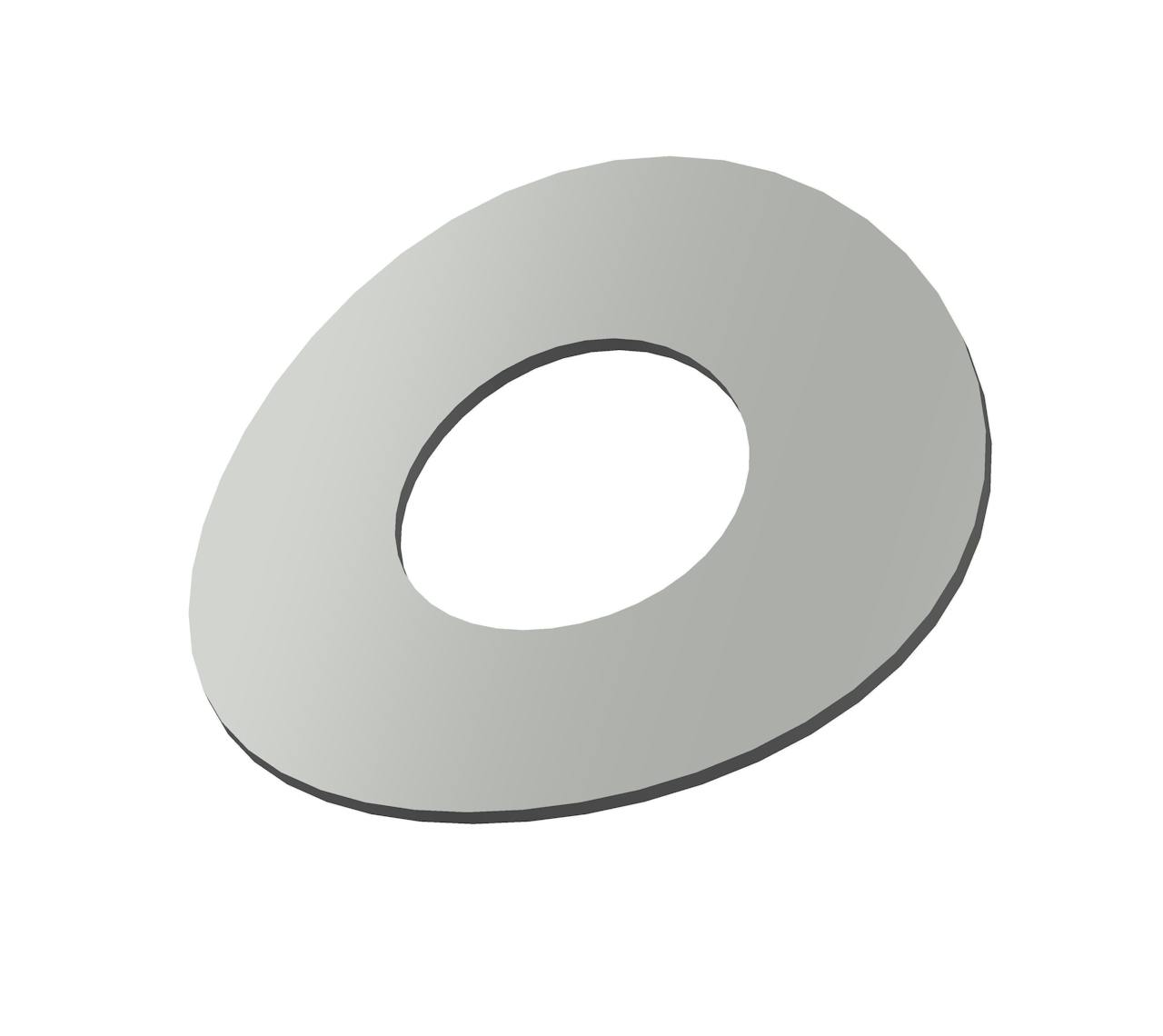

CRV-26166CS - 0.327 Inch ID 0.735 Inch OD Curved Disc Spring

Inventory:
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.327 Inch and an outside diameter of 0.735 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 5/16
Brand Century Spring
Calculated Load at Approximate Deflection 15 lb
Deflection 0.03 in
Display Name CRV-26166
Finish None
Inside Diameter 0.327 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.735 in
Outside Height 0.076 in
SKU CRV-26166CS
T 0.017 in
Specs (in metric)
Label Value
Bolt Size 5/16
Brand Century Spring
Calculated Load at Approximate Deflection 6.8 kg
Deflection 0.76 mm
Display Name CRV-26166
Finish None
Inside Diameter 8.31 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 18.67 mm
Outside Height 1.93 mm
SKU CRV-26166CS
T 0.43 mm
