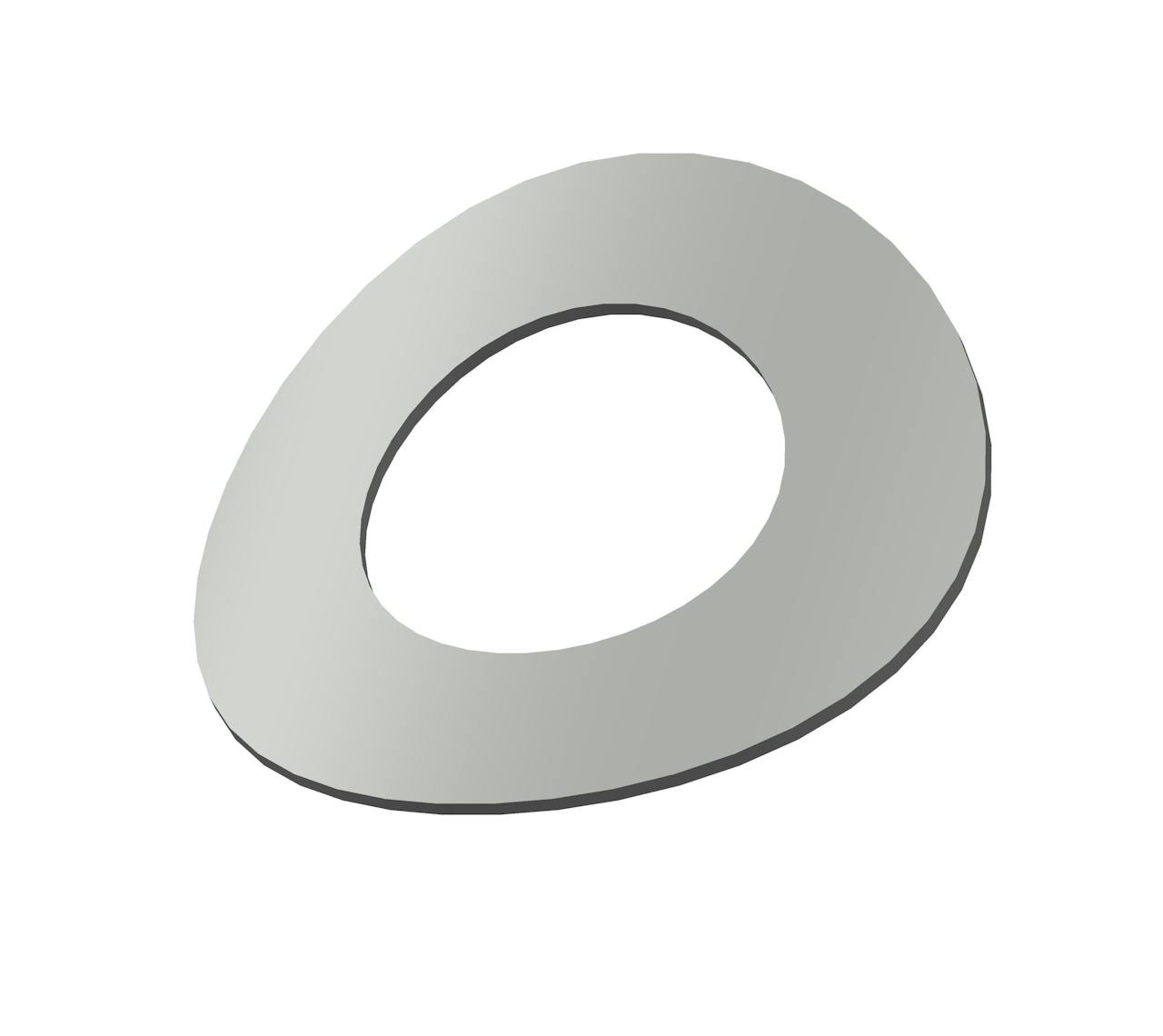

CRV-26160CS - 0.296 Inch ID 0.551 Inch OD Curved Disc Spring

Inventory:
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.296 Inch and an outside diameter of 0.551 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 9/32
Brand Century Spring
Calculated Load at Approximate Deflection 8 lb
Deflection 0.032 in
Display Name CRV-26160
Finish None
Inside Diameter 0.296 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.551 in
Outside Height 0.07 in
SKU CRV-26160CS
T 0.012 in
Specs (in metric)
Label Value
Bolt Size 9/32
Brand Century Spring
Calculated Load at Approximate Deflection 3.63 kg
Deflection 0.81 mm
Display Name CRV-26160
Finish None
Inside Diameter 7.52 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 14 mm
Outside Height 1.78 mm
SKU CRV-26160CS
T 0.3 mm
