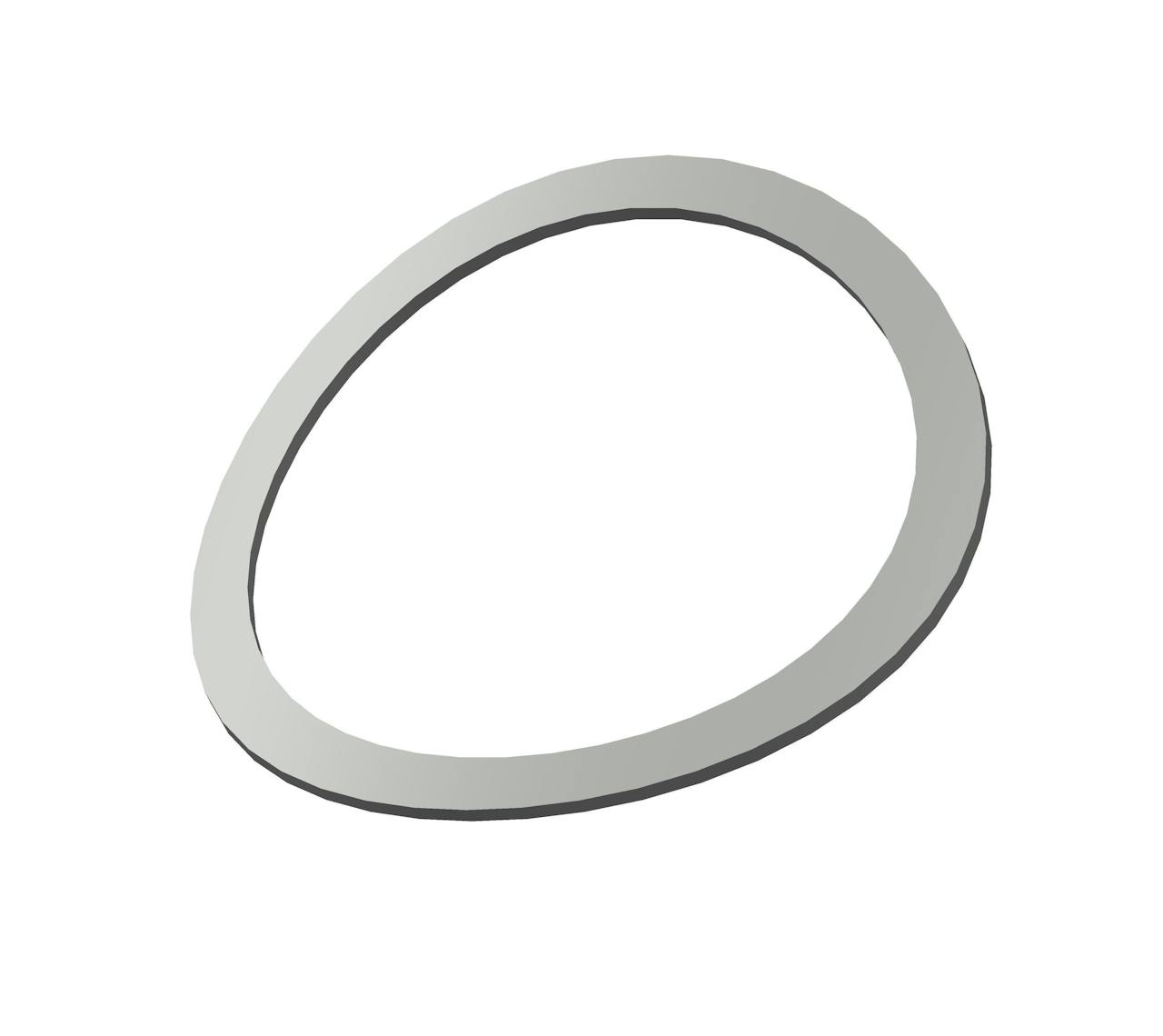

CRV-25428CS - 0.765 Inch ID 0.91 Inch OD Curved Disc Spring

Inventory:
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.765 Inch and an outside diameter of 0.91 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 3/4
Brand Century Spring
Calculated Load at Approximate Deflection 9.3 lb
Deflection 0.051 in
Display Name CRV-25428
Finish None
Inside Diameter 0.765 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.91 in
Outside Height 0.1 in
SKU CRV-25428CS
T 0.02 in
Specs (in metric)
Label Value
Bolt Size 3/4
Brand Century Spring
Calculated Load at Approximate Deflection 4.22 kg
Deflection 1.3 mm
Display Name CRV-25428
Finish None
Inside Diameter 19.43 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 23.11 mm
Outside Height 2.54 mm
SKU CRV-25428CS
T 0.51 mm
