Century Spring

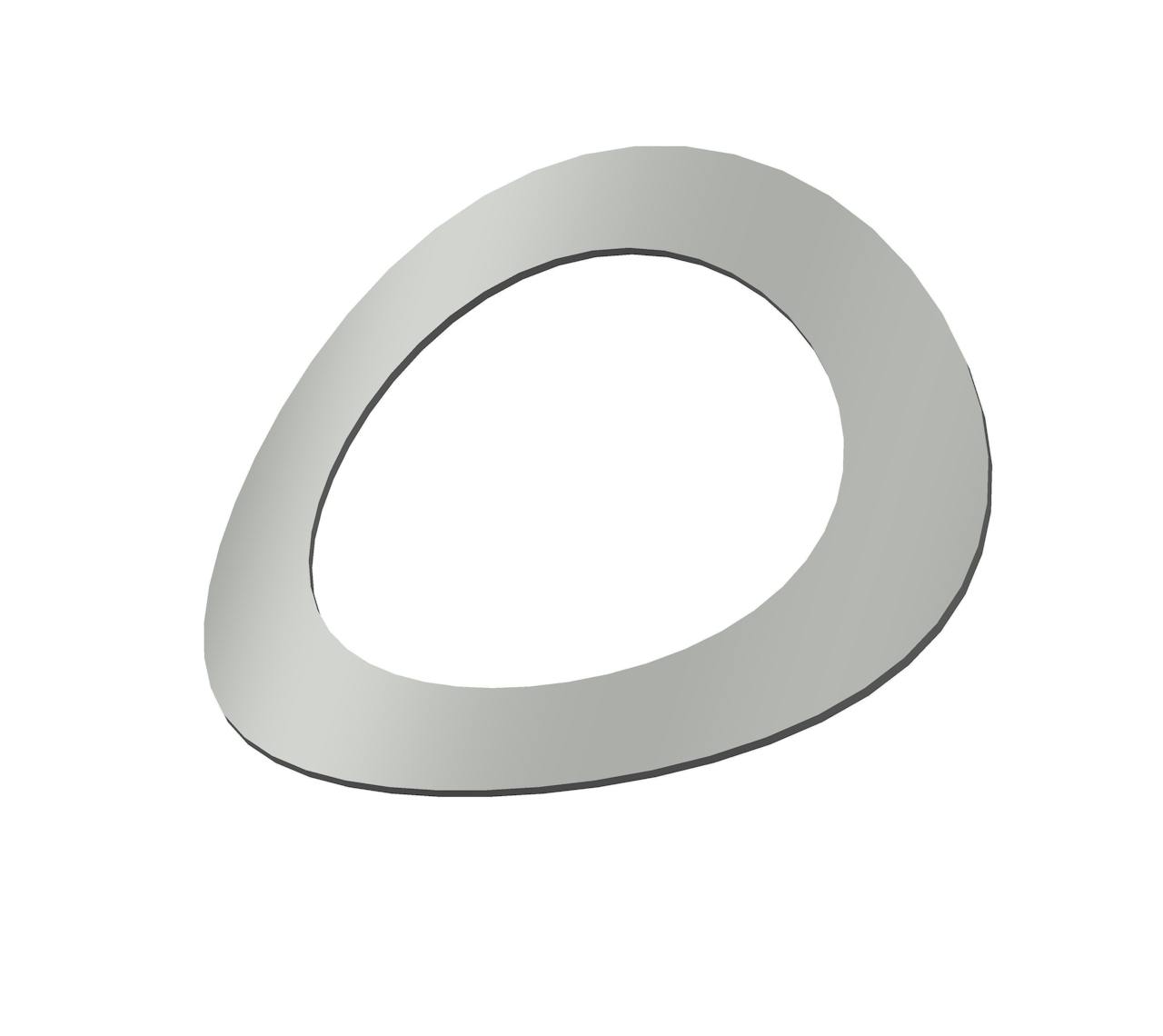

CRV-25386CS - 0.505 Inch ID 0.74 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.505 Inch and an outside diameter of 0.74 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 1/2
Brand Century Spring
Calculated Load at Approximate Deflection 4.6 lb
Deflection 0.067 in
Display Name CRV-25386
Finish None
Inside Diameter 0.505 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.74 in
Outside Height 0.125 in
SKU CRV-25386CS
T 0.01 in
Specs (in metric)
Label Value
Bolt Size 1/2
Brand Century Spring
Calculated Load at Approximate Deflection 2.09 kg
Deflection 1.7 mm
Display Name CRV-25386
Finish None
Inside Diameter 12.83 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 18.8 mm
Outside Height 3.18 mm
SKU CRV-25386CS
T 0.25 mm
