Century Spring

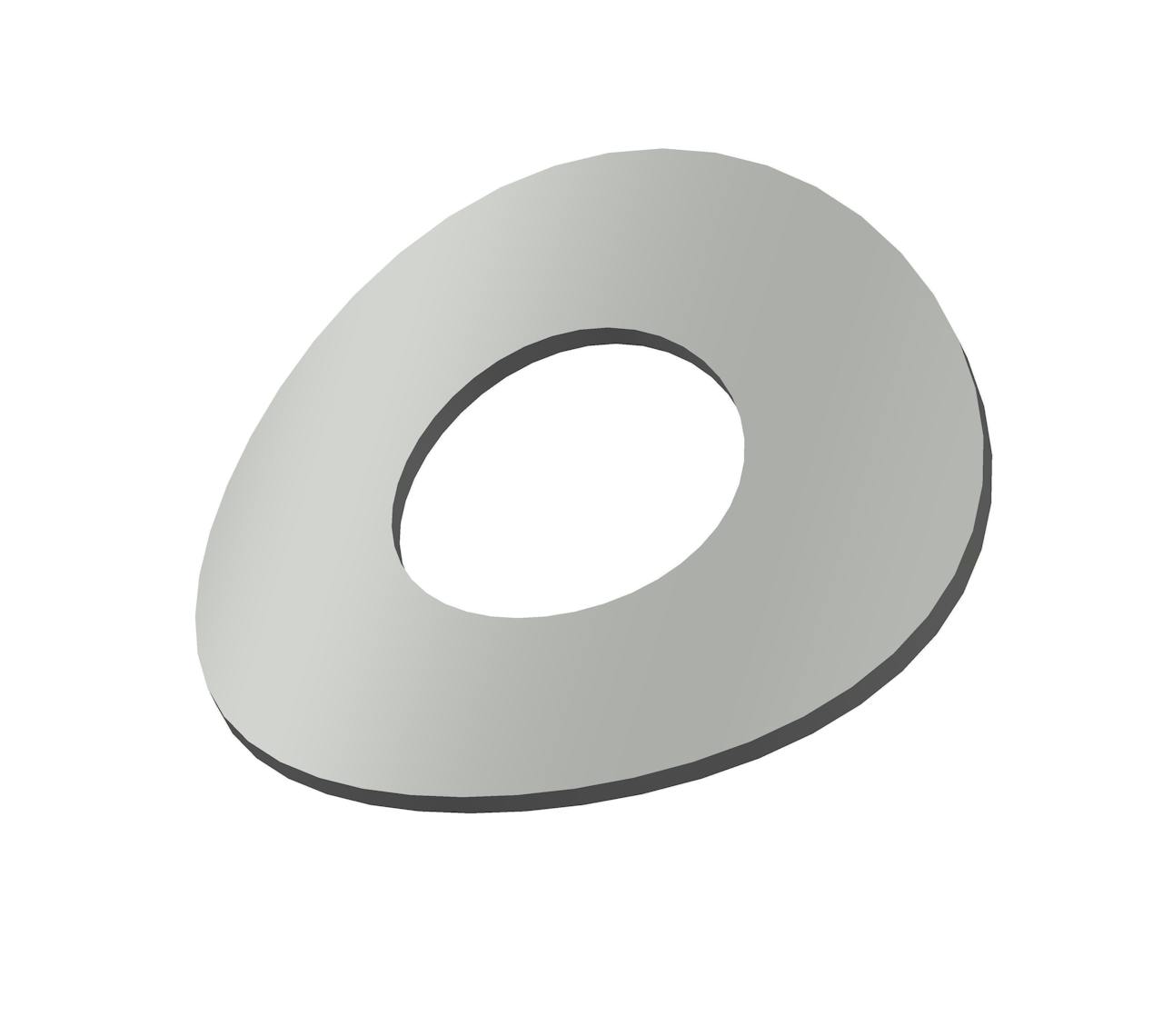

CRV-25270CS - 0.28 Inch ID 0.625 Inch OD Curved Disc Spring

Inventory Status
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.28 Inch and an outside diameter of 0.625 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 1/4
Brand Century Spring
Calculated Load at Approximate Deflection 32.3 lb
Deflection 0.024 in
Display Name CRV-25270
Finish None
Inside Diameter 0.28 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.625 in
Outside Height 0.093 in
SKU CRV-25270CS
T 0.02 in
Specs (in metric)
Label Value
Bolt Size 1/4
Brand Century Spring
Calculated Load at Approximate Deflection 14.65 kg
Deflection 0.61 mm
Display Name CRV-25270
Finish None
Inside Diameter 7.11 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 15.88 mm
Outside Height 2.36 mm
SKU CRV-25270CS
T 0.51 mm
