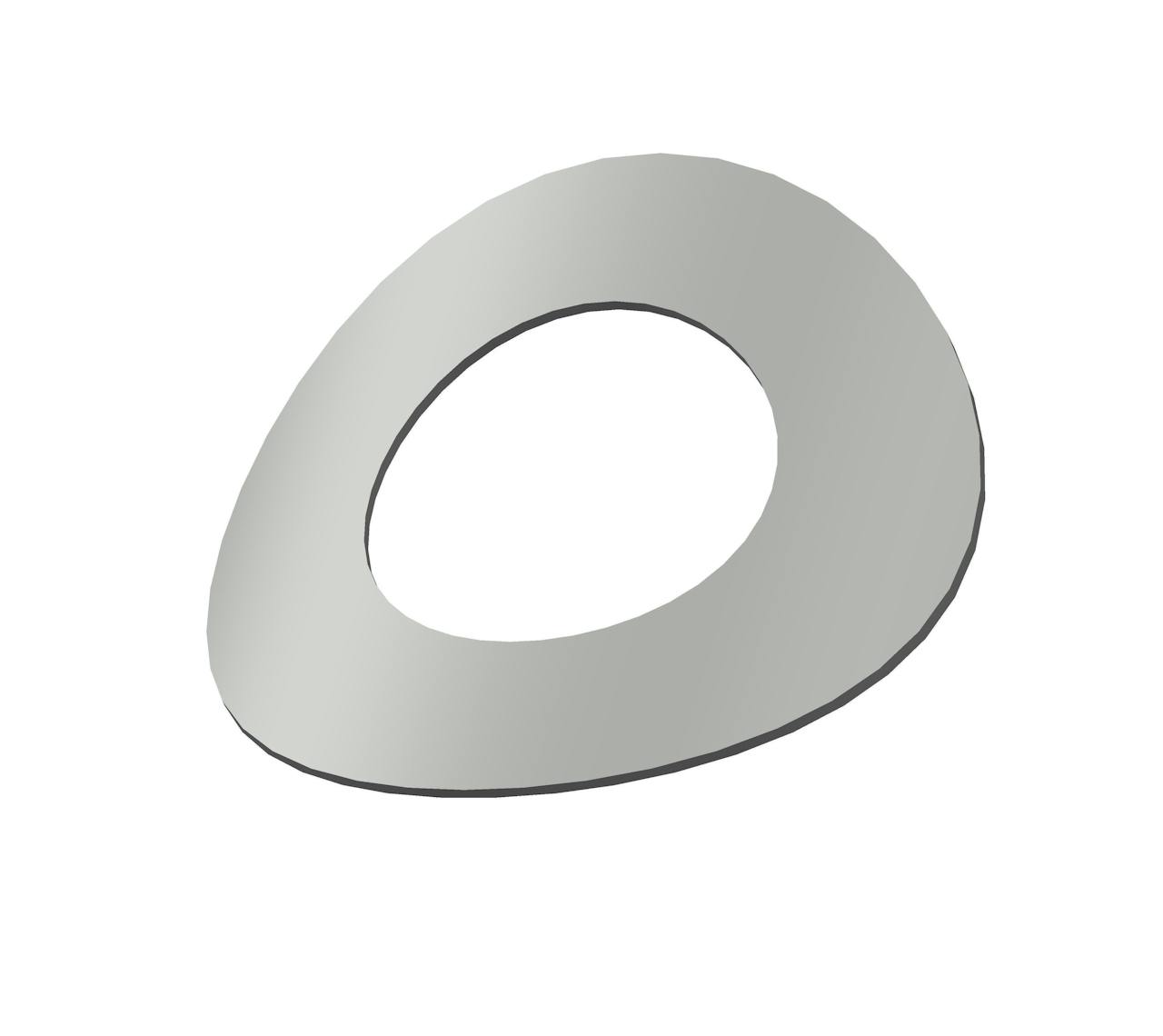

CRV-24633CS - 0.161 Inch ID 0.301 Inch OD Curved Disc Spring

Inventory:
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.161 Inch and an outside diameter of 0.301 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size #6
Brand Century Spring
Calculated Load at Approximate Deflection 1.7 lb
Deflection 0.022 in
Display Name CRV-24633
Finish None
Inside Diameter 0.161 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.301 in
Outside Height 0.047 in
SKU CRV-24633CS
T 0.005 in
Specs (in metric)
Label Value
Bolt Size #6
Brand Century Spring
Calculated Load at Approximate Deflection 0.77 kg
Deflection 0.56 mm
Display Name CRV-24633
Finish None
Inside Diameter 4.09 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 7.65 mm
Outside Height 1.19 mm
SKU CRV-24633CS
T 0.13 mm
