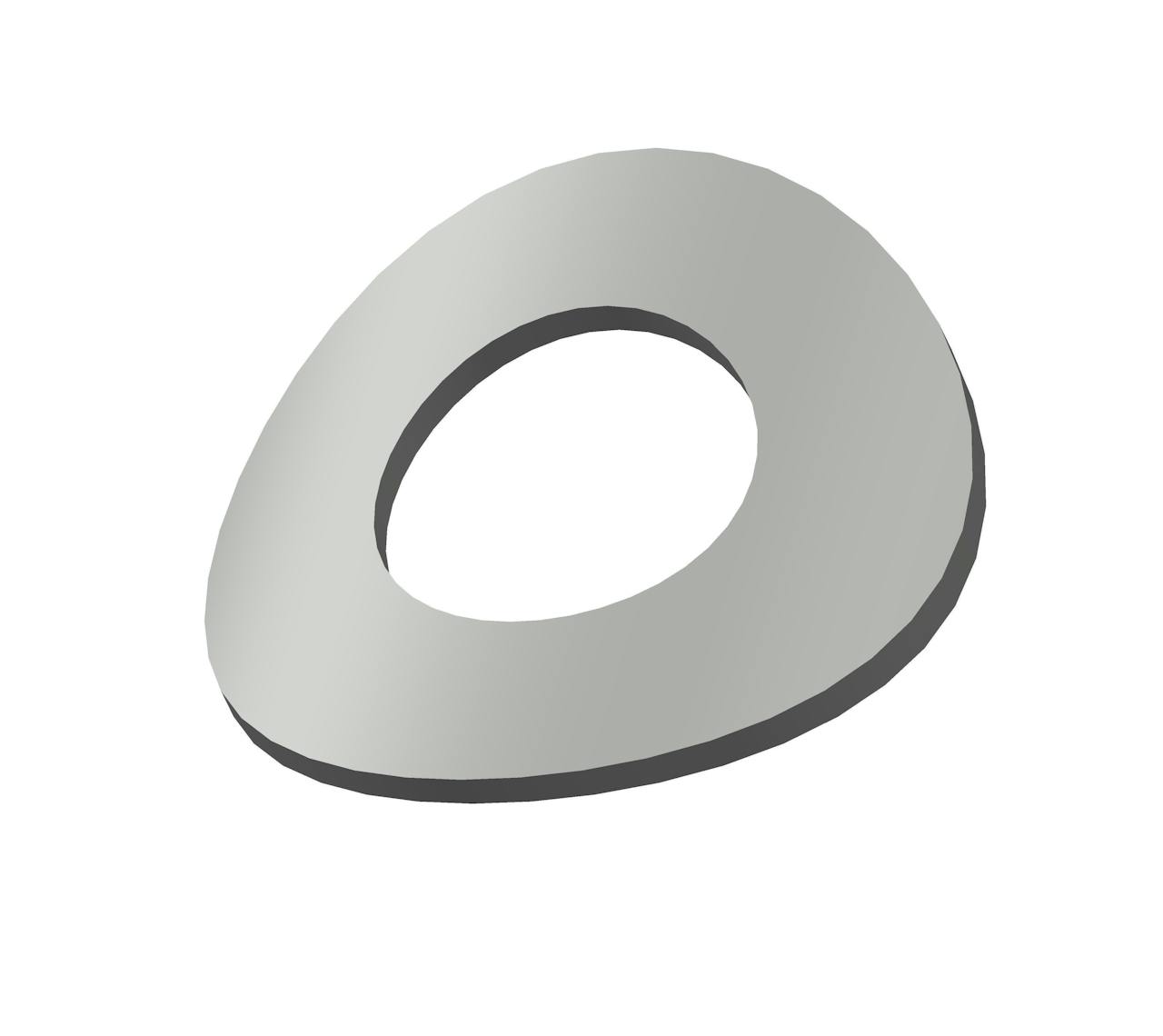

CRV-24521CS - 0.125 Inch ID 0.25 Inch OD Curved Disc Spring

Inventory:
Estimated Lead Time

Curved disc spring manufactured from Spring Steel with an inside diameter of 0.125 Inch and an outside diameter of 0.25 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size #4
Brand Century Spring
Calculated Load at Approximate Deflection 10.5 lb
Deflection 0.006 in
Display Name CRV-24521
Finish None
Inside Diameter 0.125 in
Material Spring Steel
Measurement Units Standard
Outside Diameter 0.25 in
Outside Height 0.047 in
SKU CRV-24521CS
T 0.012 in
Specs (in metric)
Label Value
Bolt Size #4
Brand Century Spring
Calculated Load at Approximate Deflection 4.76 kg
Deflection 0.15 mm
Display Name CRV-24521
Finish None
Inside Diameter 3.18 mm
Material Spring Steel
Measurement Units Standard
Outside Diameter 6.35 mm
Outside Height 1.19 mm
SKU CRV-24521CS
T 0.3 mm
