Century Spring

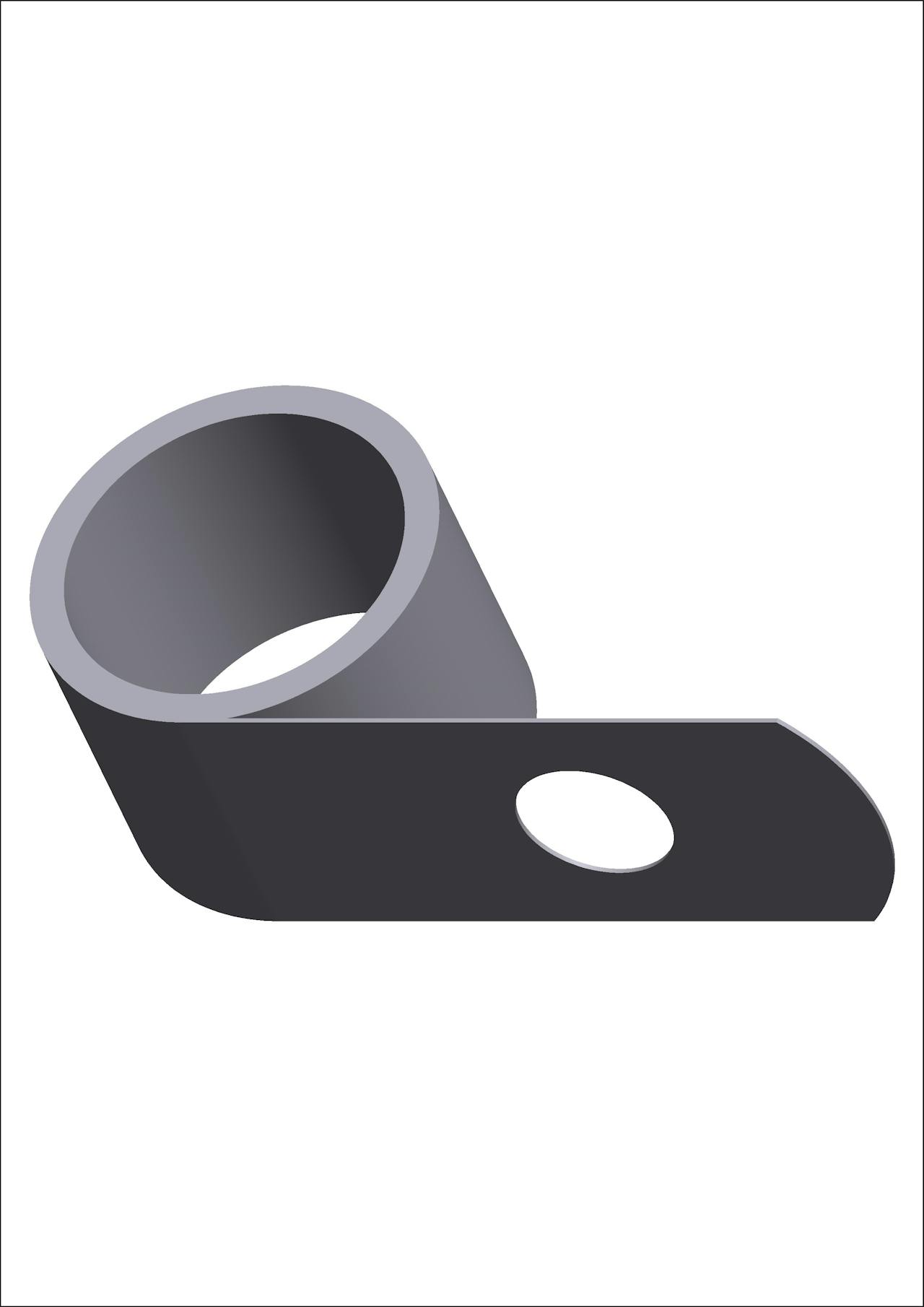

CF66CS - 0.25 Inch x 15 Inch Constant Force Spring

Inventory Status
Estimated Lead Time

0.66 Pound constant force spring - 0.25 Inch by 15 Inch with a hole diameter of 0.128 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CF66
Drum Diameter 0.336 in
Finish None
Hole Diameter 0.128 in
Inside Diameter 0.28 in
Length 15 in
Load 0.66 lb
Material Spring Steel
Measurement Units Standard
Number of Holes 1
SKU CF66CS
Thickness 0.004 in
Width 0.25 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CF66
Drum Diameter 8.53 mm
Finish None
Hole Diameter 3.25 mm
Inside Diameter 7.11 mm
Length 381 mm
Load 0.3 kg
Material Spring Steel
Measurement Units Standard
Number of Holes 1
SKU CF66CS
Thickness 0.1 mm
Width 6.35 mm
