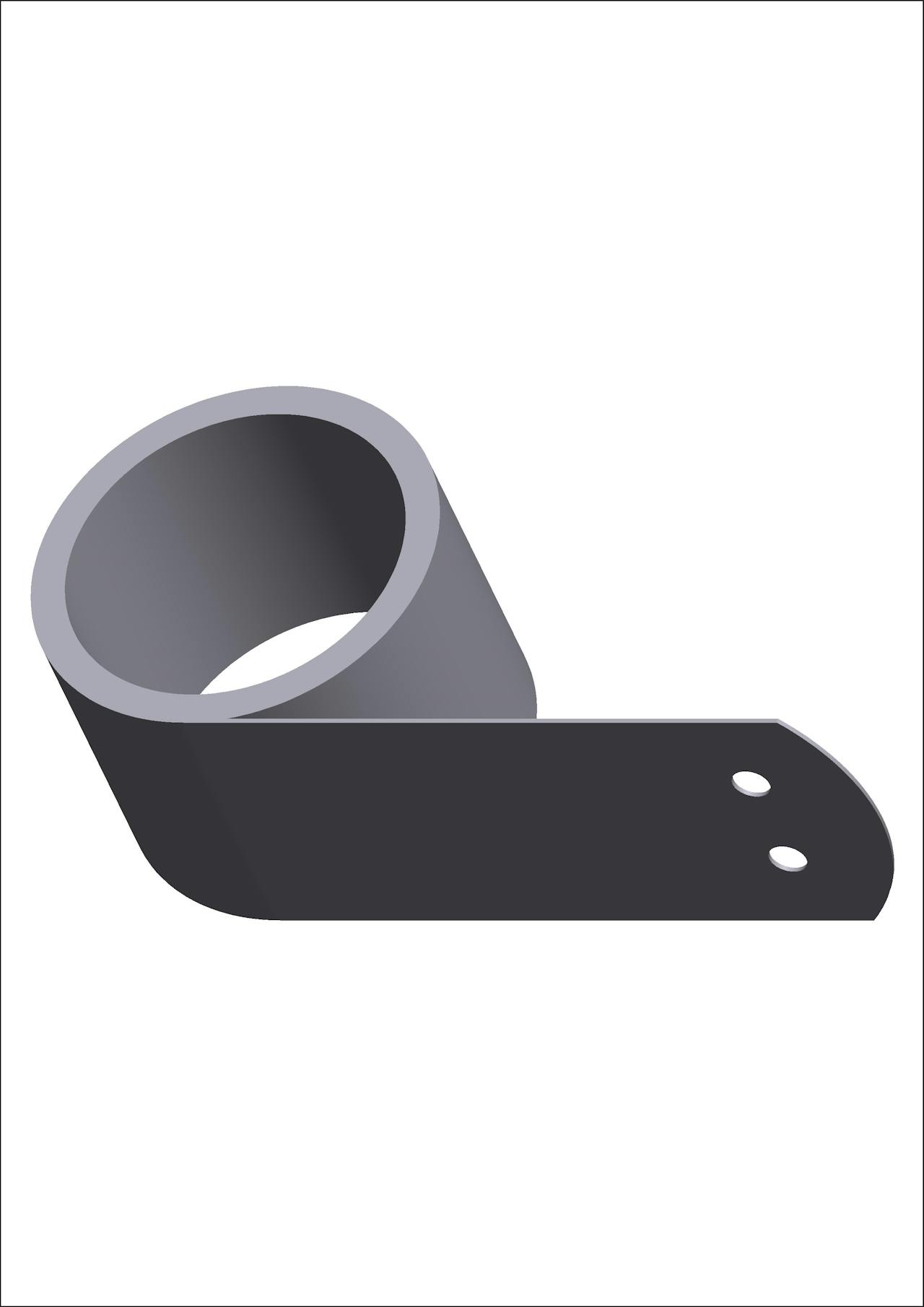

CF4100CS - 2 Inch x 60 Inch Constant Force Spring

Inventory:
Estimated Lead Time

41 Pound constant force spring - 2 Inch by 60 Inch with a hole diameter of 0.253 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CF4100
Distance Between Holes 0.758 in
Drum Diameter 2.7 in
Finish None
Hole Diameter 0.253 in
Inside Diameter 2.26 in
Length 60 in
Load 41 lb
Material Spring Steel
Measurement Units Standard
Number of Holes 2
SKU CF4100CS
Thickness 0.031 in
Width 2 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CF4100
Distance Between Holes 19.25 mm
Drum Diameter 68.58 mm
Finish None
Hole Diameter 6.43 mm
Inside Diameter 57.4 mm
Length 1524 mm
Load 18.59 kg
Material Spring Steel
Measurement Units Standard
Number of Holes 2
SKU CF4100CS
Thickness 0.79 mm
Width 50.8 mm
