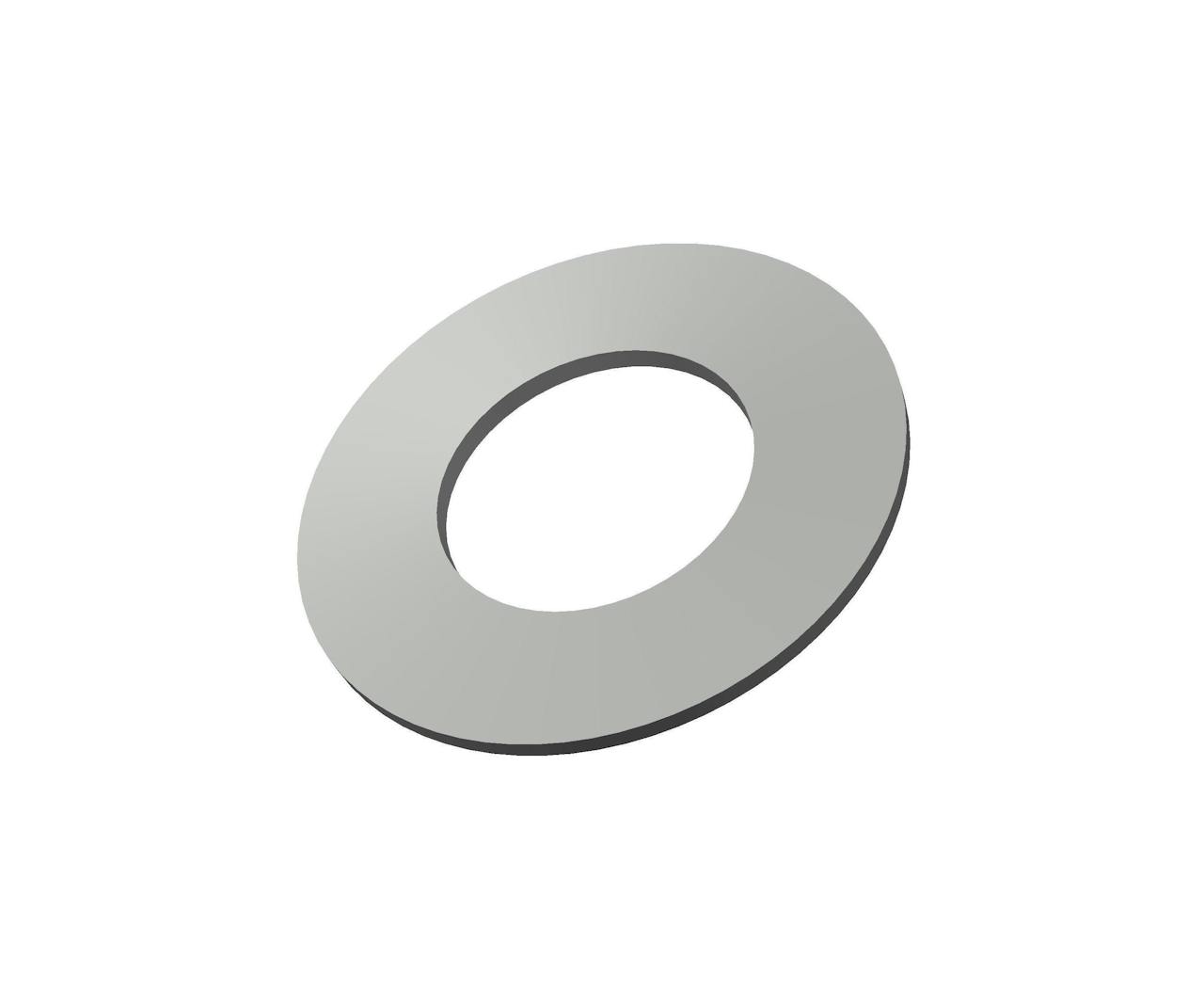

CDS-105135CS - 0.512 Inch ID 1 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory:
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.512 Inch and an outside diameter of 1 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Bolt Size 0.5
Brand Century Spring
Display Name CDS-105135
Finish Phosphate
H 0.032 in
Inside Diameter 0.512 in
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.032 in
Maximum Force at 100% Height 277 lb
Measurement Units Standard
Outside Diameter 1 in
Outside Height 0.067 in
SKU CDS-105135CS
T 0.035 in
Specs (in metric)
Label Value
Bolt Size 0.5
Brand Century Spring
Display Name CDS-105135
Finish Phosphate
H 0.81 mm
Inside Diameter 13 mm
Material 1075 High Carbon Steel
Maximum Deflection at 100% Height 0.81 mm
Maximum Force at 100% Height 125.62 kg
Measurement Units Standard
Outside Diameter 25.4 mm
Outside Height 1.7 mm
SKU CDS-105135CS
T 0.89 mm
