Century Spring

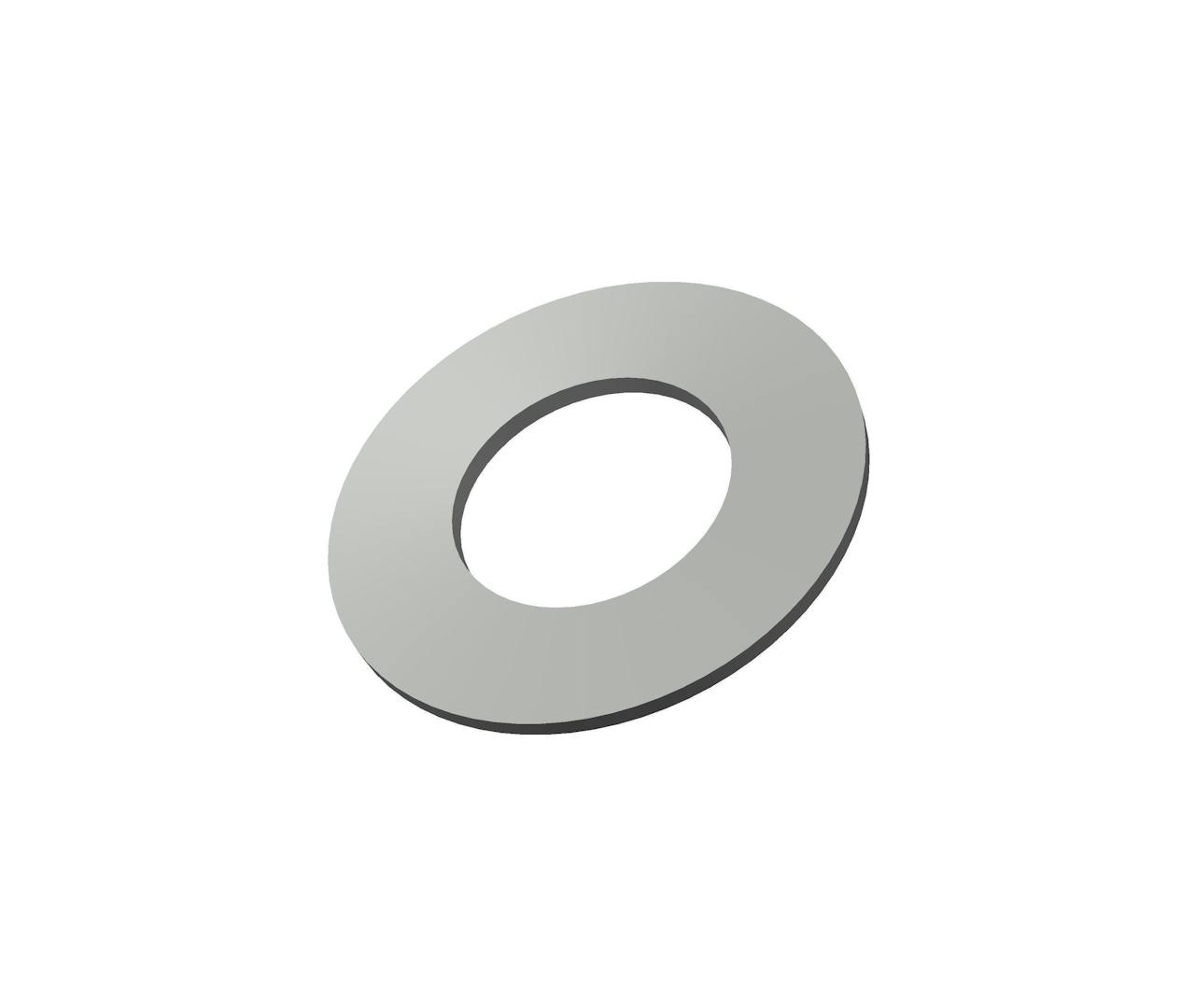

CDM-804130CS - 1.61 Inch ID 3.15 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 1.61 Inch and an outside diameter of 3.15 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 1058 lb
Deflection at 100% Height 0.0915 in
Deflection at 50% Height 0.0457 in
Deflection at 75% Height 0.0686 in
Display Name CDM-804130
Finish Phosphate
Inside Diameter 1.61 in
Load at 100% Height 3036 lb
Load at 50% Height 1860 lb
Load at 75% Height 2491 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 3.15 in
Outside Height 0.2087 in
SKU CDM-804130CS
T 0.1181 in
h/t 0.775 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 479.82 kg
Deflection at 100% Height 2.32 mm
Deflection at 50% Height 1.16 mm
Deflection at 75% Height 1.74 mm
Display Name CDM-804130
Finish Phosphate
Inside Diameter 40.89 mm
Load at 100% Height 1376.87 kg
Load at 50% Height 843.54 kg
Load at 75% Height 1129.71 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 80.01 mm
Outside Height 5.3 mm
SKU CDM-804130CS
T 3 mm
h/t 19.69 mm
