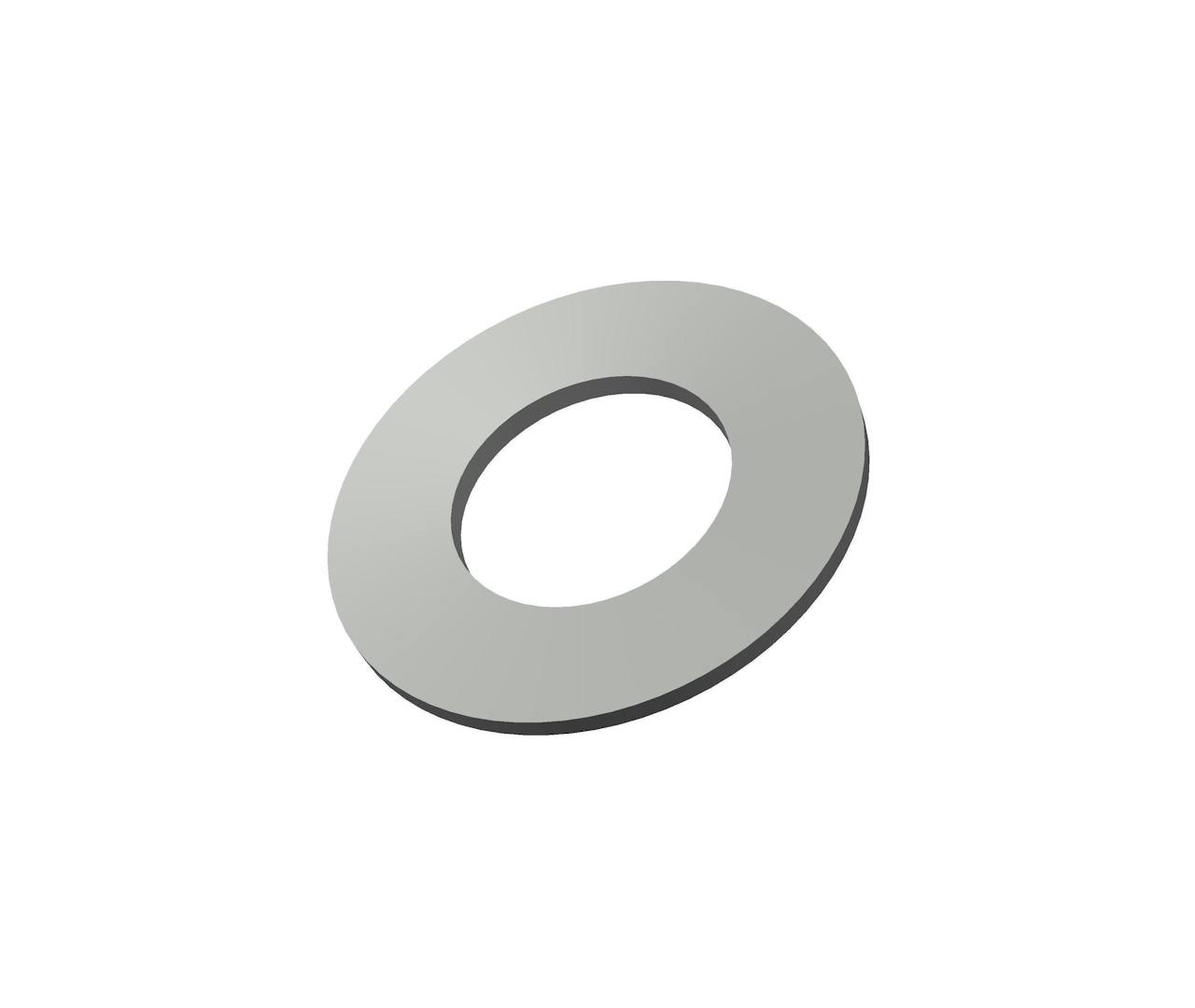

CDM-168207CS - 0.323 Inch ID 0.63 Inch OD 1075 High Carbon Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 High Carbon Steel with an inside diameter of 0.323 Inch and an outside diameter of 0.63 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 61 lb
Deflection at 100% Height 0.0179 in
Deflection at 50% Height 0.0089 in
Deflection at 75% Height 0.0134 in
Display Name CDM-168207
Finish Phosphate
Inside Diameter 0.323 in
Load at 100% Height 191 lb
Load at 50% Height 111 lb
Load at 75% Height 153 lb
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 0.63 in
Outside Height 0.0453 in
SKU CDM-168207CS
T 0.0276 in
h/t 0.649 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 27.66 kg
Deflection at 100% Height 0.45 mm
Deflection at 50% Height 0.23 mm
Deflection at 75% Height 0.34 mm
Display Name CDM-168207
Finish Phosphate
Inside Diameter 8.2 mm
Load at 100% Height 86.62 kg
Load at 50% Height 50.34 kg
Load at 75% Height 69.39 kg
Material 1075 High Carbon Steel
Measurement Units Standard
Outside Diameter 16 mm
Outside Height 1.15 mm
SKU CDM-168207CS
T 0.7 mm
h/t 16.48 mm
