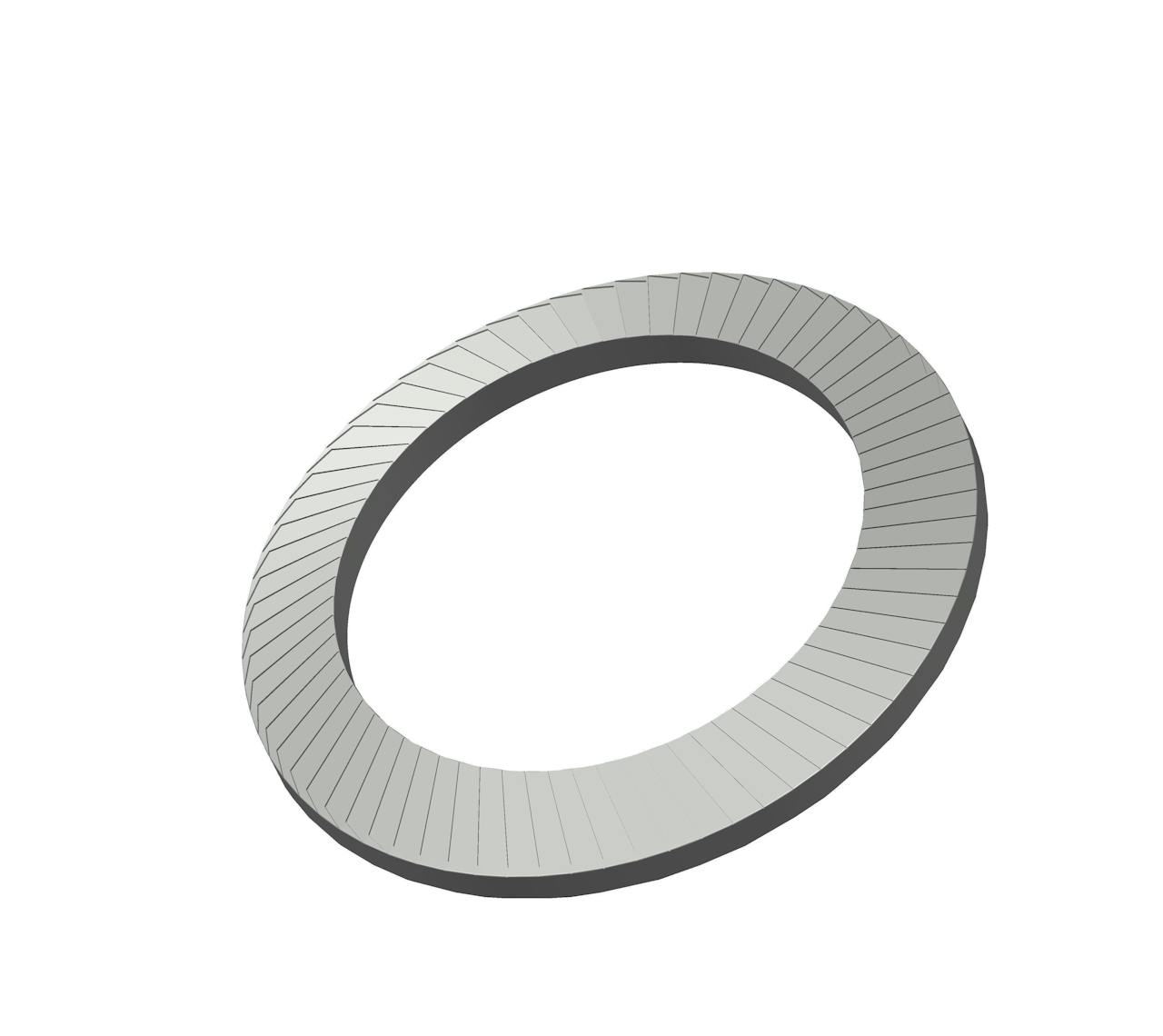

CCS127CS - 0.539 Inch ID 0.748 Inch OD Serrated Disc Spring

Inventory:
Estimated Lead Time

Serrated disc spring manufactured from Spring Steel with an inside diameter of 0.539 Inch and an outside diameter of 0.748 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CCS127
Finish None
H 0.049 in
Inside Diameter 0.539 in
Material Spring Steel
Max H 0.071 in
Measurement Units Standard
Outside Diameter 0.748 in
Outside Height 0.071 in
SKU CCS127CS
Series Light Series
T 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CCS127
Finish None
H 1.24 mm
Inside Diameter 13.69 mm
Material Spring Steel
Max H 1.8 mm
Measurement Units Standard
Outside Diameter 19 mm
Outside Height 1.8 mm
SKU CCS127CS
Series Light Series
T 0.99 mm
