Century Spring

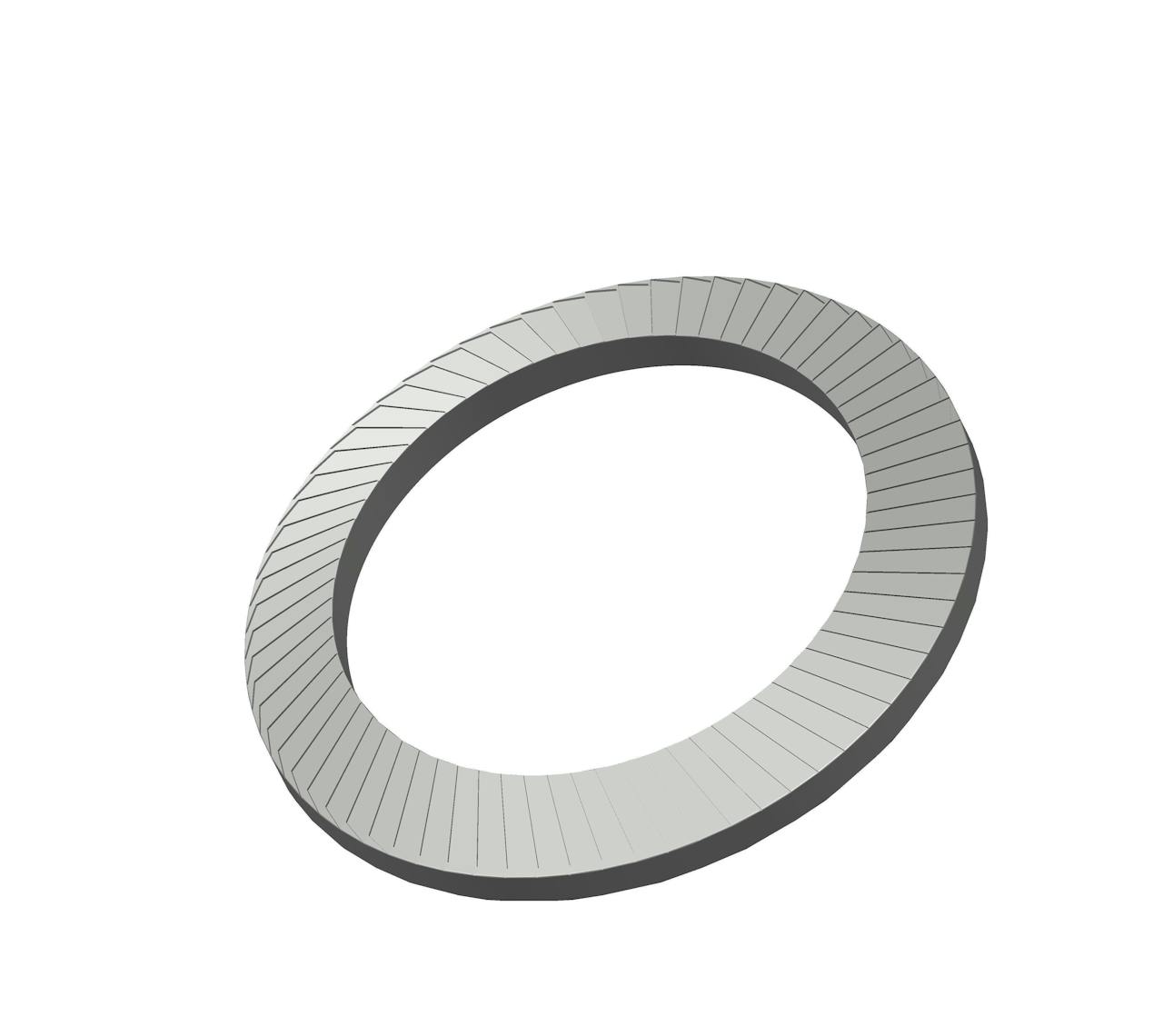

CCS111CS - 0.457 Inch ID 0.626 Inch OD Serrated Disc Spring

Inventory Status
Estimated Lead Time

Serrated disc spring manufactured from Spring Steel with an inside diameter of 0.457 Inch and an outside diameter of 0.626 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CCS111
Finish None
H 0.041 in
Inside Diameter 0.457 in
Material Spring Steel
Max H 0.063 in
Measurement Units Standard
Outside Diameter 0.626 in
Outside Height 0.063 in
SKU CCS111CS
Series Light Series
T 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CCS111
Finish None
H 1.04 mm
Inside Diameter 11.61 mm
Material Spring Steel
Max H 1.6 mm
Measurement Units Standard
Outside Diameter 15.9 mm
Outside Height 1.6 mm
SKU CCS111CS
Series Light Series
T 0.89 mm
