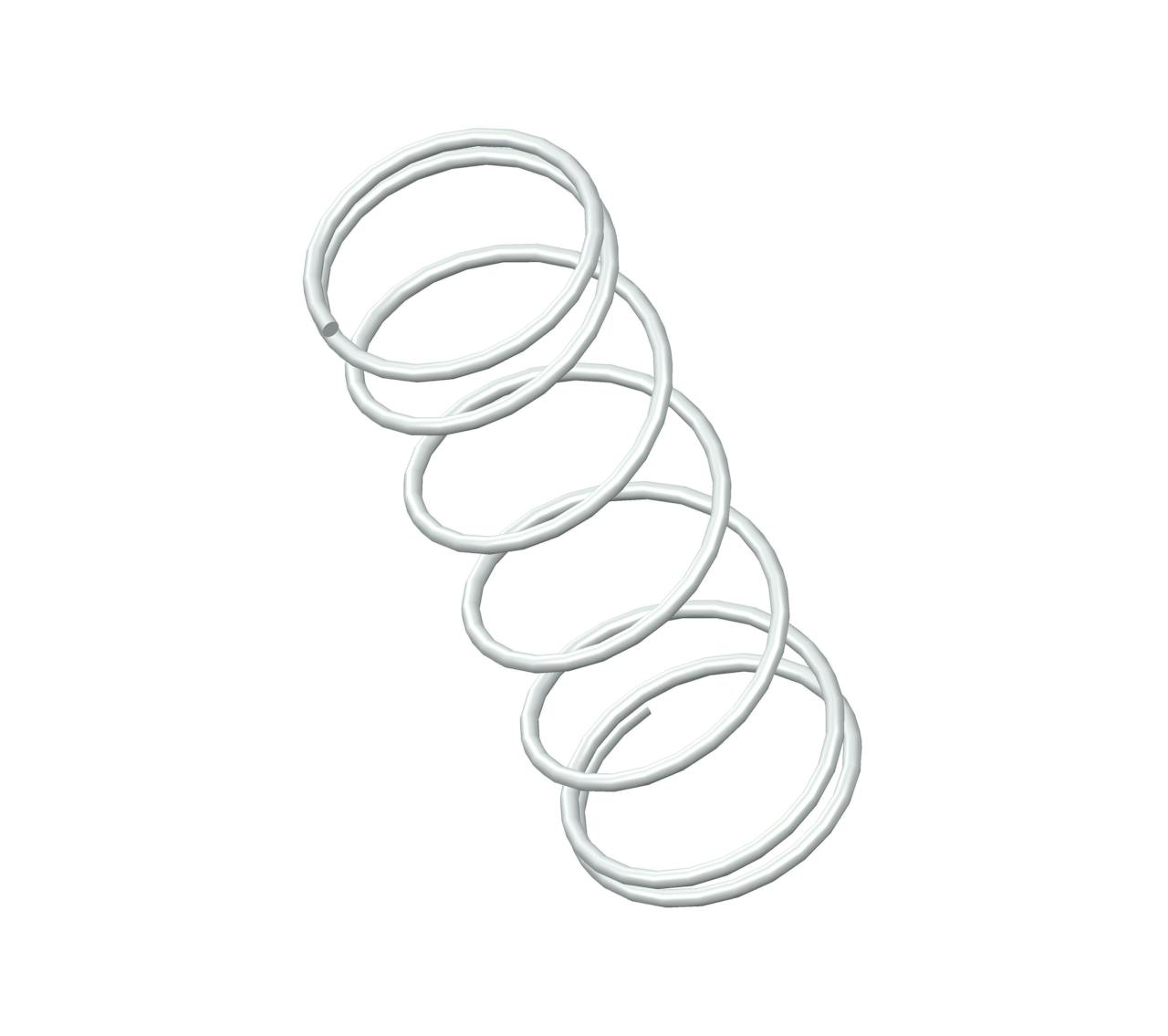

CC-98CS - 1.19" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7.25 coils and closed ends. This spring features an O.D. of 0.42", and an I.D. of 0.37".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-98 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.37 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 1.5 lbs/in |
| SKU | CC-98CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.95 in |
| Suggested Max Load | 1.4 lbf |
| Total Coils | 7.25 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-98 |
| Ends | Closed |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 9.4 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 0.26 N/mm |
| SKU | CC-98CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 24.13 mm |
| Suggested Max Load | 6.23 N |
| Total Coils | 7.25 |
| Wire Diameter | 0.64 mm |
The CC-98 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The CC-98CS compression spring is designed with a free length of 0.59" total of 7 coils, and a rate of 42 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The CC-98 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The CC-98CS compression spring is designed with a free length of 0.59" total of 7 coils, and a rate of 42 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The CC-98 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
