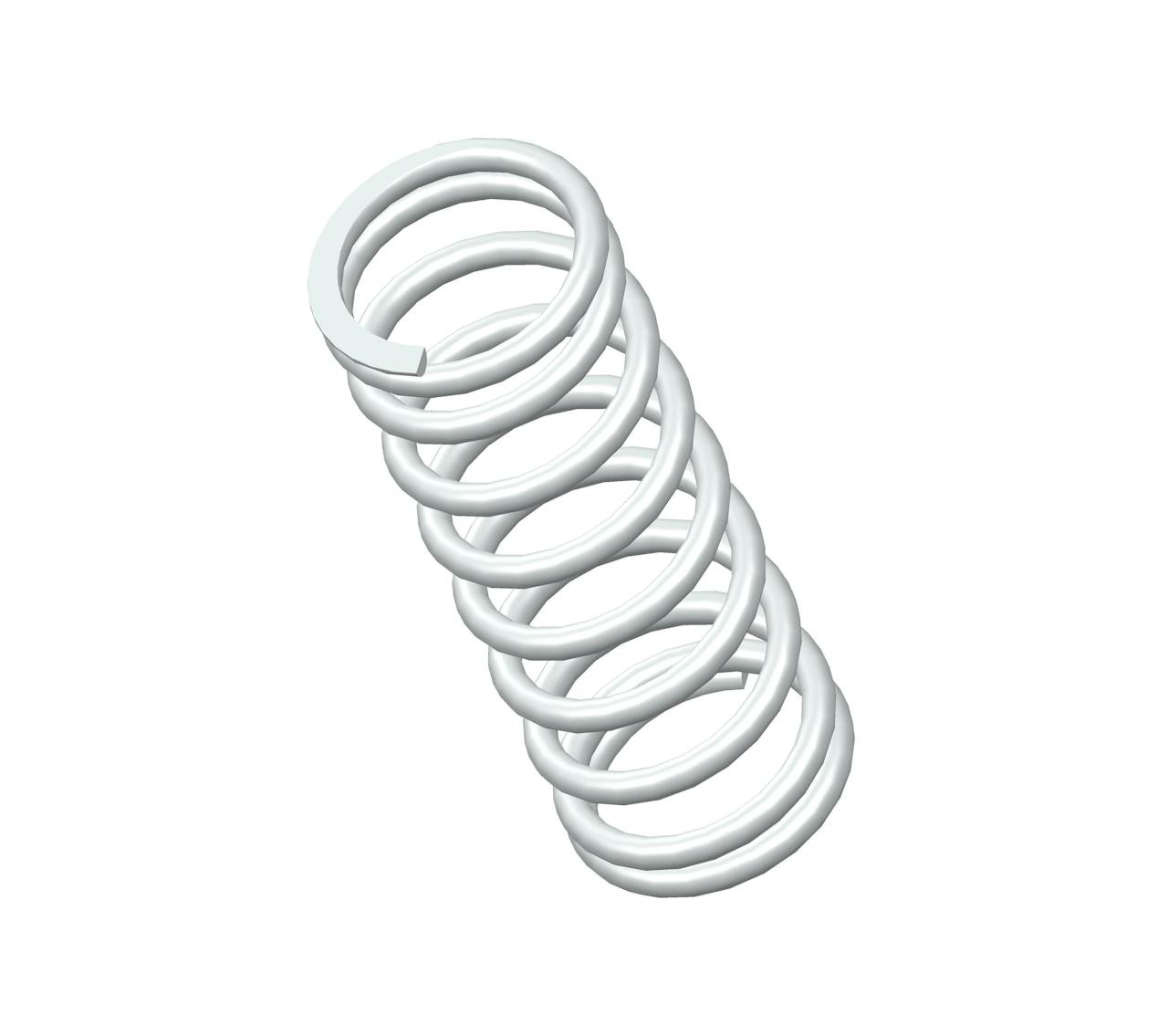

CC-93CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 9.5 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.353".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-93 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.353 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 16 lbs/in |
| SKU | CC-93CS |
| Solid Length | 0.48 in |
| Suggested Max Deflection | 0.57 in |
| Suggested Max Load | 9.3 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-93 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 8.97 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 2.8 N/mm |
| SKU | CC-93CS |
| Solid Length | 12.19 mm |
| Suggested Max Deflection | 14.48 mm |
| Suggested Max Load | 41.37 N |
| Total Coils | 9.5 |
| Wire Diameter | 1.27 mm |
The compression spring CC-93CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the CC-93 compression spring design exhibits exceptional tensile strength and resilience.
The CC-93 design is manufactured with a free length of 1.25", with an outer diameter of 0.453", an inner diameter of 0.353", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The CC-93CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring CC-93 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The CC-93 design is manufactured with a free length of 1.25", with an outer diameter of 0.453", an inner diameter of 0.353", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The CC-93CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring CC-93 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
