CC-81CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

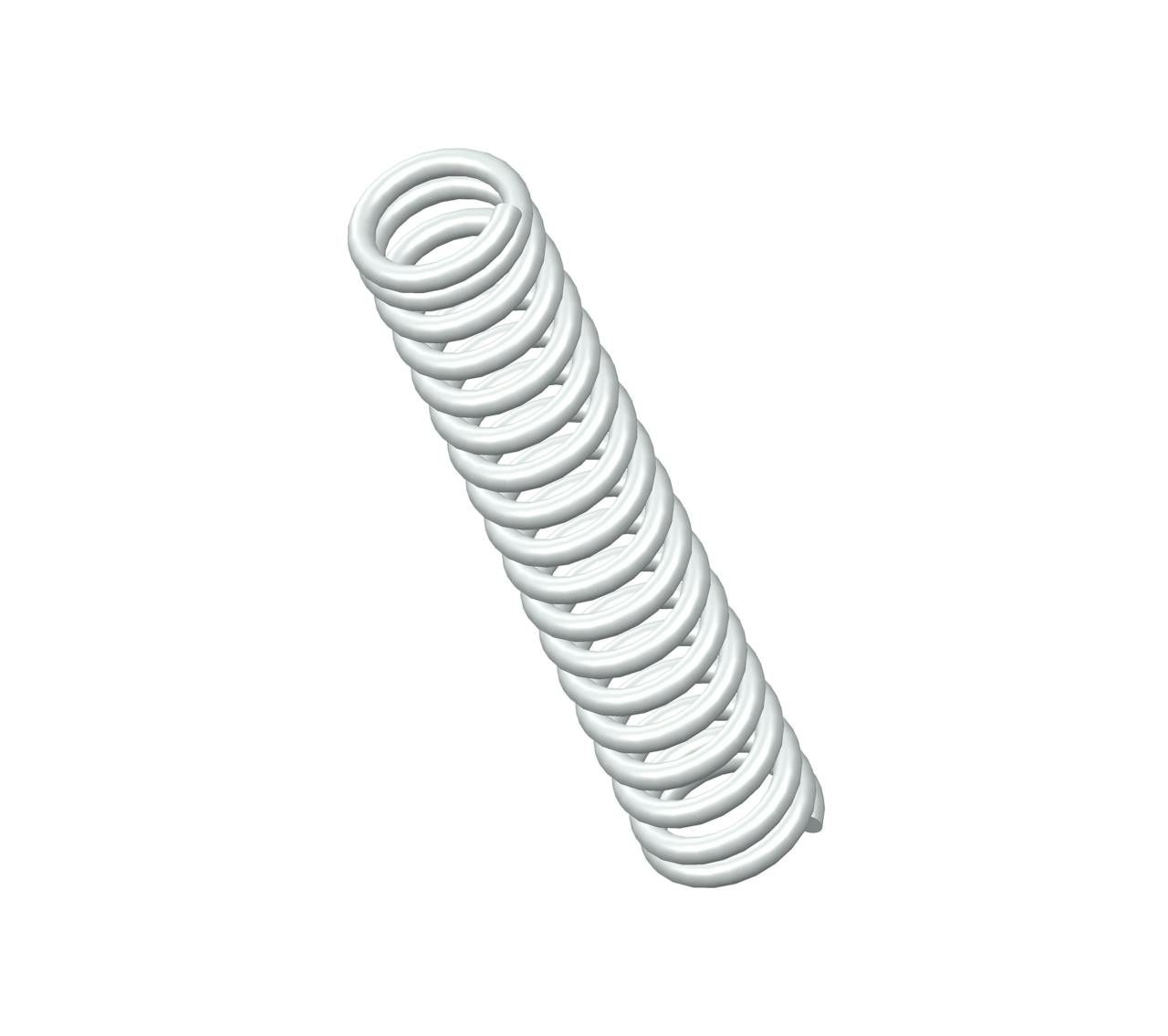

Compression spring manufactured from 302/304 stainless steel with 18 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.164".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-81 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.164 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 15 lbs/in |
| SKU | CC-81CS |
| Solid Length | 0.67 in |
| Suggested Max Deflection | 0.43 in |
| Suggested Max Load | 6.4 lbf |
| Total Coils | 18 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-81 |
| Ends | Closed |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 4.17 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 2.63 N/mm |
| SKU | CC-81CS |
| Solid Length | 17.02 mm |
| Suggested Max Deflection | 10.92 mm |
| Suggested Max Load | 28.47 N |
| Total Coils | 18 |
| Wire Diameter | 0.89 mm |
The CC-81 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The CC-81CS compression spring is designed with a free length of 1" total of 4.75 coils, and a rate of 98 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The CC-81 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The CC-81CS compression spring is designed with a free length of 1" total of 4.75 coils, and a rate of 98 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The CC-81 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
