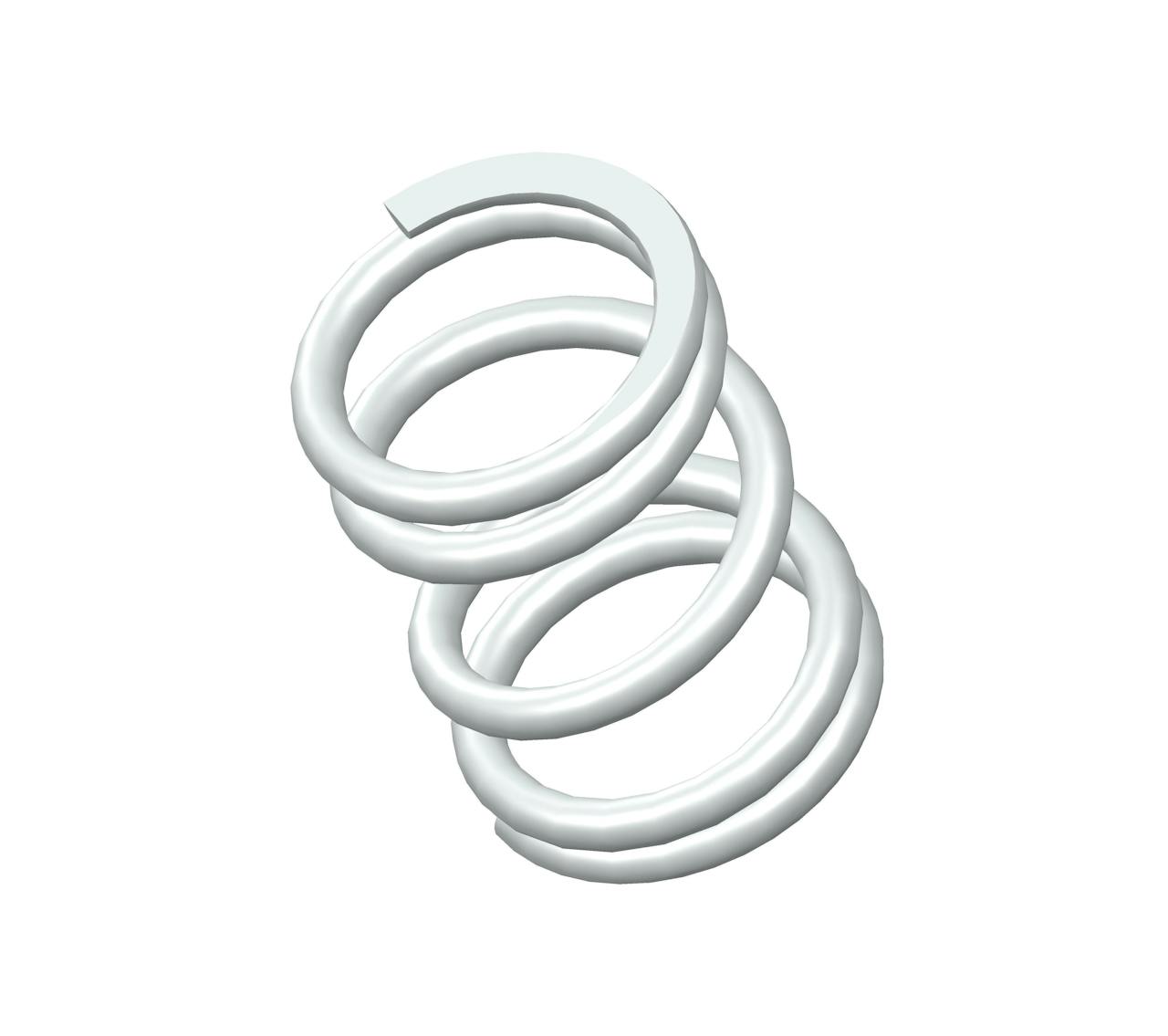

CC-80CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4.75 coils and closed & ground ends. This spring features an O.D. of 0.718", and an I.D. of 0.546".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-80 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.546 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.718 in |
| Part Type | Standard |
| Rate | 98 lbs/in |
| SKU | CC-80CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 0.28 in |
| Suggested Max Load | 28 lbf |
| Total Coils | 4.75 |
| Wire Diameter | 0.086 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-80 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 13.87 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 18.24 mm |
| Part Type | Standard |
| Rate | 17.16 N/mm |
| SKU | CC-80CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 7.11 mm |
| Suggested Max Load | 124.54 N |
| Total Coils | 4.75 |
| Wire Diameter | 2.18 mm |
The compression spring CC-80CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the CC-80 compression spring design exhibits exceptional tensile strength and resilience.
The CC-80 design is manufactured with a free length of 1", with an outer diameter of 0.718", an inner diameter of 0.546", and a total of 4.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 98 lbs/in.
The CC-80CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring CC-80 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The CC-80 design is manufactured with a free length of 1", with an outer diameter of 0.718", an inner diameter of 0.546", and a total of 4.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 98 lbs/in.
The CC-80CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring CC-80 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
