Century Spring

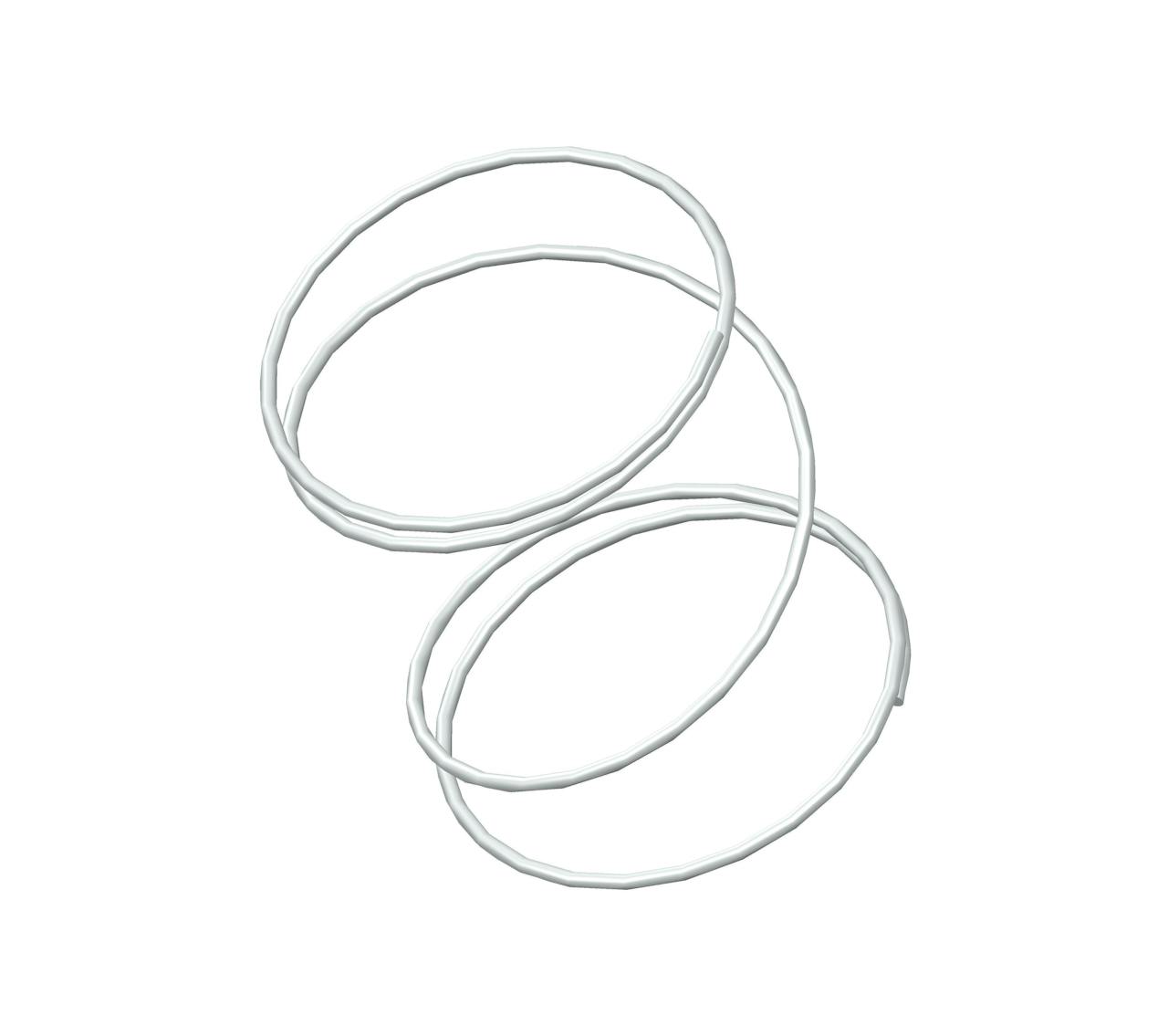

CC-58CS - 0.38" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.292".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CC-58
Ends Closed
Finish None
Free Length 0.38 in
Inside Diameter 0.292 in
Material 302/304 Stainless Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 0.23 lbs/in
SKU CC-58CS
Solid Length 0.05 in
Suggested Max Deflection 0.33 in
Suggested Max Load 0.07 lbf
Total Coils 4
Wire Diameter 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CC-58
Ends Closed
Finish None
Free Length 9.65 mm
Inside Diameter 7.42 mm
Material 302/304 Stainless Steel
Outside Diameter 7.92 mm
Part Type Standard
Rate 0.04 N/mm
SKU CC-58CS
Solid Length 1.27 mm
Suggested Max Deflection 8.38 mm
Suggested Max Load 0.31 N
Total Coils 4
Wire Diameter 0.25 mm
The compression spring CC-58CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the CC-58 compression spring design exhibits exceptional tensile strength and resilience.

The CC-58 design is manufactured with a free length of 0.38", with an outer diameter of 0.312", an inner diameter of 0.292", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.23 lbs/in.

The CC-58CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring CC-58 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
