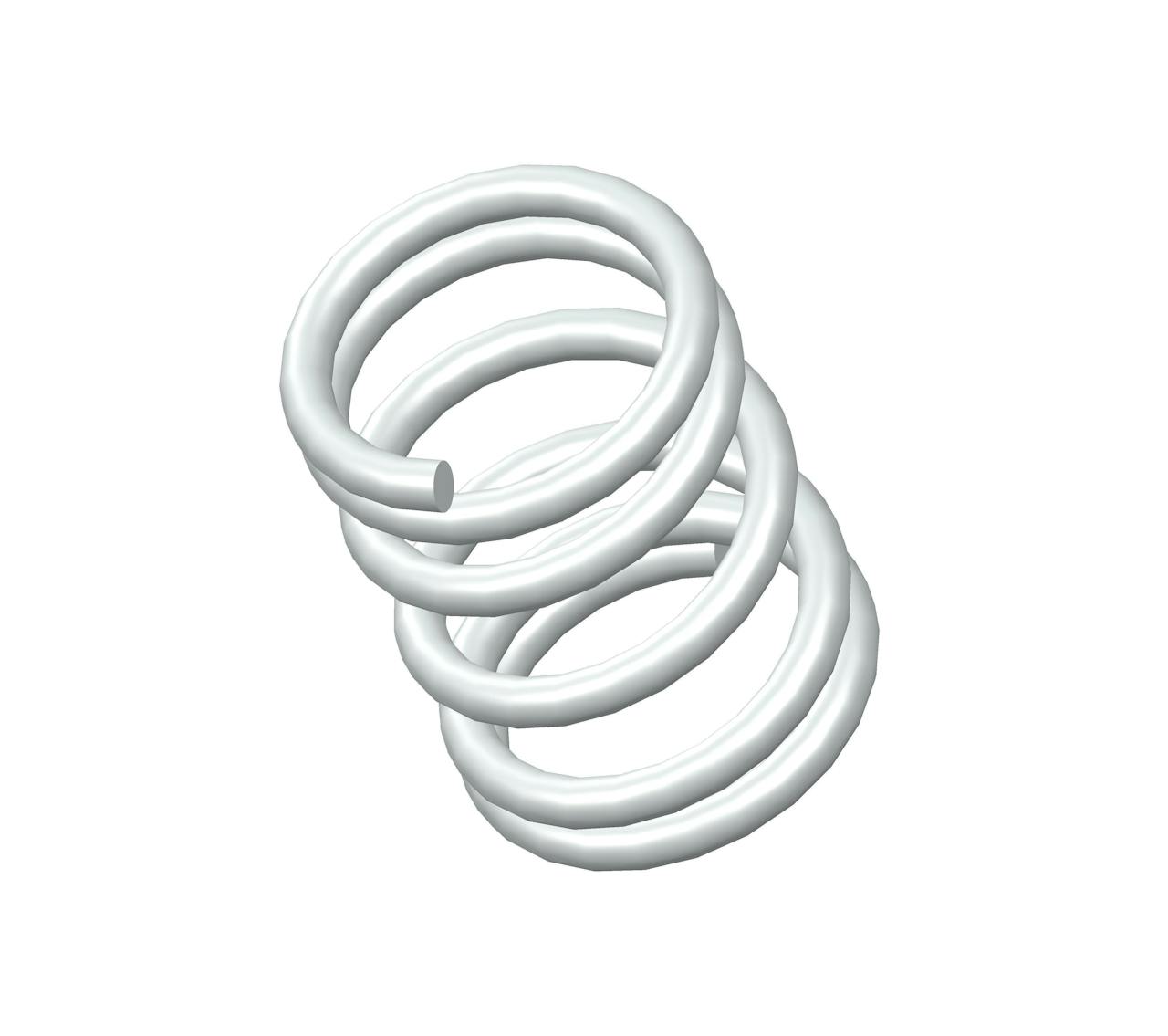

CC-37CS - 0.25" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed ends. This spring features an O.D. of 0.172", and an I.D. of 0.132".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-37 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.25 in |
| Inside Diameter | 0.132 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.172 in |
| Part Type | Standard |
| Rate | 16 lbs/in |
| SKU | CC-37CS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 1.8 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-37 |
| Ends | Closed |
| Finish | None |
| Free Length | 6.35 mm |
| Inside Diameter | 3.35 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.37 mm |
| Part Type | Standard |
| Rate | 2.8 N/mm |
| SKU | CC-37CS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 8.01 N |
| Total Coils | 5.5 |
| Wire Diameter | 0.51 mm |
The compression spring CC-37CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the CC-37 compression spring design exhibits exceptional tensile strength and resilience.
The CC-37 design is manufactured with a free length of 0.25", with an outer diameter of 0.172", an inner diameter of 0.132", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The CC-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring CC-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The CC-37 design is manufactured with a free length of 0.25", with an outer diameter of 0.172", an inner diameter of 0.132", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The CC-37CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring CC-37 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
