CC-15CS - 0.16" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

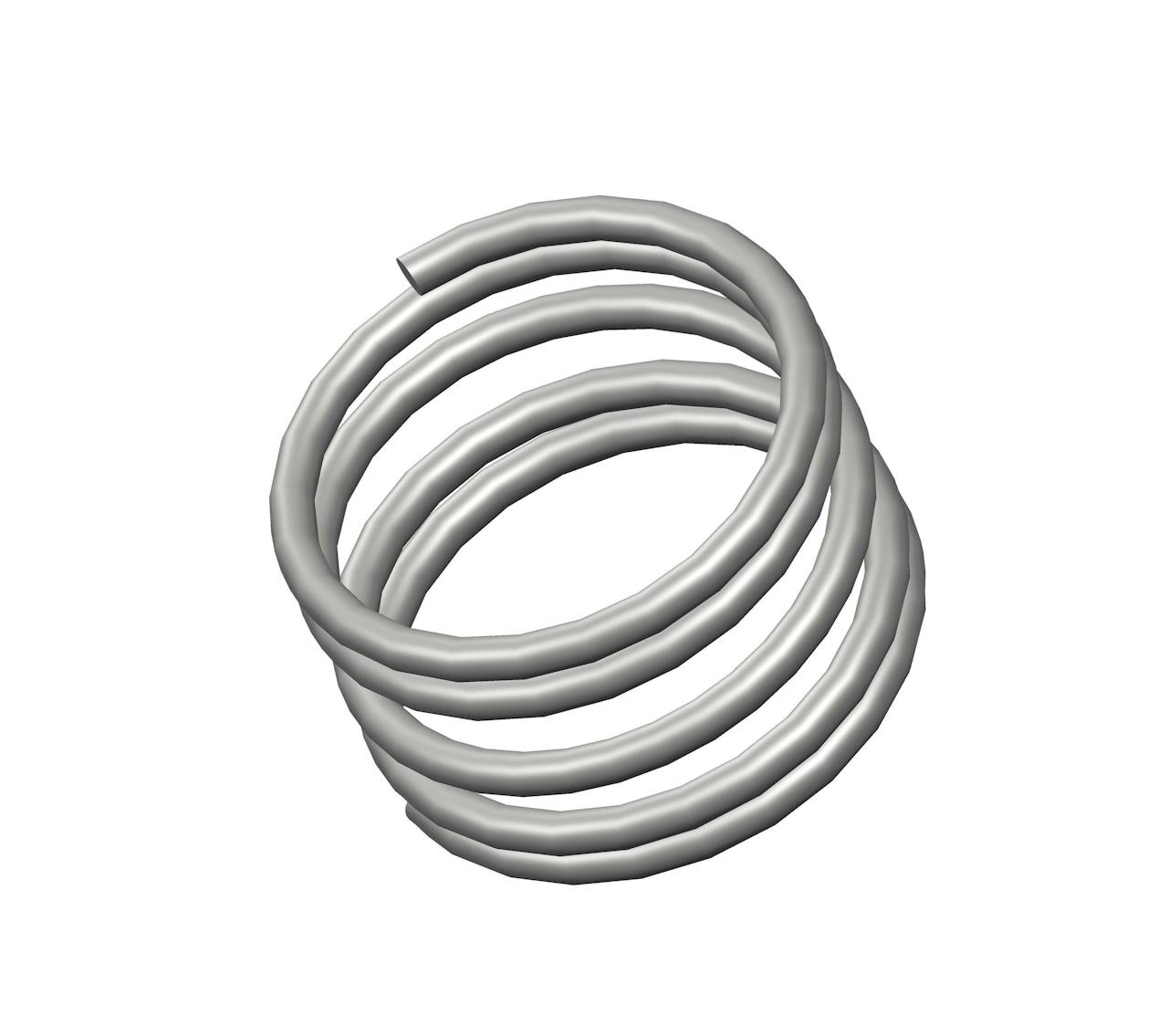

Compression spring manufactured from music wire with 4.75 coils and closed ends. This spring features an O.D. of 0.234", and an I.D. of 0.198".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-15 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.16 in |
| Inside Diameter | 0.198 in |
| Material | Music Wire |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 5.4 lbs/in |
| SKU | CC-15CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.05 in |
| Suggested Max Load | 0.29 lbf |
| Total Coils | 4.75 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | CC-15 |
| Ends | Closed |
| Finish | None |
| Free Length | 4.06 mm |
| Inside Diameter | 5.03 mm |
| Material | Music Wire |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 0.95 N/mm |
| SKU | CC-15CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 1.27 mm |
| Suggested Max Load | 1.29 N |
| Total Coils | 4.75 |
| Wire Diameter | 0.46 mm |
The CC-15 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The CC-15CS compression spring is designed with a free length of 0.63" total of 12 coils, and a rate of 0.11 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The CC-15 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The CC-15CS compression spring is designed with a free length of 0.63" total of 12 coils, and a rate of 0.11 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The CC-15 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
