Century Spring

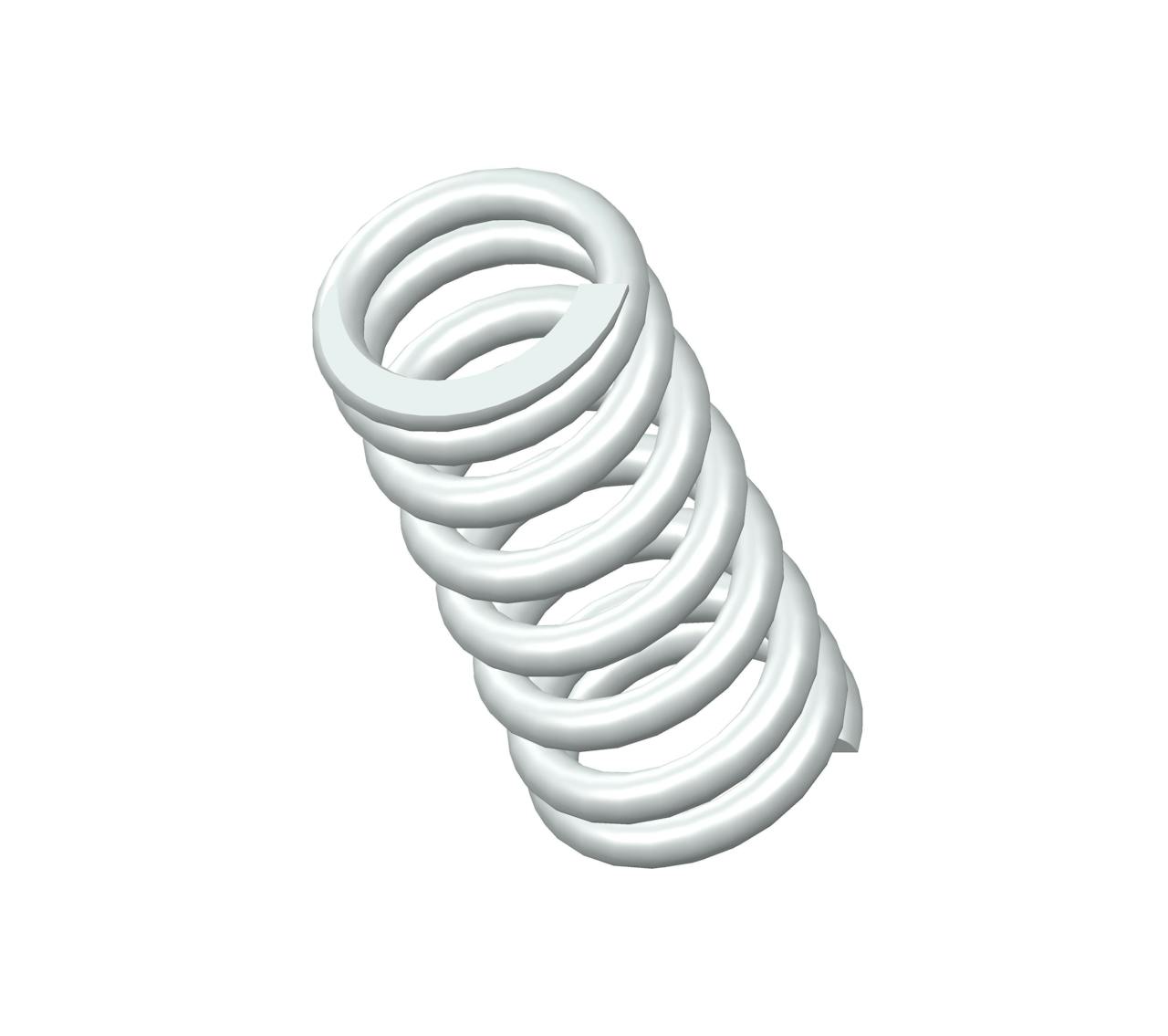

CC-100CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.239".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CC-100
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.239 in
Material 302/304 Stainless Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 62 lbs/in
SKU CC-100CS
Solid Length 0.42 in
Suggested Max Deflection 0.22 in
Suggested Max Load 13 lbf
Total Coils 8
Wire Diameter 0.052 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CC-100
Ends Closed & Ground
Finish None
Free Length 19.05 mm
Inside Diameter 6.07 mm
Material 302/304 Stainless Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 10.86 N/mm
SKU CC-100CS
Solid Length 10.67 mm
Suggested Max Deflection 5.59 mm
Suggested Max Load 57.82 N
Total Coils 8
Wire Diameter 1.32 mm
The CC-100CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.052" diameter 302/304 stainless steel, the CC-100 spring design exhibits reliable strength across its 8 active coils, withstanding repeated compression cycles with a maximum load of 13 lbf without succumbing to fatigue.

We manufacture the CC-100 design to provide a compression spring that is 0.75" long at rest and provides a consistent rate of 62 lbs/in along its recommended maximum of 0.22" deflection. For best results, your application should fully accommodate the inner (0.239") and outer (0.343") diameters of this spring and be designed for its closed & ground end configuration.
