Century Spring

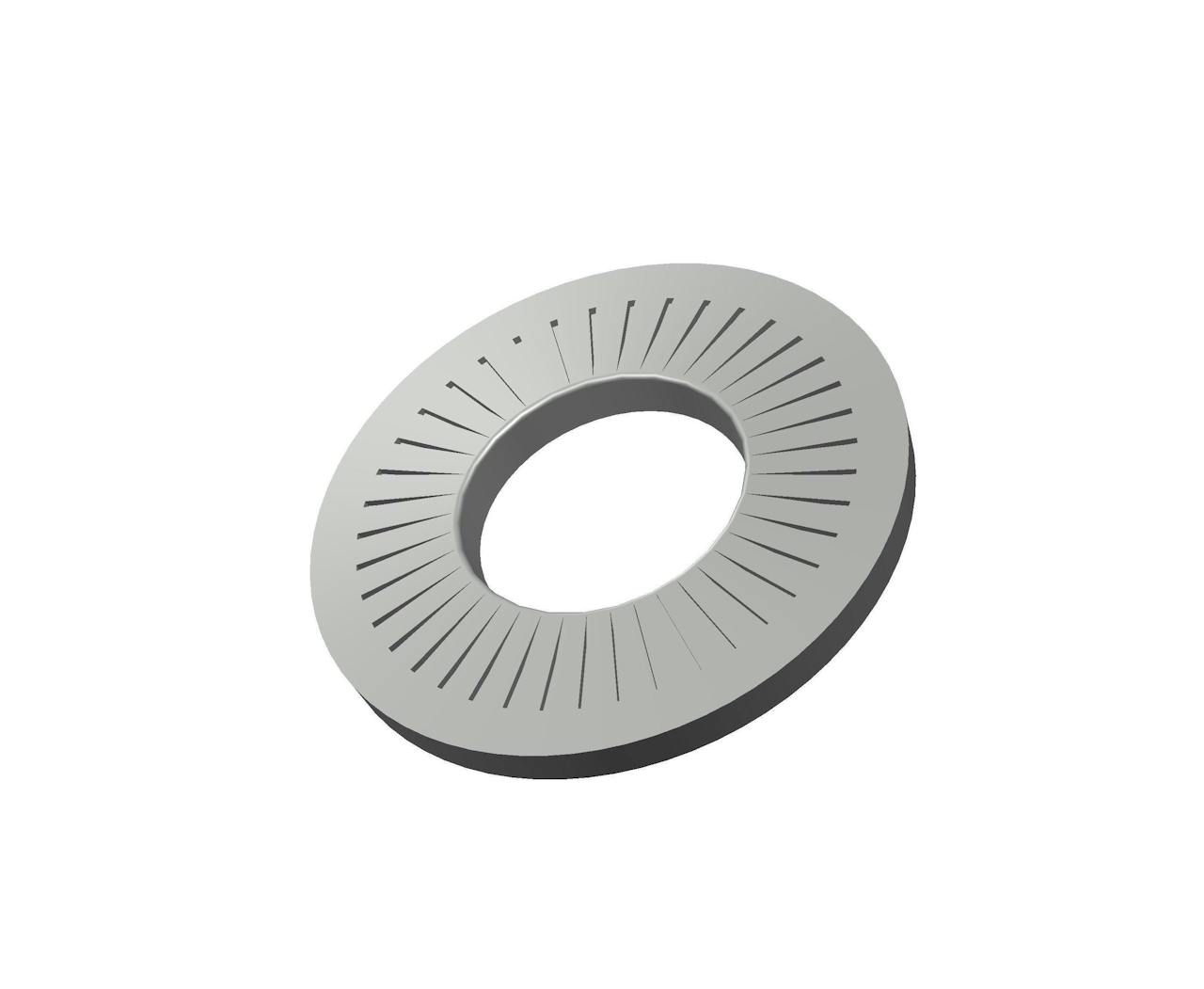

CBS-650921CS - 0.362 Inch ID 0.798 Inch OD Contact Disc Spring

Inventory Status
Estimated Lead Time

Contact disc spring manufactured from Carbon Steel with an inside diameter of 0.362 Inch and an outside diameter of 0.798 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CBS-650921
Finish None
Inside Diameter 0.362 in
Load at Flat 3540 lb
Material Carbon Steel
Measurement Units Standard
Outside Diameter 0.798 in
Outside Height 0.095 in
SKU CBS-650921CS
T 0.062 in
Type Regular
Specs (in metric)
Label Value
Brand Century Spring
Display Name CBS-650921
Finish None
Inside Diameter 9.19 mm
Load at Flat 1605.44 kg
Material Carbon Steel
Measurement Units Standard
Outside Diameter 20.27 mm
Outside Height 2.41 mm
SKU CBS-650921CS
T 1.57 mm
Type Regular
