BB-88CS - 1.06" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

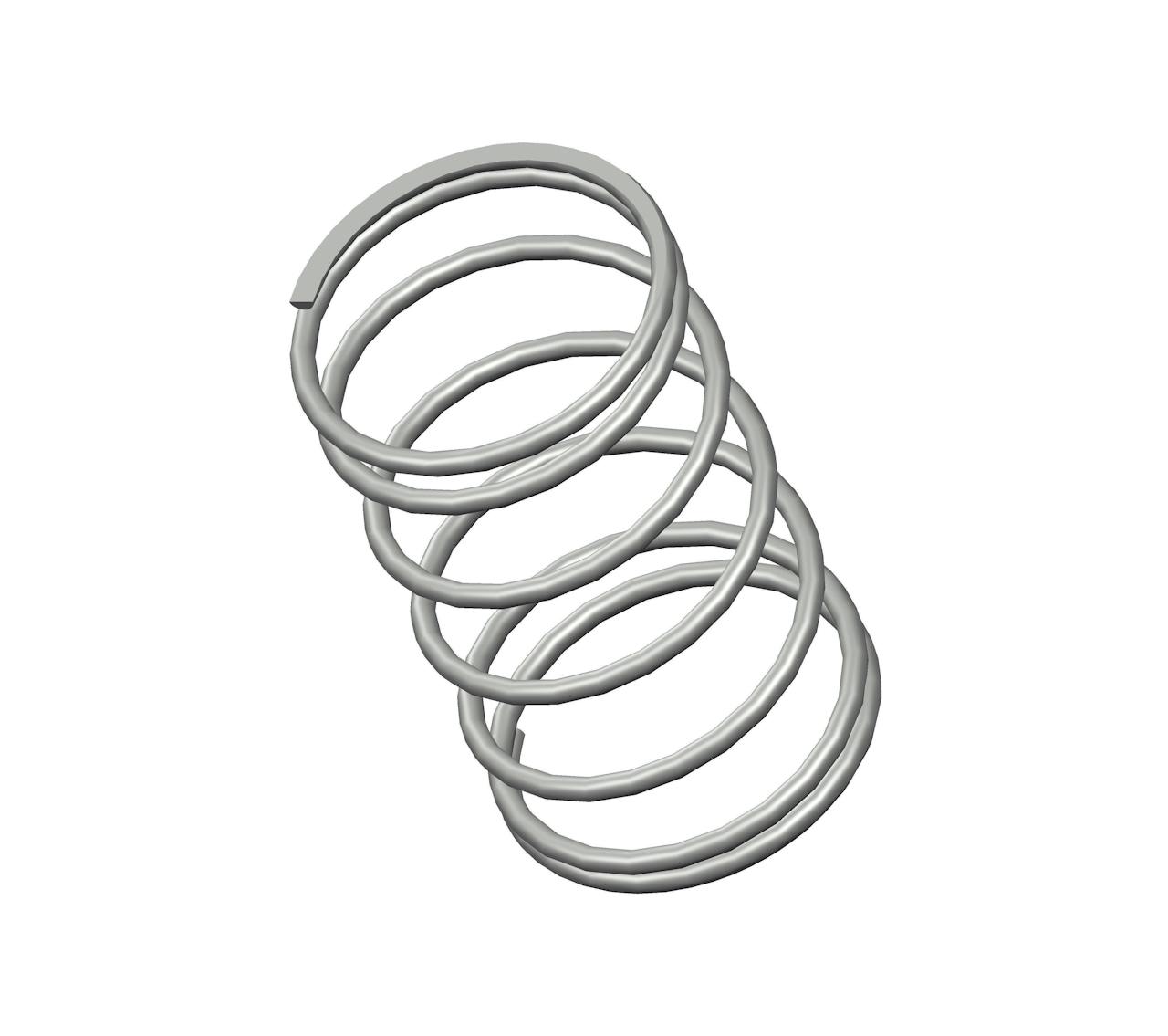

Compression spring manufactured from spring steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.625", and an I.D. of 0.547".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name BB-88
Ends Closed & Ground
Finish Zinc
Free Length 1.06 in
Inside Diameter 0.547 in
Material Spring Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 3.3 lbs/in
SKU BB-88CS
Solid Length 0.27 in
Suggested Max Deflection 0.79 in
Suggested Max Load 2.6 lbf
Total Coils 7
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name BB-88
Ends Closed & Ground
Finish Zinc
Free Length 26.92 mm
Inside Diameter 13.89 mm
Material Spring Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 0.58 N/mm
SKU BB-88CS
Solid Length 6.86 mm
Suggested Max Deflection 20.07 mm
Suggested Max Load 11.56 N
Total Coils 7
Wire Diameter 0.99 mm
The BB-88 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The BB-88CS compression spring is designed with a free length of 0.47" total of 3 coils, and a rate of 89 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The BB-88 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
