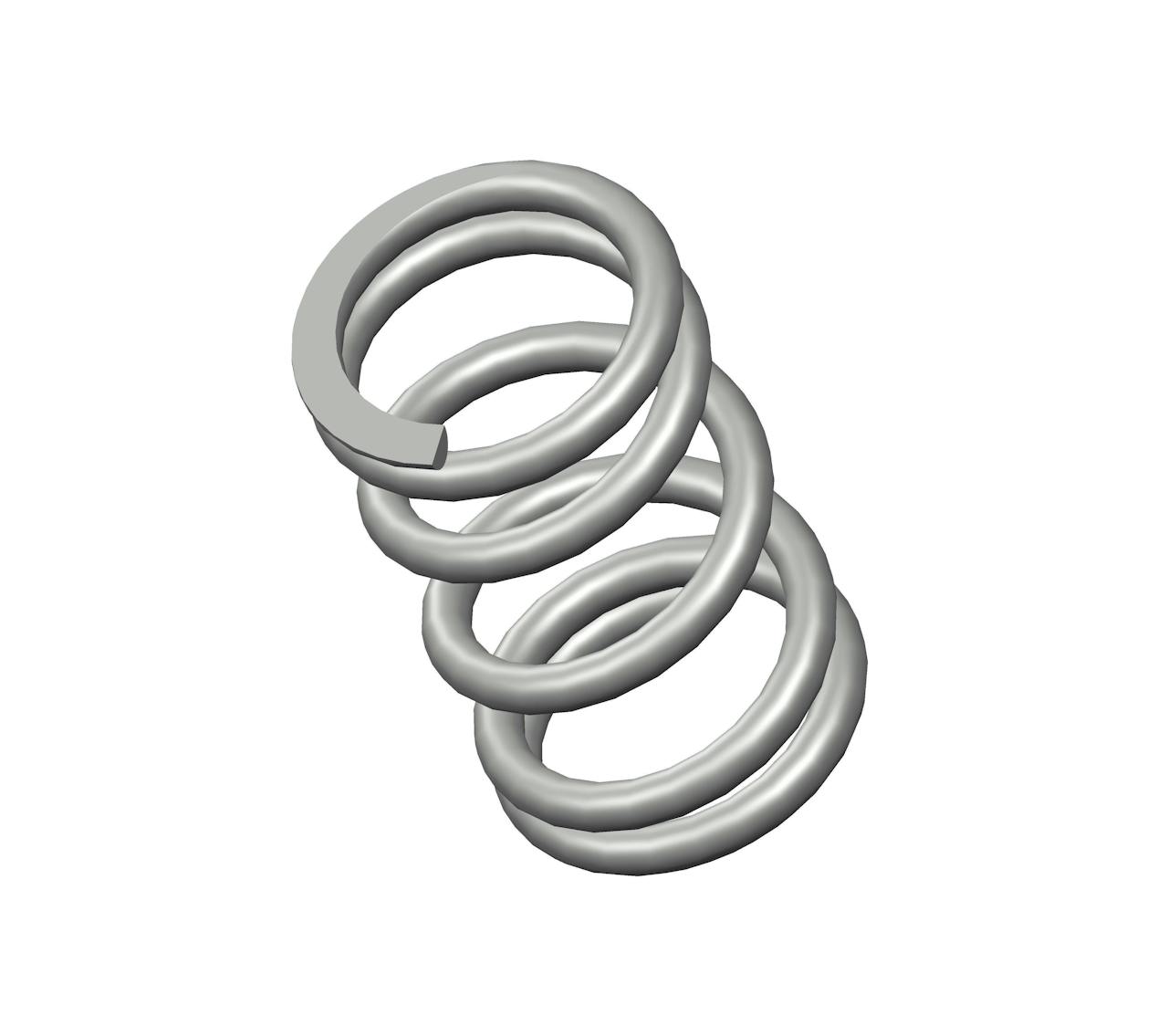

BB-65CS - 1" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.593", and an I.D. of 0.443".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-65 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1 in |
| Inside Diameter | 0.443 in |
| Material | Spring Steel |
| Outside Diameter | 0.593 in |
| Part Type | Standard |
| Rate | 93 lbs/in |
| SKU | BB-65CS |
| Solid Length | 0.41 in |
| Suggested Max Deflection | 0.26 in |
| Suggested Max Load | 24 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.075 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-65 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 25.4 mm |
| Inside Diameter | 11.25 mm |
| Material | Spring Steel |
| Outside Diameter | 15.06 mm |
| Part Type | Standard |
| Rate | 16.28 N/mm |
| SKU | BB-65CS |
| Solid Length | 10.41 mm |
| Suggested Max Deflection | 6.6 mm |
| Suggested Max Load | 106.75 N |
| Total Coils | 5.5 |
| Wire Diameter | 1.91 mm |
The compression spring BB-65CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the BB-65 compression spring design exhibits exceptional tensile strength and resilience.
The BB-65 design is manufactured with a free length of 1", with an outer diameter of 0.593", an inner diameter of 0.443", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 93 lbs/in.
The BB-65CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-65 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The BB-65 design is manufactured with a free length of 1", with an outer diameter of 0.593", an inner diameter of 0.443", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 93 lbs/in.
The BB-65CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-65 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
