Century Spring

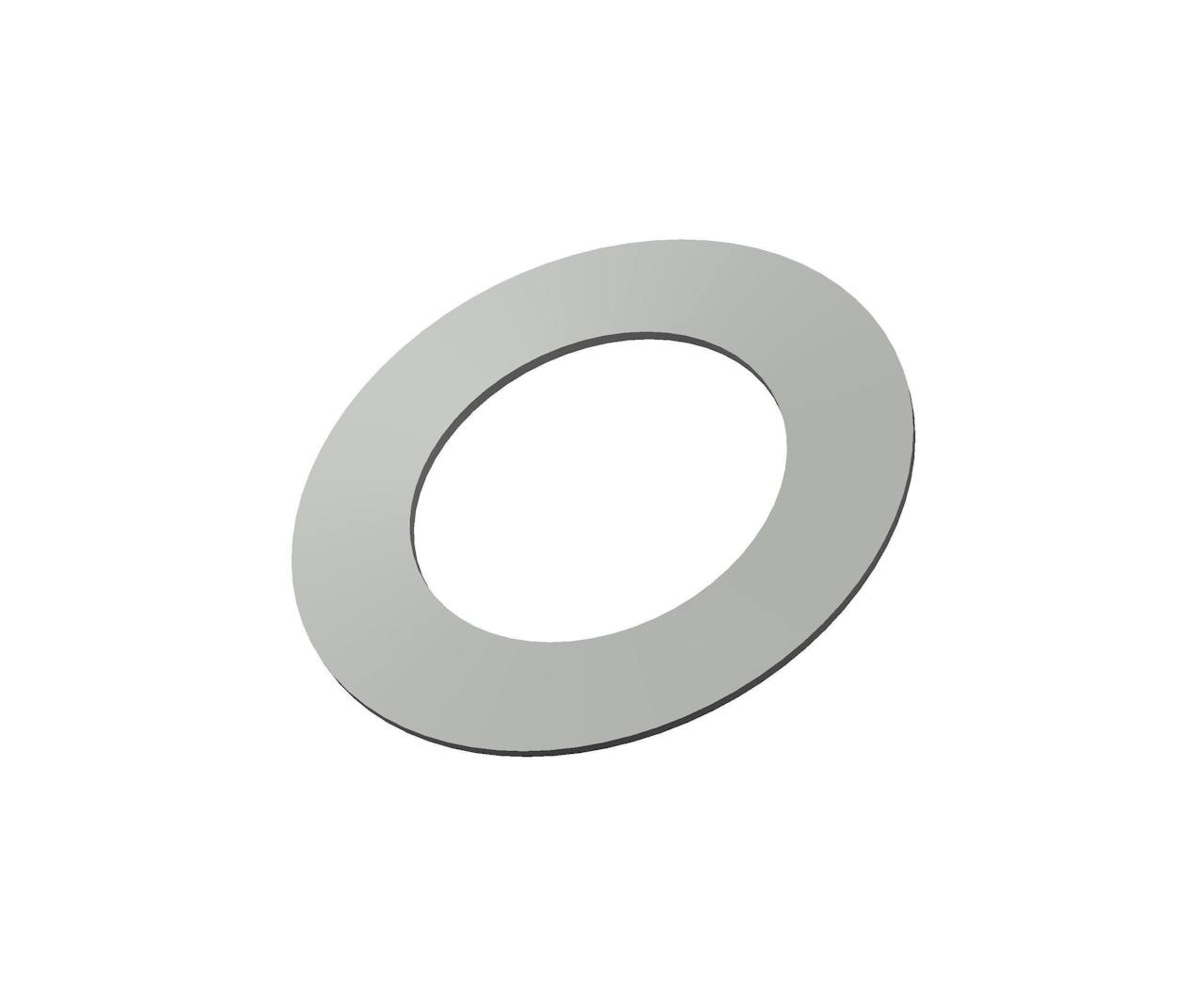

BB-609CS - 0.563 Inch ID 0.933 Inch OD 1075 Steel Disc Spring Washer

Inventory Status
Estimated Lead Time

Disc spring manufactured from 1075 Steel with an inside diameter of 0.563 Inch and an outside diameter of 0.933 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Ball Bearing Size 609, EL-9
Brand Century Spring
Deflection at 75% Height 0.015 in
Display Name BB-609
Finish None
Inside Diameter 0.563 in
Load at 75% Height 18.5 lb
Material 1075 Steel
Measurement Units Standard
Outside Diameter 0.933 in
Outside Height 0.035 in
SKU BB-609CS
T 0.016 in
Specs (in metric)
Label Value
Ball Bearing Size 609, EL-9
Brand Century Spring
Deflection at 75% Height 0.38 mm
Display Name BB-609
Finish None
Inside Diameter 14.3 mm
Load at 75% Height 8.39 kg
Material 1075 Steel
Measurement Units Standard
Outside Diameter 23.7 mm
Outside Height 0.89 mm
SKU BB-609CS
T 0.41 mm
