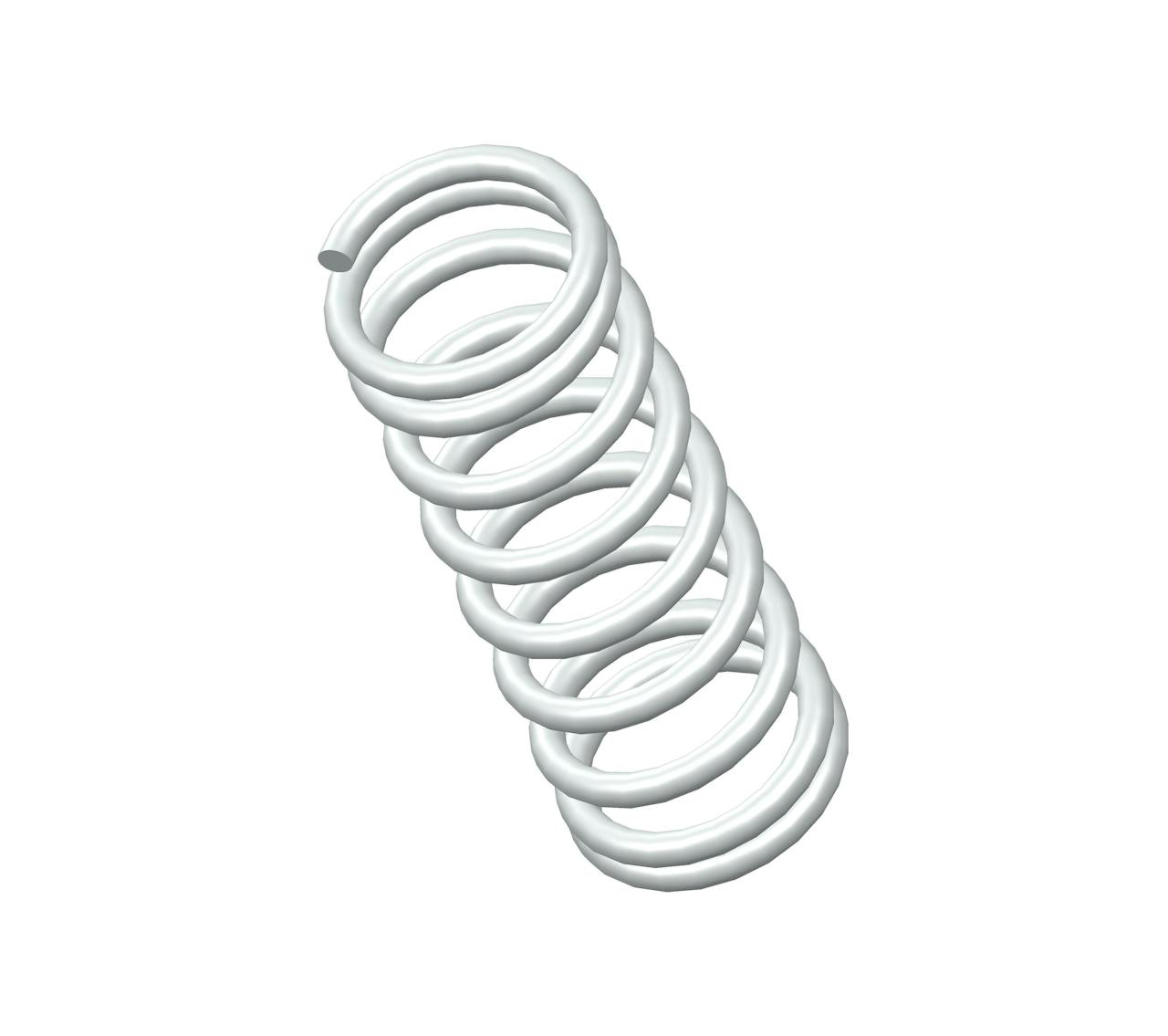

BB-12CS - 0.31" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 9 coils and closed ends. This spring features an O.D. of 0.109", and an I.D. of 0.083".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.31 in |
| Inside Diameter | 0.083 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.109 in |
| Part Type | Standard |
| Rate | 5.8 lbs/in |
| SKU | BB-12CS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.14 in |
| Suggested Max Load | 0.83 lbf |
| Total Coils | 9 |
| Wire Diameter | 0.013 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | BB-12 |
| Ends | Closed |
| Finish | None |
| Free Length | 7.87 mm |
| Inside Diameter | 2.11 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.77 mm |
| Part Type | Standard |
| Rate | 1.02 N/mm |
| SKU | BB-12CS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 3.56 mm |
| Suggested Max Load | 3.69 N |
| Total Coils | 9 |
| Wire Diameter | 0.33 mm |
The compression spring BB-12CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the BB-12 compression spring design exhibits exceptional tensile strength and resilience.
The BB-12 design is manufactured with a free length of 0.31", with an outer diameter of 0.109", an inner diameter of 0.083", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.8 lbs/in.
The BB-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The BB-12 design is manufactured with a free length of 0.31", with an outer diameter of 0.109", an inner diameter of 0.083", and a total of 9 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.8 lbs/in.
The BB-12CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring BB-12 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
