BB-10CS - 1.41" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

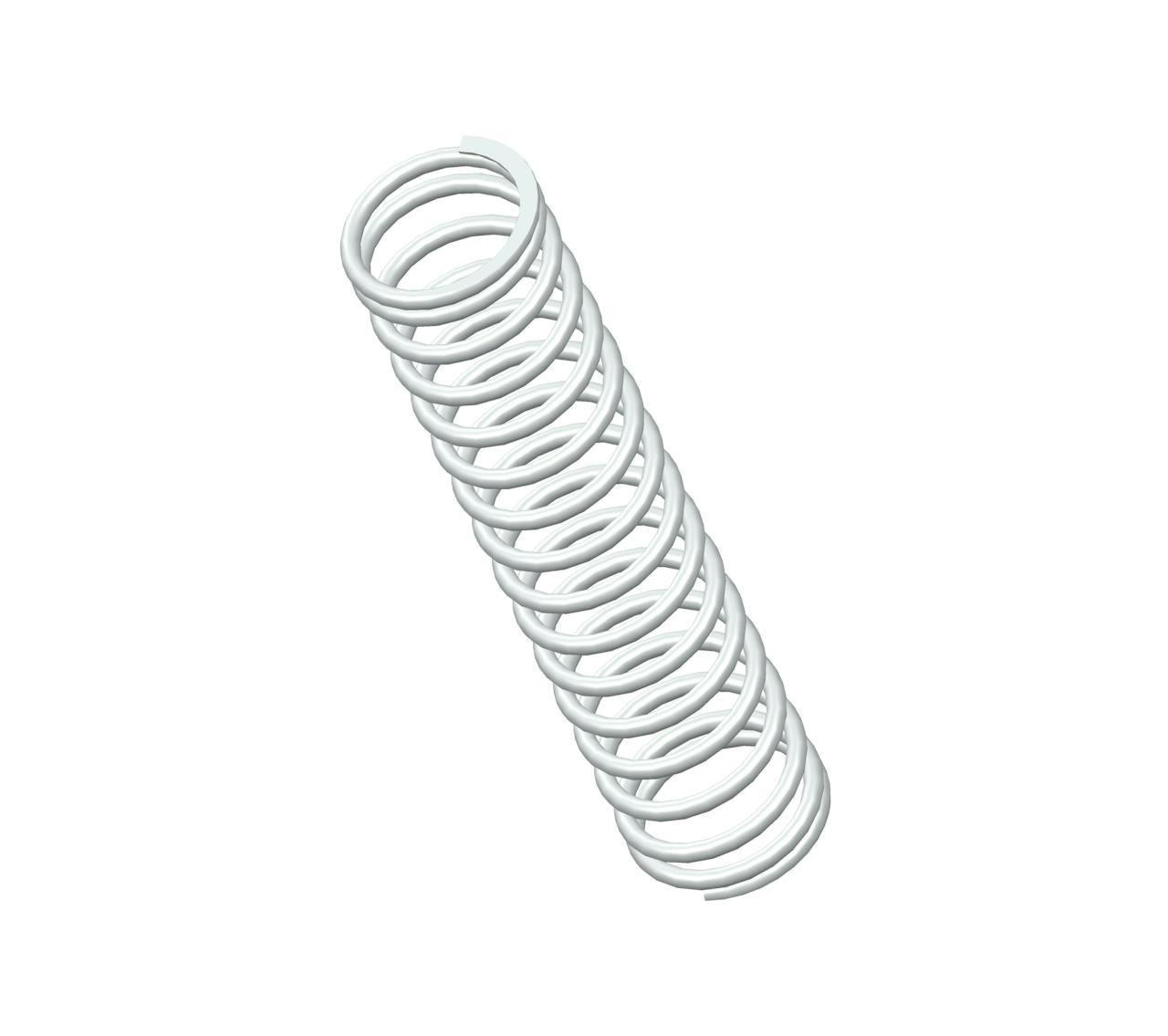

Compression spring manufactured from 302/304 stainless steel with 16.5 coils and closed & ground ends. This spring features an O.D. of 0.312", and an I.D. of 0.252".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name BB-10
Ends Closed & Ground
Finish None
Free Length 1.41 in
Inside Diameter 0.252 in
Material 302/304 Stainless Steel
Outside Diameter 0.312 in
Part Type Standard
Rate 3.2 lbs/in
SKU BB-10CS
Solid Length 0.5 in
Suggested Max Deflection 0.91 in
Suggested Max Load 2.9 lbf
Total Coils 16.5
Wire Diameter 0.03 in
The BB-10 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The BB-10CS compression spring is designed with a free length of 0.88" total of 9.5 coils, and a rate of 1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The BB-10 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
