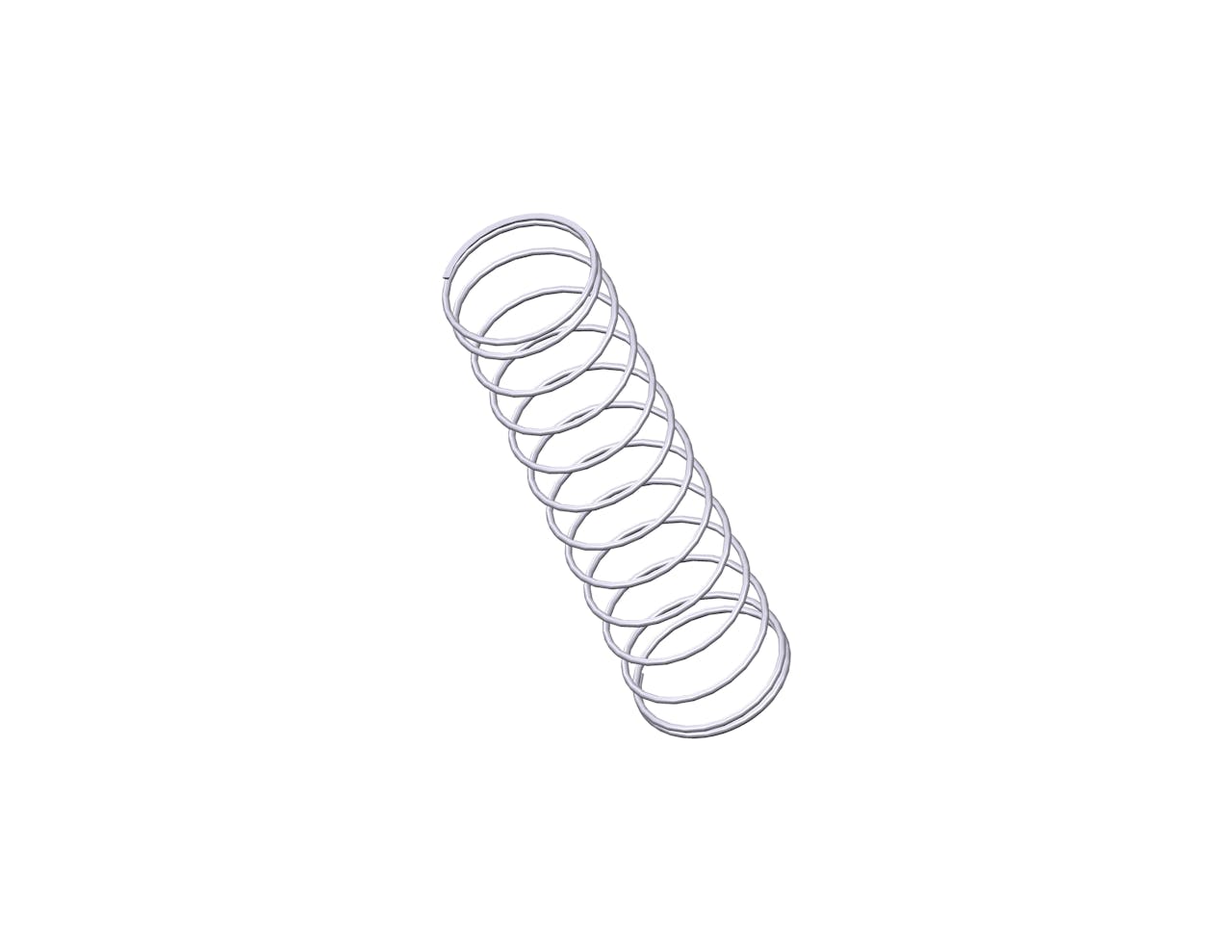

B9-55CS - 3.5" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.906", and an I.D. of 0.826".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B9-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.5 in |
| Inside Diameter | 0.826 in |
| Material | Spring Steel |
| Outside Diameter | 0.906 in |
| Part Type | Standard |
| Rate | 0.52 lbs/in |
| SKU | B9-55CS |
| Solid Length | 0.52 in |
| Suggested Max Deflection | 3 in |
| Suggested Max Load | 1.5 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B9-55 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 88.9 mm |
| Inside Diameter | 20.98 mm |
| Material | Spring Steel |
| Outside Diameter | 23.01 mm |
| Part Type | Standard |
| Rate | 0.09 N/mm |
| SKU | B9-55CS |
| Solid Length | 13.21 mm |
| Suggested Max Deflection | 76.2 mm |
| Suggested Max Load | 6.67 N |
| Total Coils | 13 |
| Wire Diameter | 1.02 mm |
The compression spring B9-55CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B9-55 compression spring design exhibits exceptional tensile strength and resilience.
The B9-55 design is manufactured with a free length of 3.5", with an outer diameter of 0.906", an inner diameter of 0.826", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.52 lbs/in.
The B9-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B9-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B9-55 design is manufactured with a free length of 3.5", with an outer diameter of 0.906", an inner diameter of 0.826", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.52 lbs/in.
The B9-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B9-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
