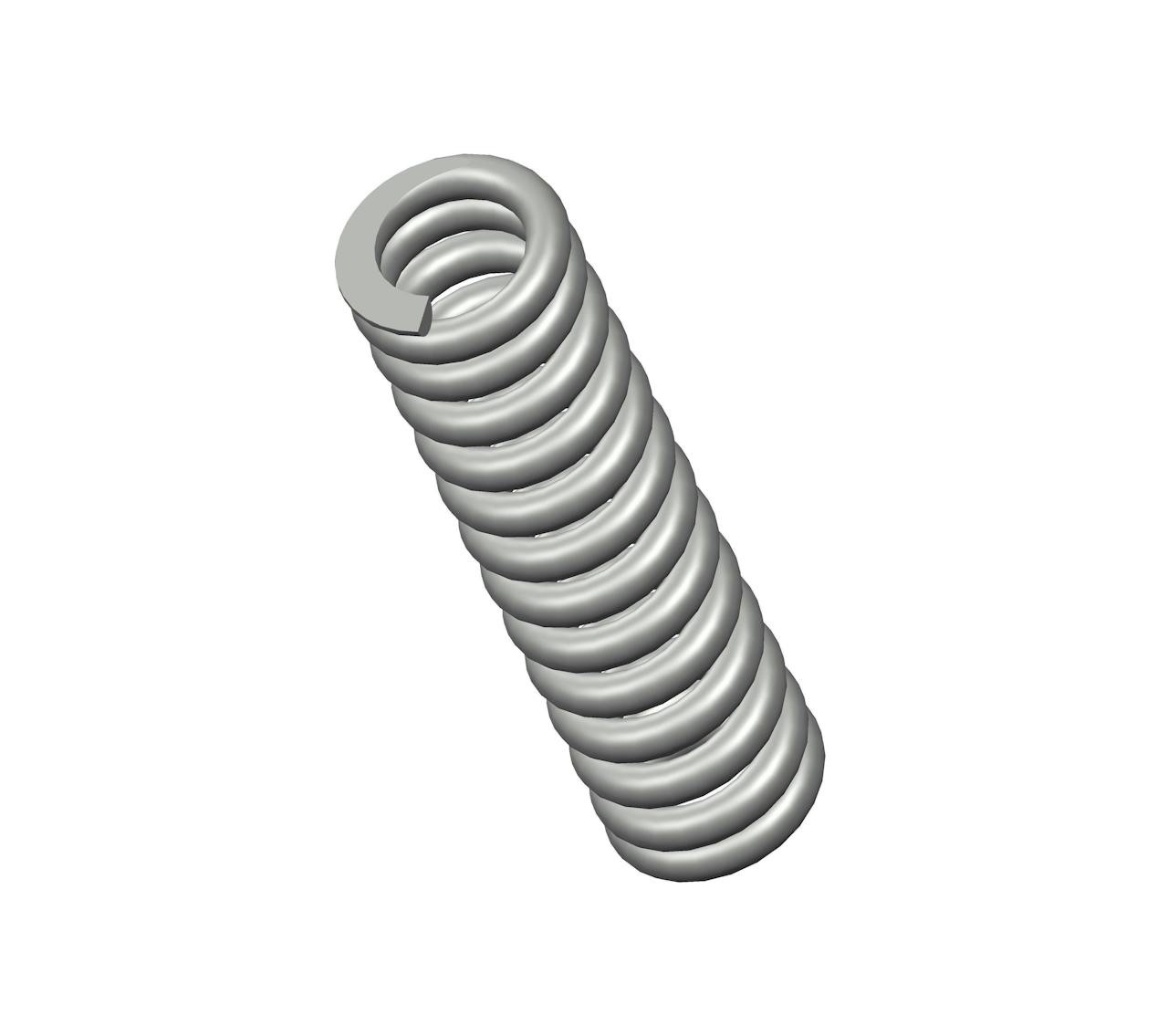

B9-48CS - 3.88" Spring Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from spring steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 1.031", and an I.D. of 0.637".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B9-48 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.88 in |
| Inside Diameter | 0.637 in |
| Material | Spring Steel |
| Outside Diameter | 1.031 in |
| Part Type | Standard |
| Rate | 325 lbs/in |
| SKU | B9-48CS |
| Solid Length | 2.66 in |
| Suggested Max Deflection | 0.62 in |
| Suggested Max Load | 200 lbf |
| Total Coils | 13.5 |
| Wire Diameter | 0.197 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B9-48 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 98.55 mm |
| Inside Diameter | 16.18 mm |
| Material | Spring Steel |
| Outside Diameter | 26.19 mm |
| Part Type | Standard |
| Rate | 56.91 N/mm |
| SKU | B9-48CS |
| Solid Length | 67.56 mm |
| Suggested Max Deflection | 15.75 mm |
| Suggested Max Load | 889.6 N |
| Total Coils | 13.5 |
| Wire Diameter | 5 mm |
The compression spring B9-48CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B9-48 compression spring design exhibits exceptional tensile strength and resilience.
The B9-48 design is manufactured with a free length of 3.88", with an outer diameter of 1.031", an inner diameter of 0.637", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 325 lbs/in.
The B9-48CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B9-48 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
