B9-46CS - 0.69" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

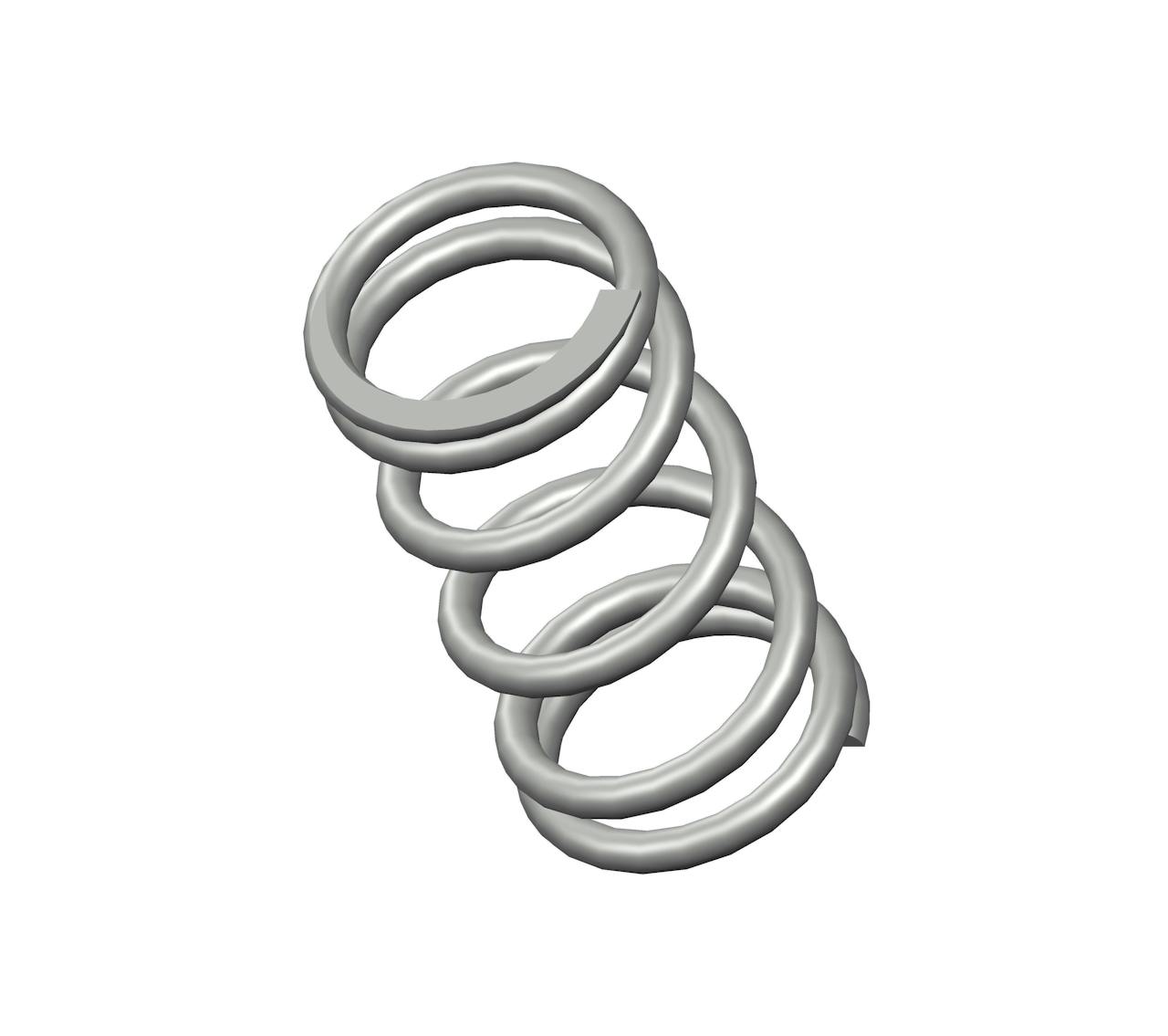

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.261".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B9-46
Ends Closed & Ground
Finish None
Free Length 0.69 in
Inside Diameter 0.261 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 37 lbs/in
SKU B9-46CS
Solid Length 0.25 in
Suggested Max Deflection 0.21 in
Suggested Max Load 7.6 lbf
Total Coils 6
Wire Diameter 0.041 in
The B9-46 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B9-46CS compression spring is designed with a free length of 1.19" total of 10.5 coils, and a rate of 1.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B9-46 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
