B9-35CS - 0.44" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

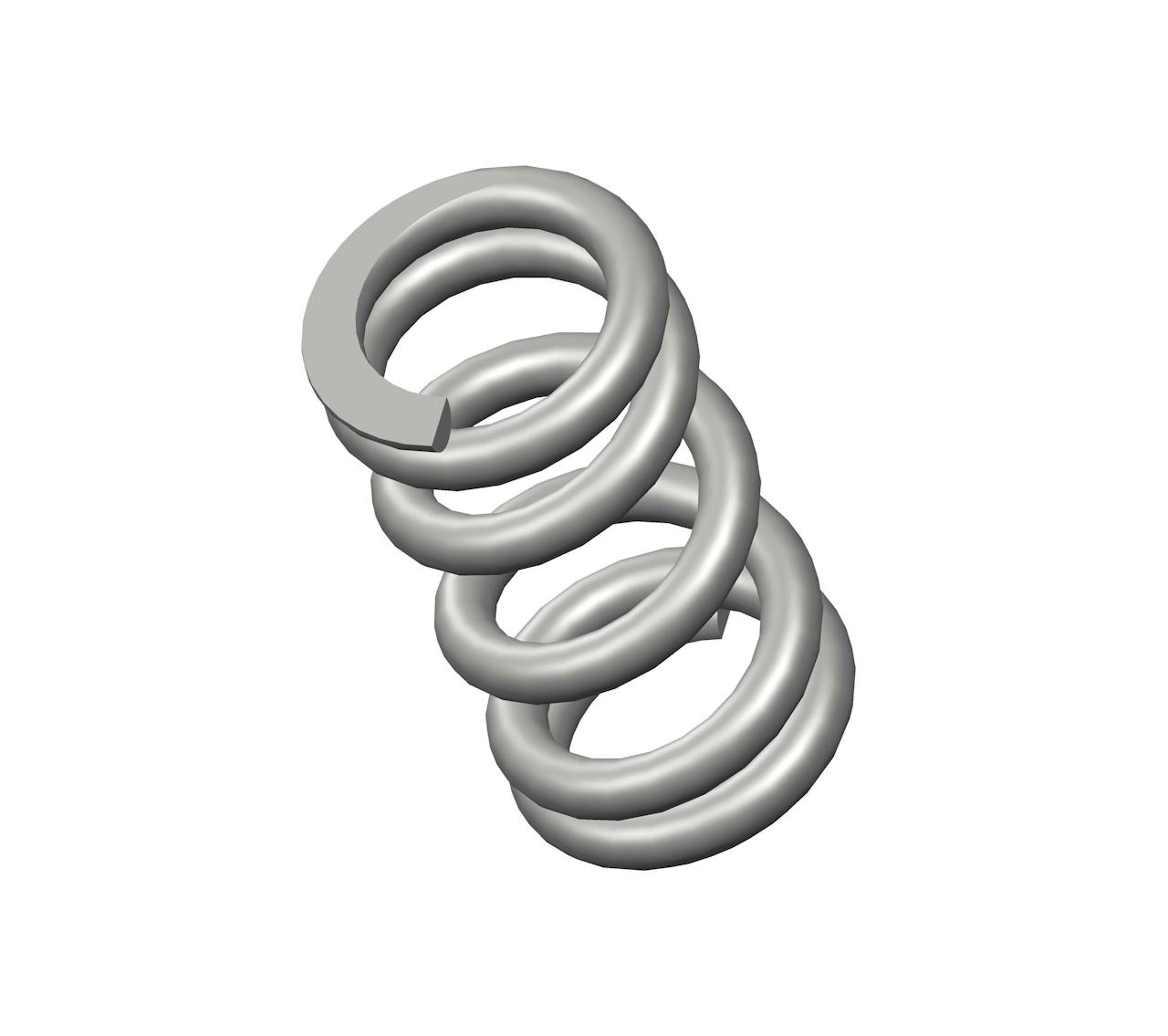

Compression spring manufactured from spring steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.234", and an I.D. of 0.156".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B9-35 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.44 in |
| Inside Diameter | 0.156 in |
| Material | Spring Steel |
| Outside Diameter | 0.234 in |
| Part Type | Standard |
| Rate | 128 lbs/in |
| SKU | B9-35CS |
| Solid Length | 0.21 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 9.3 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B9-35 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.18 mm |
| Inside Diameter | 3.96 mm |
| Material | Spring Steel |
| Outside Diameter | 5.94 mm |
| Part Type | Standard |
| Rate | 22.41 N/mm |
| SKU | B9-35CS |
| Solid Length | 5.33 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 41.37 N |
| Total Coils | 5.5 |
| Wire Diameter | 0.99 mm |
The compression spring B9-35CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B9-35 compression spring design exhibits exceptional tensile strength and resilience.
The B9-35 design is manufactured with a free length of 0.44", with an outer diameter of 0.234", an inner diameter of 0.156", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 128 lbs/in.
The B9-35CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B9-35 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B9-35 design is manufactured with a free length of 0.44", with an outer diameter of 0.234", an inner diameter of 0.156", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 128 lbs/in.
The B9-35CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B9-35 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
