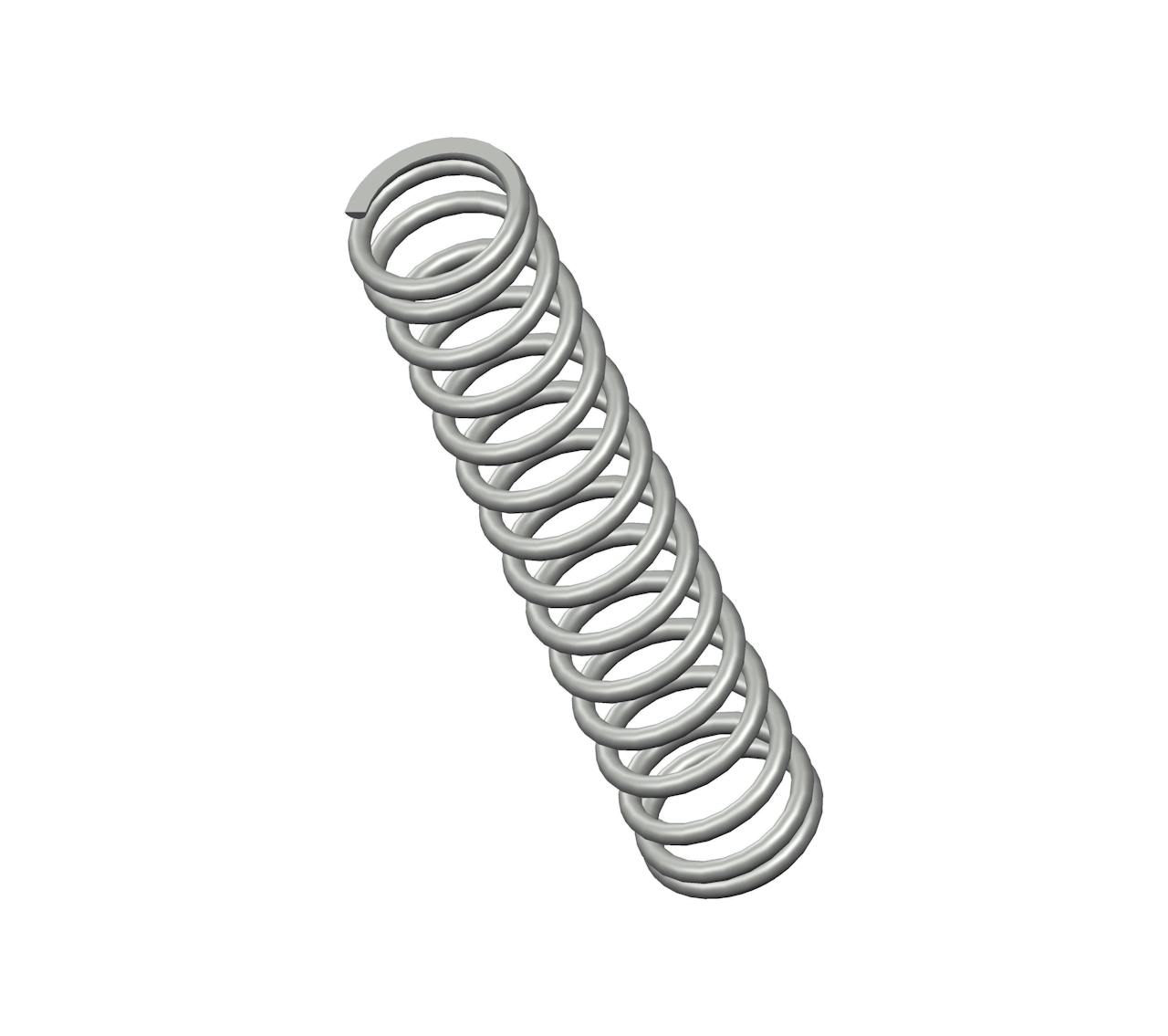

B9-10CS - 1.5" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 15 coils and closed & ground ends. This spring features an O.D. of 0.296", and an I.D. of 0.226".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B9-10
Ends Closed & Ground
Finish None
Free Length 1.5 in
Inside Diameter 0.226 in
Material Spring Steel
Outside Diameter 0.296 in
Part Type Standard
Rate 9.3 lbs/in
SKU B9-10CS
Solid Length 0.53 in
Suggested Max Deflection 0.59 in
Suggested Max Load 5.5 lbf
Total Coils 15
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B9-10
Ends Closed & Ground
Finish None
Free Length 38.1 mm
Inside Diameter 5.74 mm
Material Spring Steel
Outside Diameter 7.52 mm
Part Type Standard
Rate 1.63 N/mm
SKU B9-10CS
Solid Length 13.46 mm
Suggested Max Deflection 14.99 mm
Suggested Max Load 24.46 N
Total Coils 15
Wire Diameter 0.89 mm
The compression spring B9-10CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B9-10 compression spring design exhibits exceptional tensile strength and resilience.

The B9-10 design is manufactured with a free length of 1.5", with an outer diameter of 0.296", an inner diameter of 0.226", and a total of 15 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.3 lbs/in.

The B9-10CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B9-10 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
