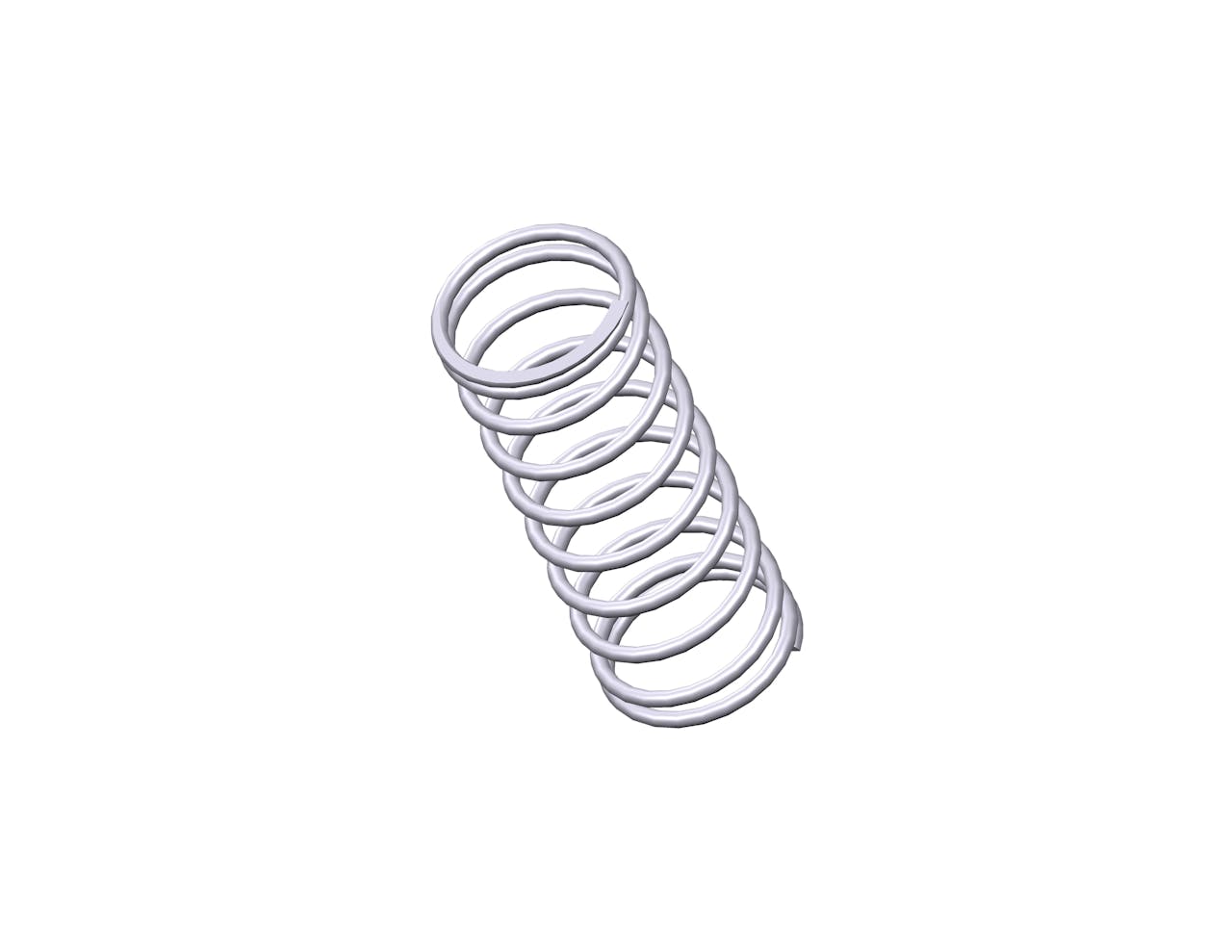

B8-68CS - 4.09" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 1.546", and an I.D. of 1.296".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-68 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 4.09 in |
| Inside Diameter | 1.296 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.546 in |
| Part Type | Standard |
| Rate | 14 lbs/in |
| SKU | B8-68CS |
| Solid Length | 1.25 in |
| Suggested Max Deflection | 2.7 in |
| Suggested Max Load | 37 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.125 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-68 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 103.89 mm |
| Inside Diameter | 32.92 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 39.27 mm |
| Part Type | Standard |
| Rate | 2.45 N/mm |
| SKU | B8-68CS |
| Solid Length | 31.75 mm |
| Suggested Max Deflection | 68.58 mm |
| Suggested Max Load | 164.58 N |
| Total Coils | 10 |
| Wire Diameter | 3.18 mm |
The compression spring B8-68CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the B8-68 compression spring design exhibits exceptional tensile strength and resilience.
The B8-68 design is manufactured with a free length of 4.09", with an outer diameter of 1.546", an inner diameter of 1.296", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The B8-68CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-68 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B8-68 design is manufactured with a free length of 4.09", with an outer diameter of 1.546", an inner diameter of 1.296", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 14 lbs/in.
The B8-68CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-68 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
