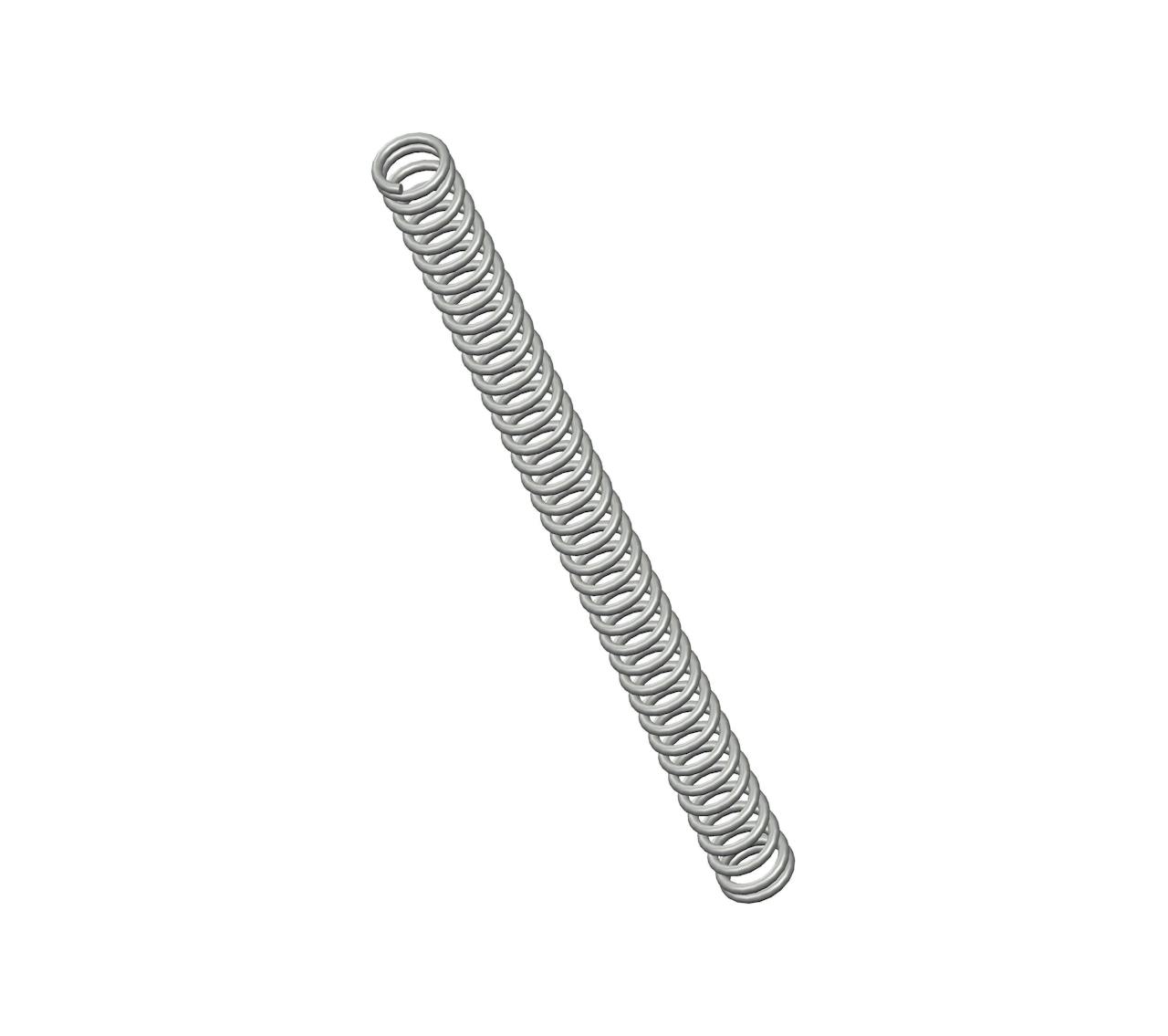

B8-55CS - 4.88" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 37.5 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.247".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B8-55
Ends Closed
Finish Zinc
Free Length 4.88 in
Inside Diameter 0.247 in
Material Spring Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 8.4 lbs/in
SKU B8-55CS
Solid Length 1.85 in
Suggested Max Deflection 1.4 in
Suggested Max Load 12 lbf
Total Coils 37.5
Wire Diameter 0.048 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B8-55
Ends Closed
Finish Zinc
Free Length 123.95 mm
Inside Diameter 6.27 mm
Material Spring Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 1.47 N/mm
SKU B8-55CS
Solid Length 46.99 mm
Suggested Max Deflection 35.56 mm
Suggested Max Load 53.38 N
Total Coils 37.5
Wire Diameter 1.22 mm
The compression spring B8-55CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B8-55 compression spring design exhibits exceptional tensile strength and resilience.

The B8-55 design is manufactured with a free length of 4.88", with an outer diameter of 0.343", an inner diameter of 0.247", and a total of 37.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.4 lbs/in.

The B8-55CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B8-55 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
