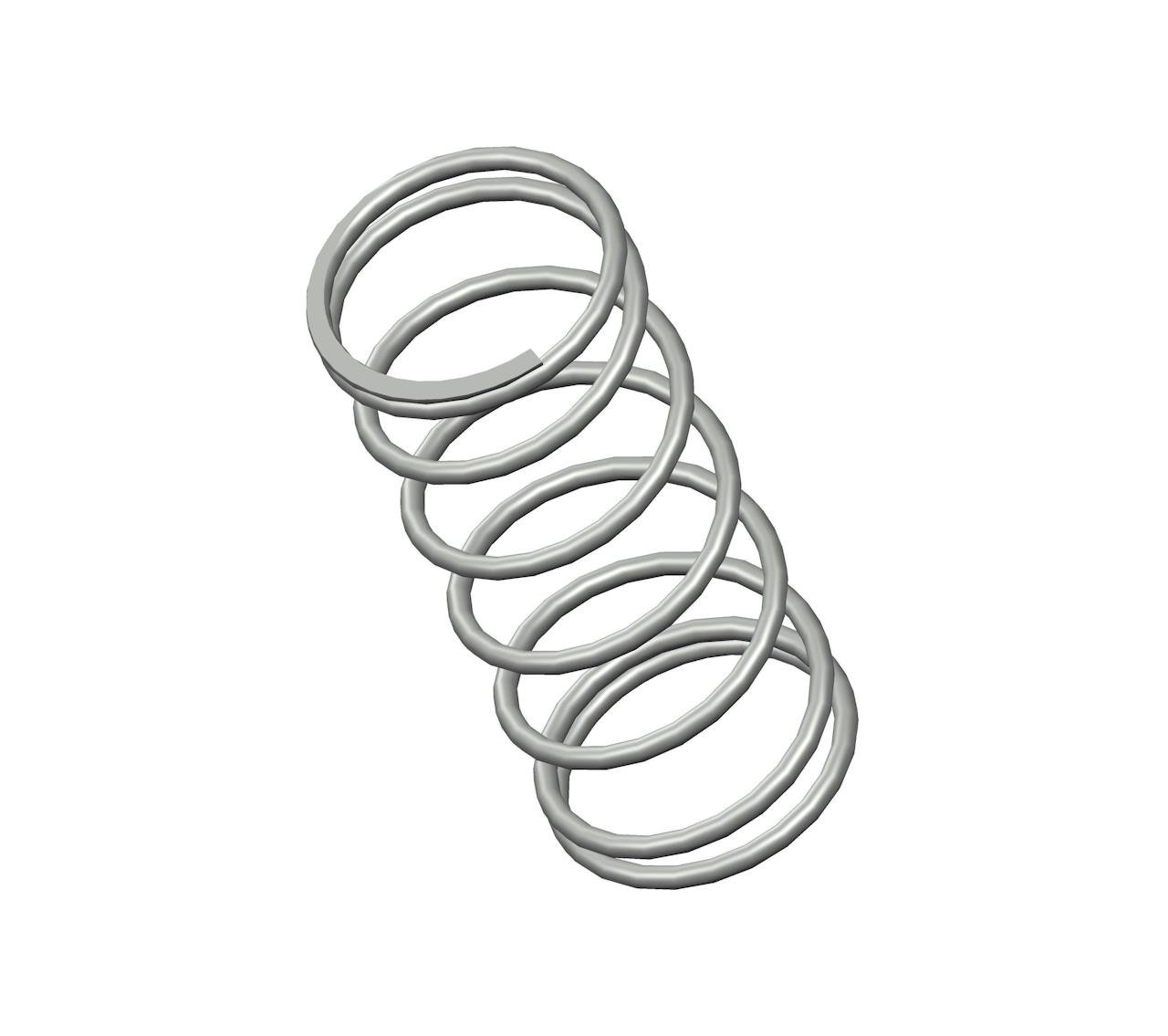

B8-52CS - 1.91" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.75 coils and closed & ground ends. This spring features an O.D. of 0.796", and an I.D. of 0.68".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-52 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.91 in |
| Inside Diameter | 0.68 in |
| Material | Spring Steel |
| Outside Diameter | 0.796 in |
| Part Type | Standard |
| Rate | 7 lbs/in |
| SKU | B8-52CS |
| Solid Length | 0.45 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 8.9 lbf |
| Total Coils | 7.75 |
| Wire Diameter | 0.058 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-52 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 48.51 mm |
| Inside Diameter | 17.27 mm |
| Material | Spring Steel |
| Outside Diameter | 20.22 mm |
| Part Type | Standard |
| Rate | 1.23 N/mm |
| SKU | B8-52CS |
| Solid Length | 11.43 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 39.59 N |
| Total Coils | 7.75 |
| Wire Diameter | 1.47 mm |
The compression spring B8-52CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B8-52 compression spring design exhibits exceptional tensile strength and resilience.
The B8-52 design is manufactured with a free length of 1.91", with an outer diameter of 0.796", an inner diameter of 0.68", and a total of 7.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 7 lbs/in.
The B8-52CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-52 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B8-52 design is manufactured with a free length of 1.91", with an outer diameter of 0.796", an inner diameter of 0.68", and a total of 7.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 7 lbs/in.
The B8-52CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-52 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
