B8-39CS - 1.09" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

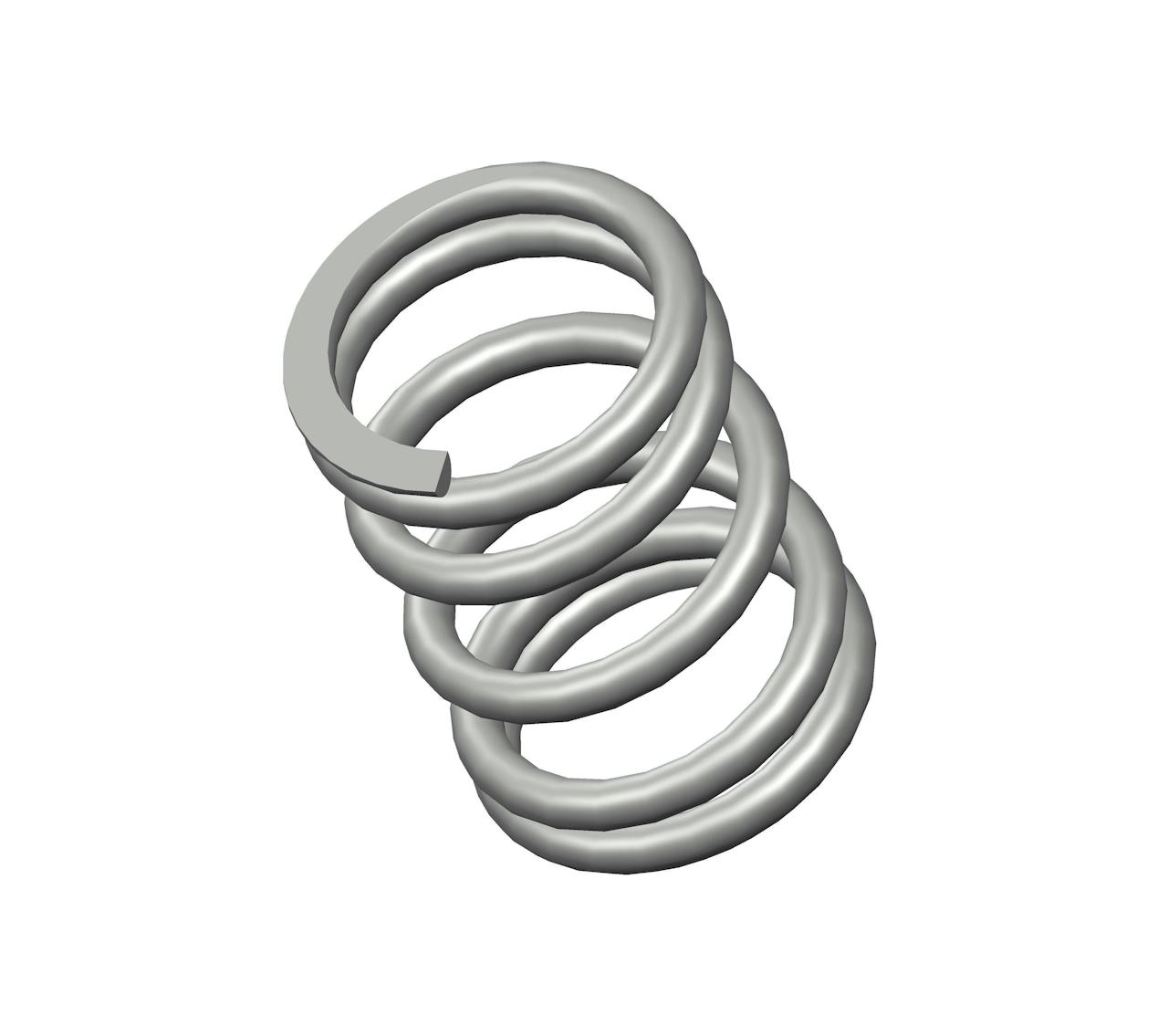

Compression spring manufactured from spring steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.57".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B8-39
Ends Closed & Ground
Finish Zinc
Free Length 1.09 in
Inside Diameter 0.57 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 94 lbs/in
SKU B8-39CS
Solid Length 0.5 in
Suggested Max Deflection 0.34 in
Suggested Max Load 31 lbf
Total Coils 5.5
Wire Diameter 0.09 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B8-39
Ends Closed & Ground
Finish Zinc
Free Length 27.69 mm
Inside Diameter 14.48 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 16.46 N/mm
SKU B8-39CS
Solid Length 12.7 mm
Suggested Max Deflection 8.64 mm
Suggested Max Load 137.89 N
Total Coils 5.5
Wire Diameter 2.29 mm
The compression spring B8-39CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B8-39 compression spring design exhibits exceptional tensile strength and resilience.

The B8-39 design is manufactured with a free length of 1.09", with an outer diameter of 0.75", an inner diameter of 0.57", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 94 lbs/in.

The B8-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring B8-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
