Century Spring

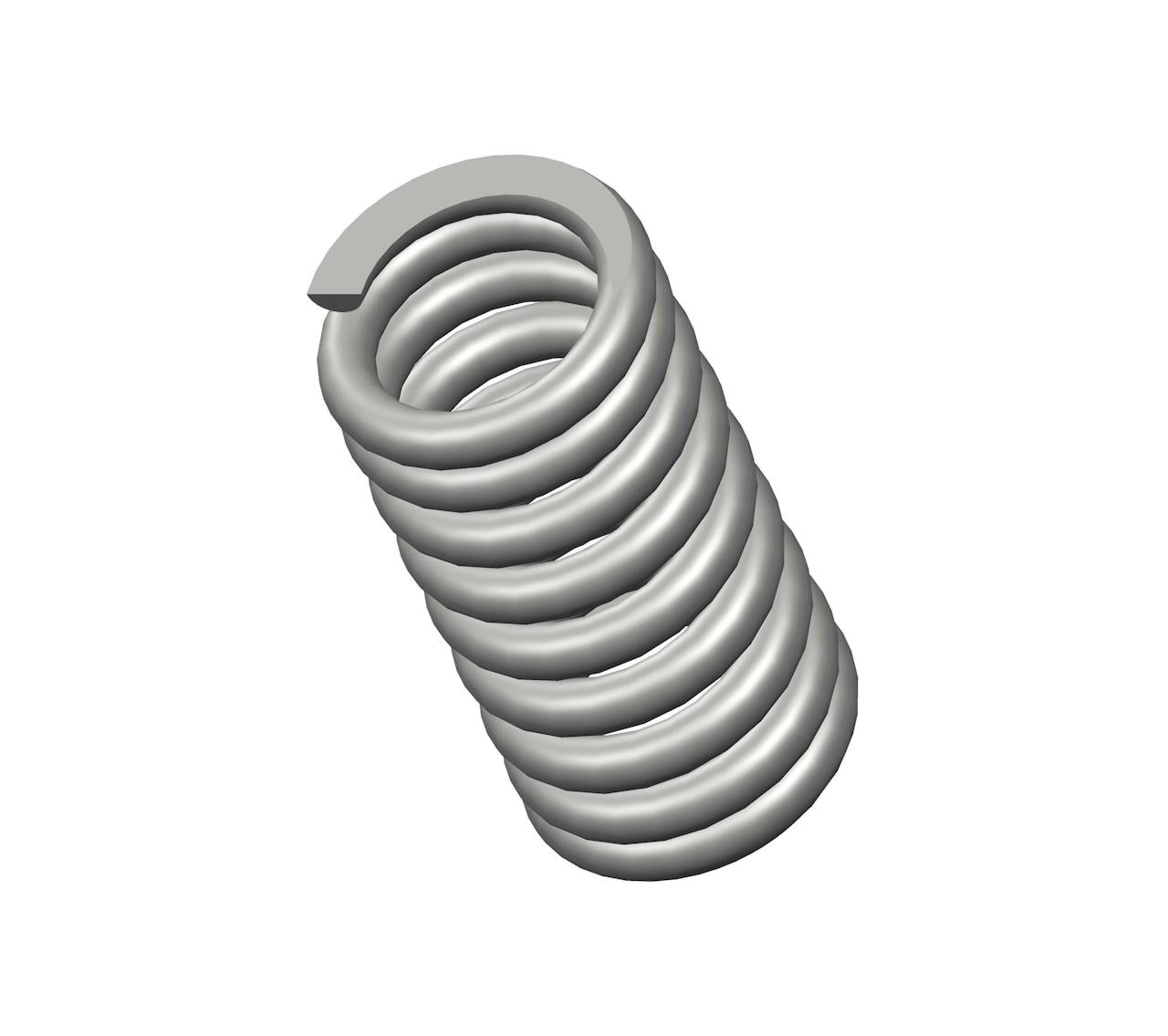

B8-37CS - 2.75" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 9 coils and closed & ground ends. This spring features an O.D. of 1.39", and an I.D. of 0.94".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B8-37
Ends Closed & Ground
Finish None
Free Length 2.75 in
Inside Diameter 0.94 in
Material Spring Steel
Outside Diameter 1.39 in
Part Type Standard
Rate 333 lbs/in
SKU B8-37CS
Solid Length 2.03 in
Suggested Max Deflection 0.65 in
Suggested Max Load 218 lbf
Total Coils 9
Wire Diameter 0.225 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B8-37
Ends Closed & Ground
Finish None
Free Length 69.85 mm
Inside Diameter 23.88 mm
Material Spring Steel
Outside Diameter 35.31 mm
Part Type Standard
Rate 58.31 N/mm
SKU B8-37CS
Solid Length 51.56 mm
Suggested Max Deflection 16.51 mm
Suggested Max Load 969.66 N
Total Coils 9
Wire Diameter 5.72 mm
The B8-37 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B8-37CS compression spring is designed with a free length of 1.53" total of 9.5 coils, and a rate of 99 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B8-37 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
