B8-29CS - 0.16" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

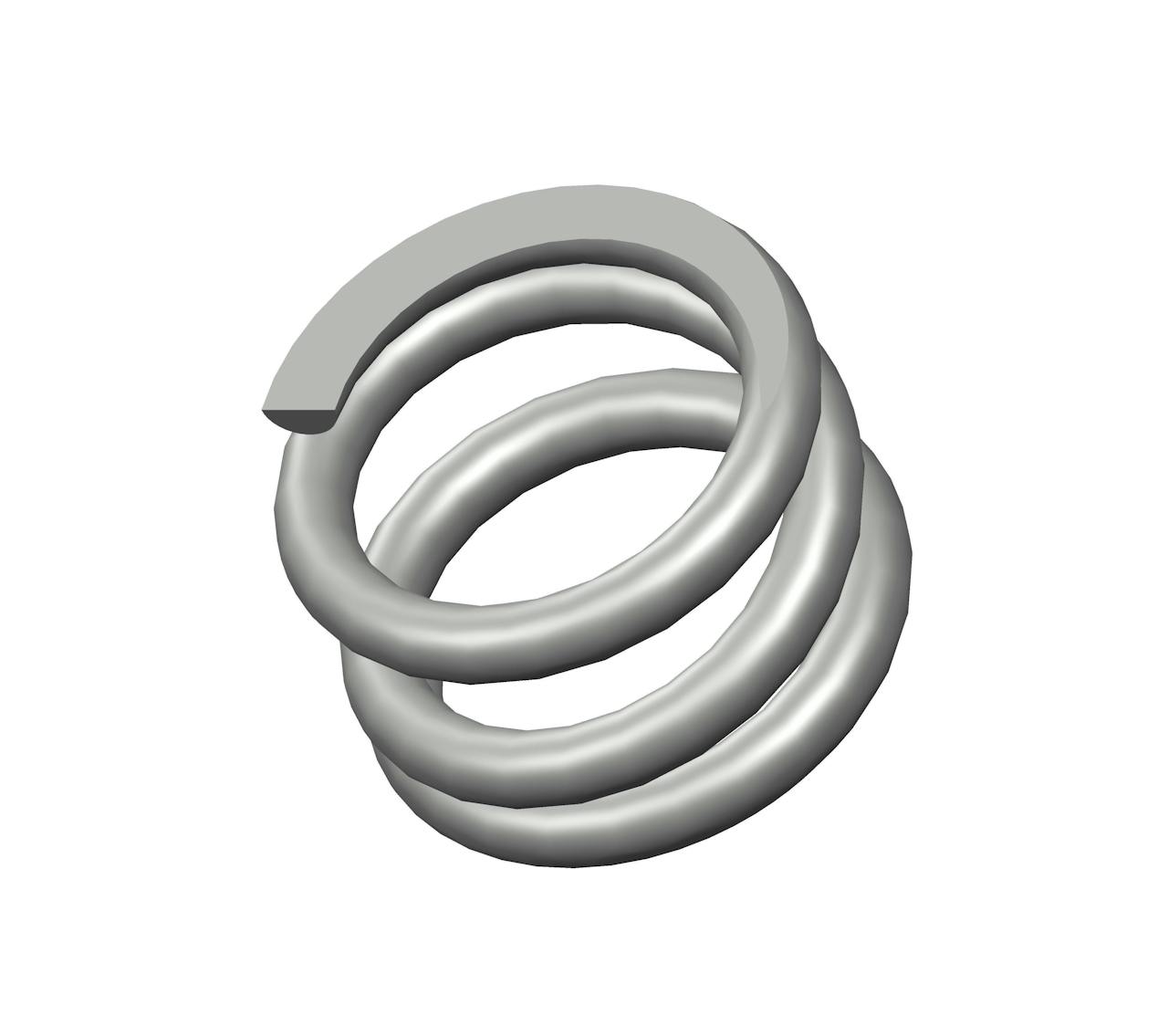

Compression spring manufactured from spring steel with 3 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.182".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-29 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.16 in |
| Inside Diameter | 0.182 in |
| Material | Spring Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 191 lbs/in |
| SKU | B8-29CS |
| Solid Length | 0.1 in |
| Suggested Max Deflection | 0.03 in |
| Suggested Max Load | 6.2 lbf |
| Total Coils | 3 |
| Wire Diameter | 0.034 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B8-29 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 4.06 mm |
| Inside Diameter | 4.62 mm |
| Material | Spring Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 33.44 N/mm |
| SKU | B8-29CS |
| Solid Length | 2.54 mm |
| Suggested Max Deflection | 0.76 mm |
| Suggested Max Load | 27.58 N |
| Total Coils | 3 |
| Wire Diameter | 0.86 mm |
The compression spring B8-29CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the B8-29 compression spring design exhibits exceptional tensile strength and resilience.
The B8-29 design is manufactured with a free length of 0.16", with an outer diameter of 0.25", an inner diameter of 0.182", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 191 lbs/in.
The B8-29CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-29 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The B8-29 design is manufactured with a free length of 0.16", with an outer diameter of 0.25", an inner diameter of 0.182", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 191 lbs/in.
The B8-29CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring B8-29 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
