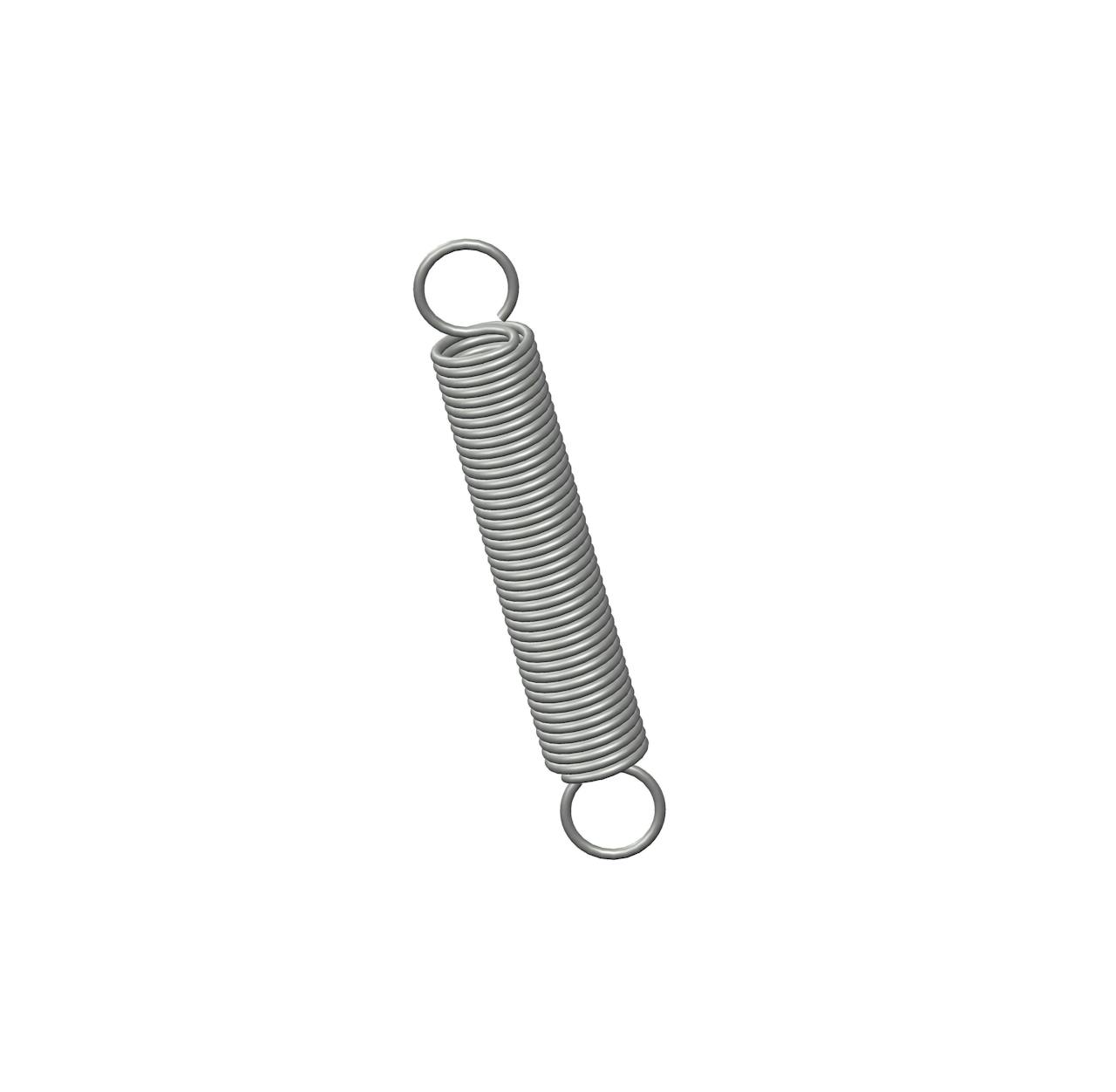

B7-59CS - 2.25 Inch Spring Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Spring Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 0.8 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B7-59 |
| Ends | Full Loop |
| Finish | Zinc |
| Initial Tension | 0.8 lb |
| Length | 2.25 in |
| Material | Spring Steel |
| Outside Diameter | 0.359 in |
| Part Type | Standard |
| Rate | 1.9 lbs/in |
| SKU | B7-59CS |
| Sugg Max Deflection | 2.5 in |
| Sugg Max Load | 5.4 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | B7-59 |
| Ends | Full Loop |
| Finish | Zinc |
| Initial Tension | 0.36 kg |
| Length | 57.15 mm |
| Material | Spring Steel |
| Outside Diameter | 9.12 mm |
| Part Type | Standard |
| Rate | 0.33 N/mm |
| SKU | B7-59CS |
| Sugg Max Deflection | 63.5 mm |
| Sugg Max Load | 24.02 N |
| Wind Direction | Left |
| Wire Diameter | 0.97 mm |
